Trailer Brake Control (TBC) Module: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the 2 TBC module electrical connectors.
    2. NOTE: The locking tab on the top of the TBC module must be aligned with the support bracket inside the instrument panel for correct module installation and retention.

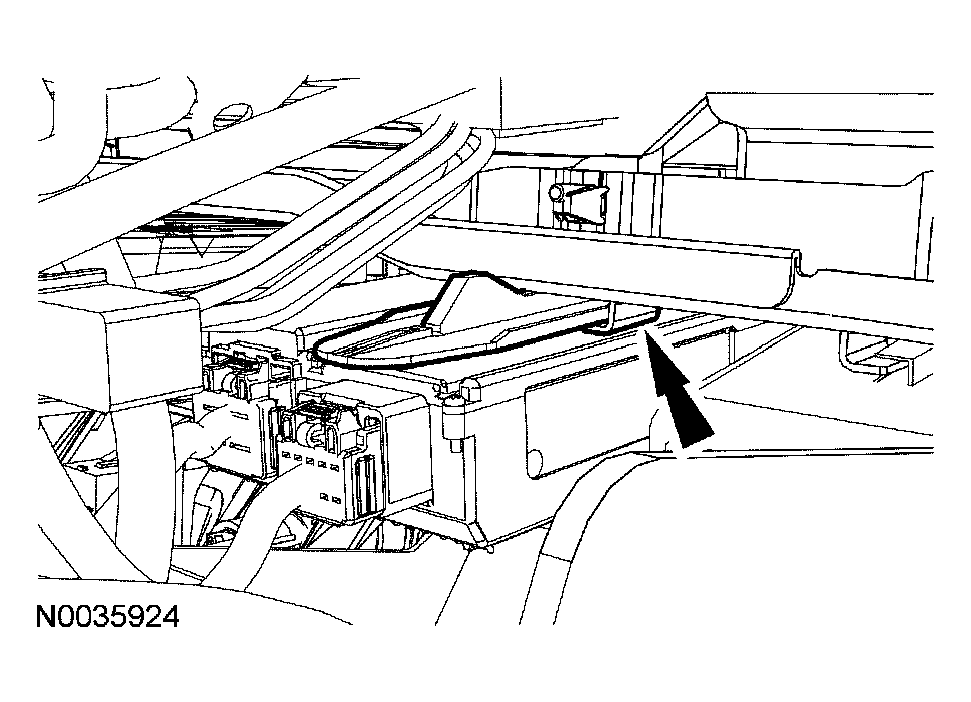

    Fig 1: Aligning TBC Module Locking Tab With Support Bracket Inside Instrument Panel
    G03919478Courtesy of FORD MOTOR CO.
  2. Align the TBC module locking tab with the support bracket inside the instrument panel and install the module.
  3. Install the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL -- CENTER FINISH PANEL .
