Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the brake pedal position (BPP) switch electrical connector and remove the cover.
    Fig 1: Disconnecting Brake Pedal Position (BPP) Switch Electrical Connector And Removing Cover
    G03911072Courtesy of FORD MOTOR CO.
  3. Remove the retaining pin and slide the BPP off the brake pedal.

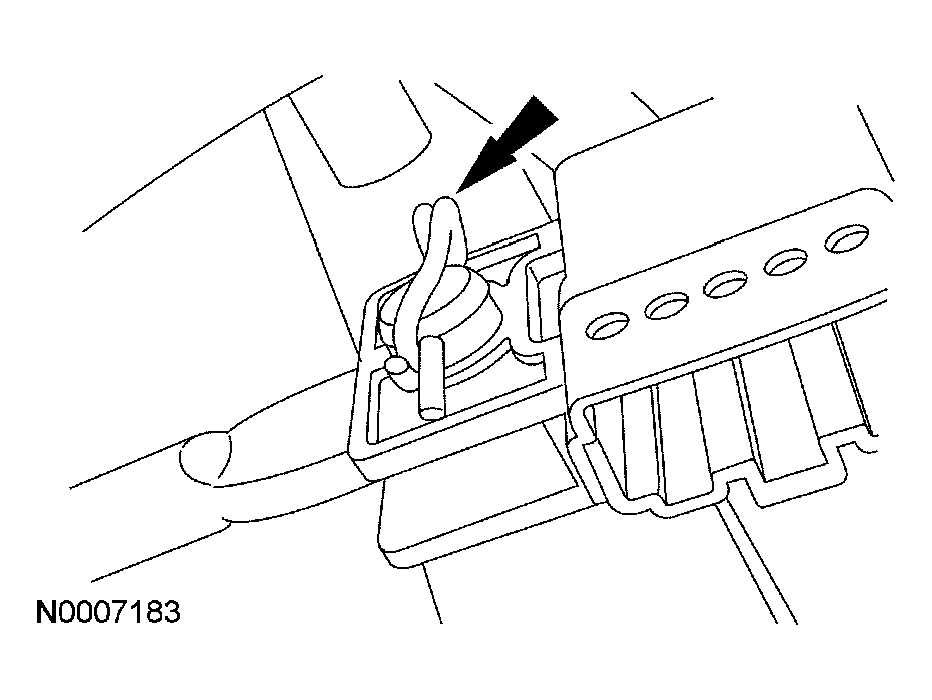

    Fig 2: Removing Retaining Pin And Slide BPP Switch Off Brake Pedal
    G03911073Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
