Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT or BATTERY DISCONNECT - DUAL .
- Remove the bolt and the battery hold down clamp.

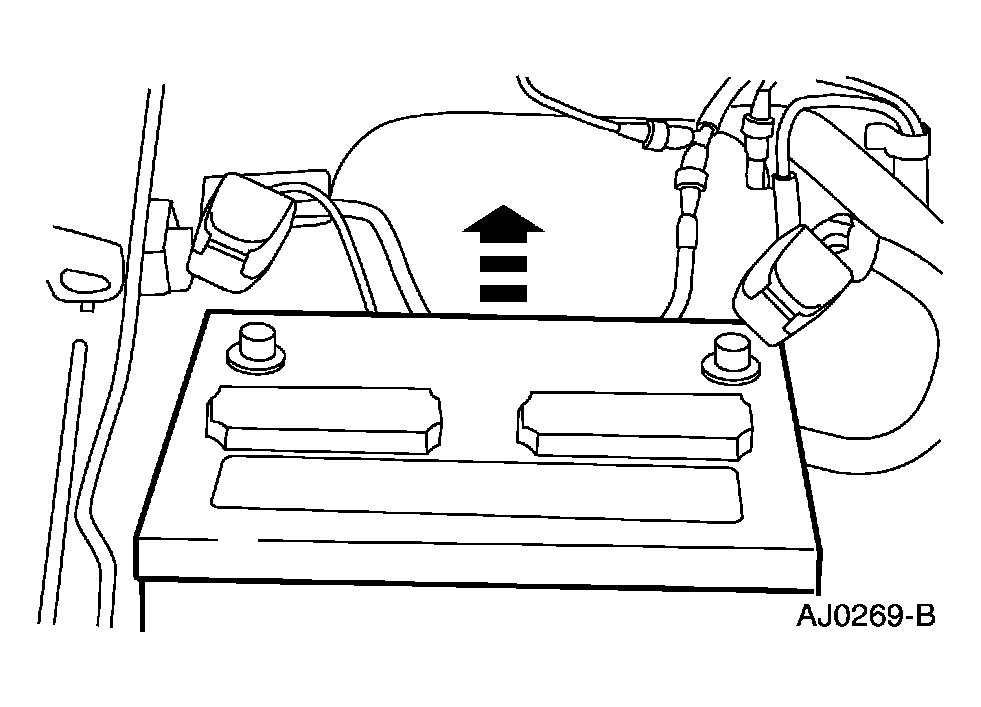

- Remove the battery.
- If equipped, remove the battery cover.
- To install, reverse the removal procedure.
WARNING:
When lifting a battery, excessive pressure on the end walls could cause acid to spew through the vent caps, resulting in personal injury. Lift with a battery carrier or with hands on opposite corners. Failure to follow these instructions may result in personal injury.
CAUTION:
Be sure the battery cover is reinstalled to avoid premature battery failure.
