Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove child safety seat tether anchor. For additional information, refer to SAFETY BELT SYSTEM .
  2. If equipped, remove the utility trays and jack assembly.

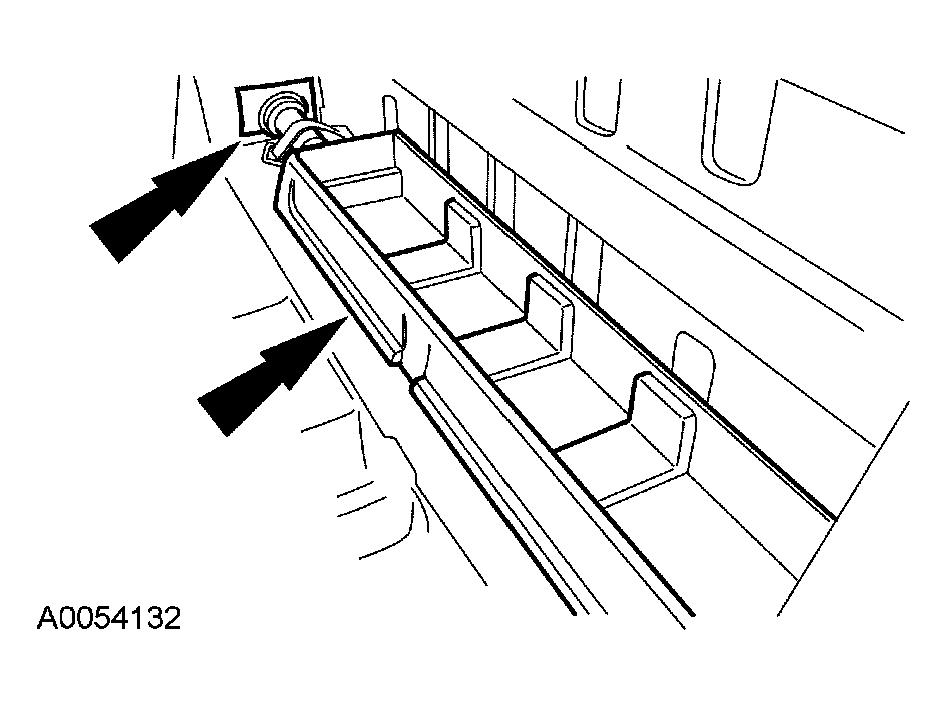

    Fig 1: Removing Trays And Jack Assembly
    G03925269Courtesy of FORD MOTOR CO.
  3. Remove the left and right rear corner trim panels. For additional information, refer to TRIM PANEL - REAR CORNER, REGULAR CAB  in this article.
  4. Remove the four push pins.
    Fig 2: Removing Four Push Pins
    G03925270Courtesy of FORD MOTOR CO.
  5. Remove the trim cover.
  6. To install, reverse the removal procedure.
