Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    Vehicles equipped with adjustable pedals

  1. Disconnect the adjustable brake pedal drive cable.
    Fig 1: Disconnecting Adjustable Brake Pedal Drive Cable
    G03919336Courtesy of FORD MOTOR CO.

    2. Vehicles with fixed pedals

  2. Remove the stoplamp switch redundant self-locking clip and the self-locking clip.

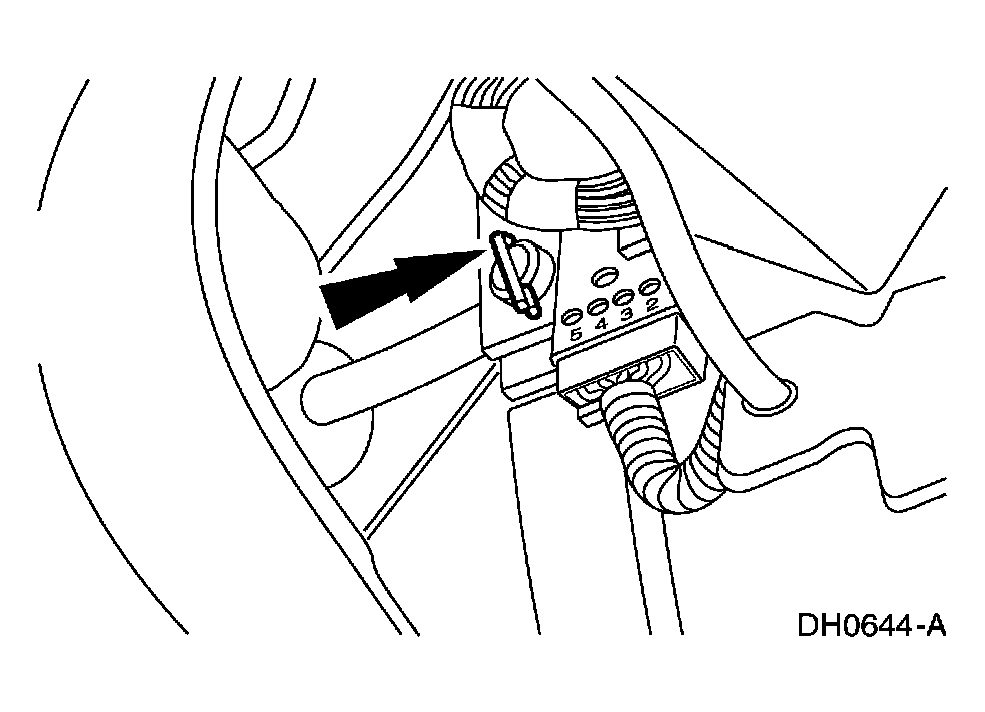

    Fig 2: Locating Redundant Self-Locking Clip Cover And Self-Locking Clip
    G03904855Courtesy of FORD MOTOR CO.
  3. Slide the stoplamp switch and booster push rod from the brake pedal pin.

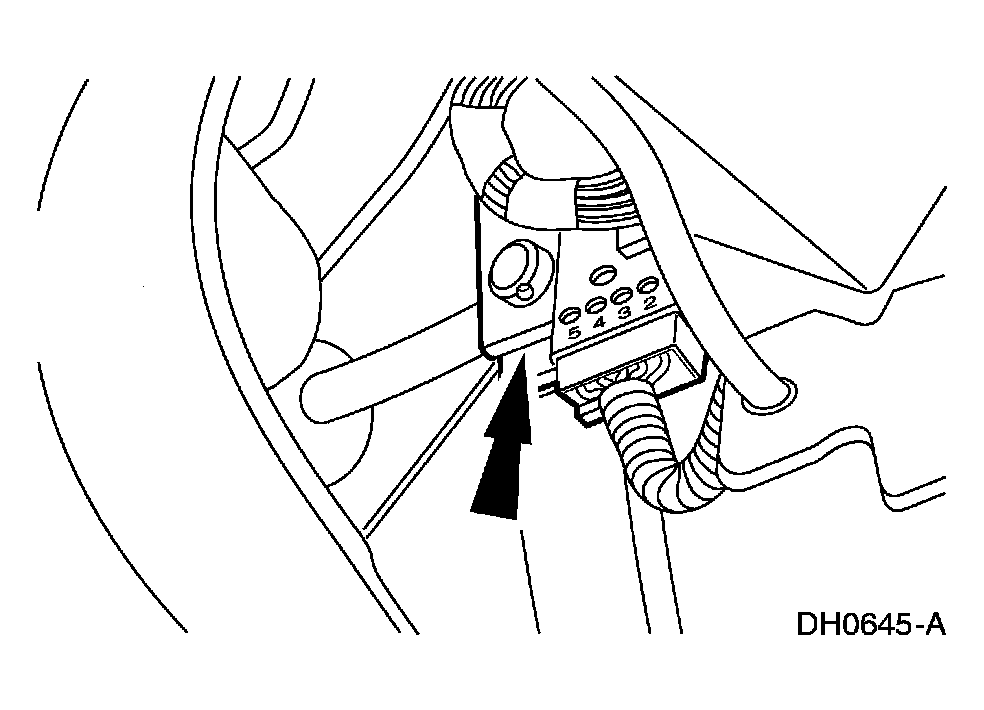

    Fig 3: Locating BPP Switch
    G03904856Courtesy of FORD MOTOR CO.

    4. All vehicles

  4. Remove the 6 brake pedal and bracket retaining nuts.

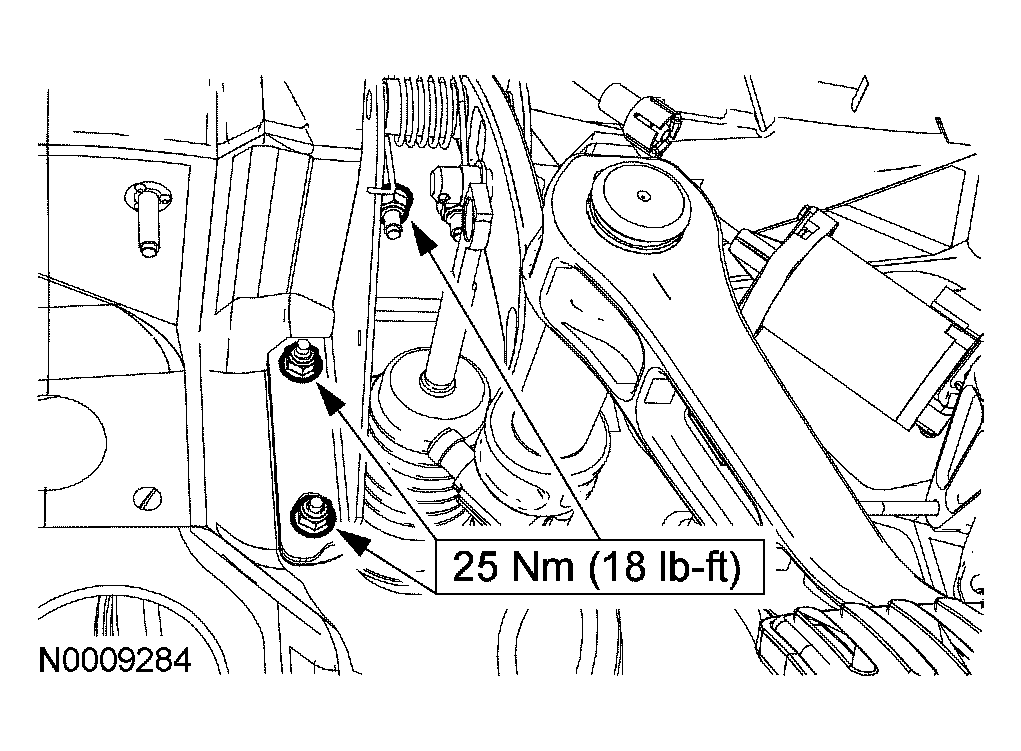

    Fig 4: Removing 6 Brake Pedal And Bracket Retaining Nuts
    G03919425Courtesy of FORD MOTOR CO.
  5. Position the brake booster assembly forward enough to allow the brake pedal bracket to clear the booster studs.
  6. Remove the brake pedal and bracket.
  7. To install, reverse the removal procedure.
