Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Disconnect the fluid level sensor connector.
  2. If equipped, disconnect the brake pressure switch and the trailer brake control transducer electrical connectors.

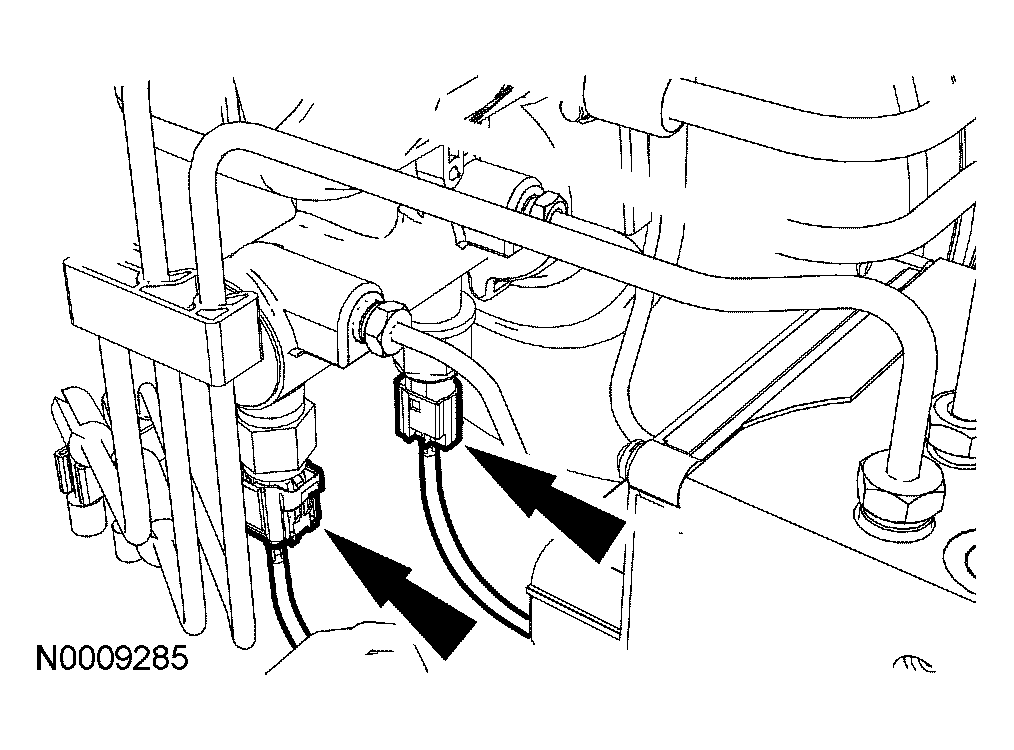

    Fig 1: Disconnecting Brake Pressure Switch And Trailer Brake Control Transducer Electrical Connectors
    G03919426Courtesy of FORD MOTOR CO.
  3. Disconnect the brake tubes.

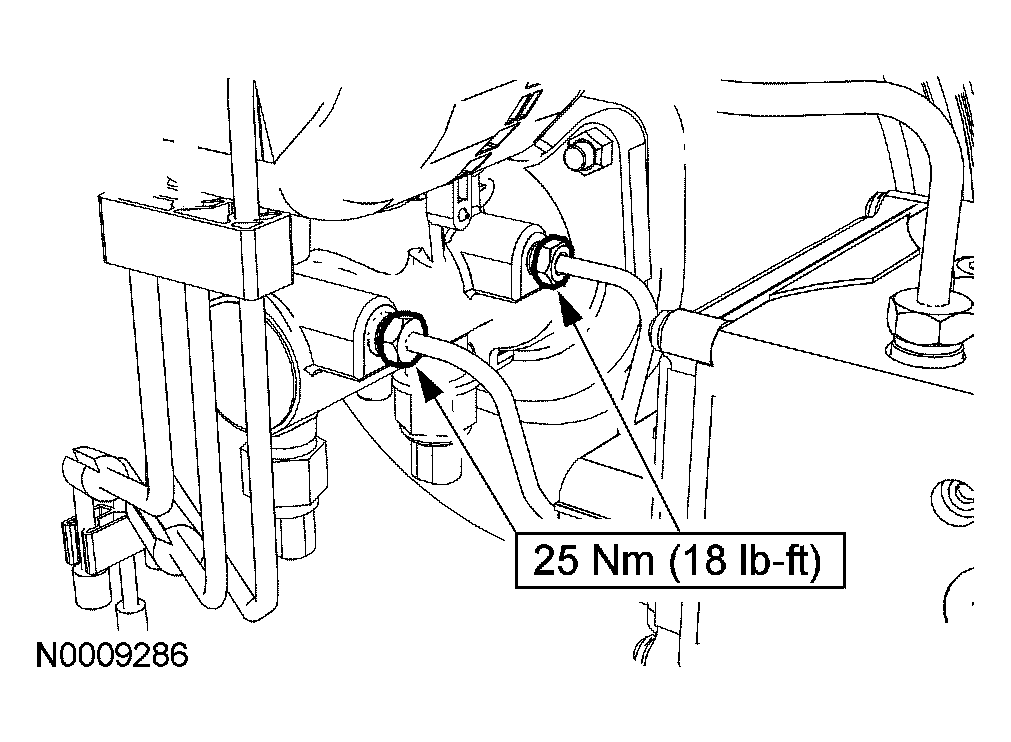

    Fig 2: Disconnecting Brake Tubes
    G03919427Courtesy of FORD MOTOR CO.

    4. Vehicles with vacuum booster

  4. Remove the brake master cylinder nuts and the brake master cylinder.

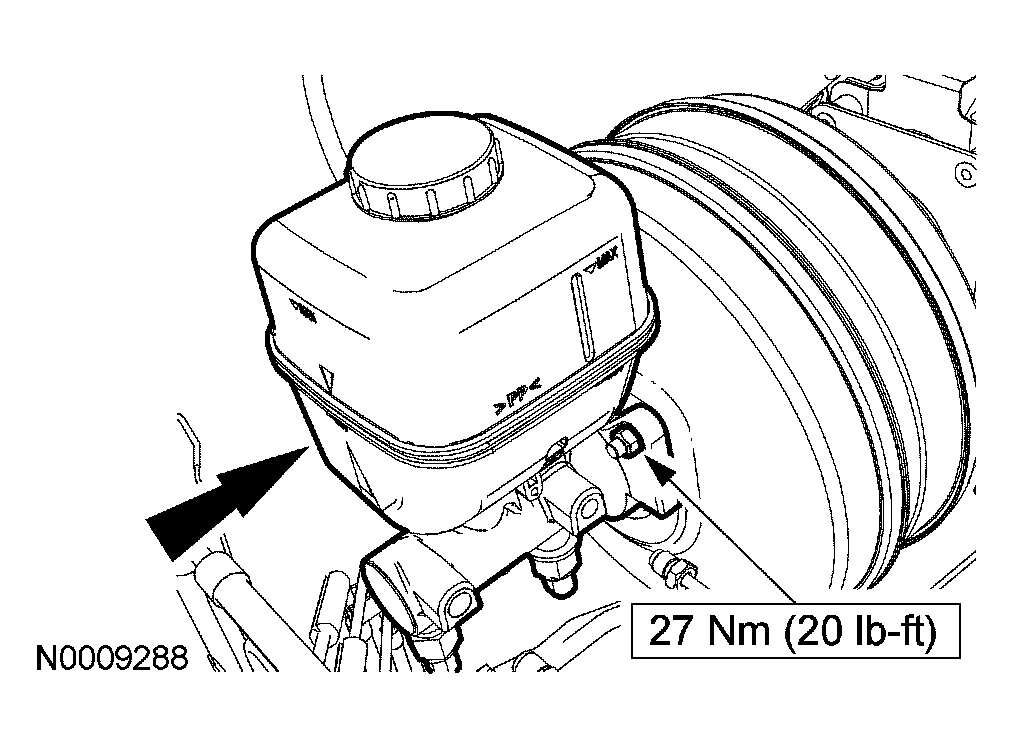

    Fig 3: Removing Brake Master Cylinder Nuts And Brake Master Cylinder
    G03904880Courtesy of FORD MOTOR CO.

    5. Vehicles with Hydro-Boost®

  5. Remove the power steering tube bracket nuts and position the bracket aside.

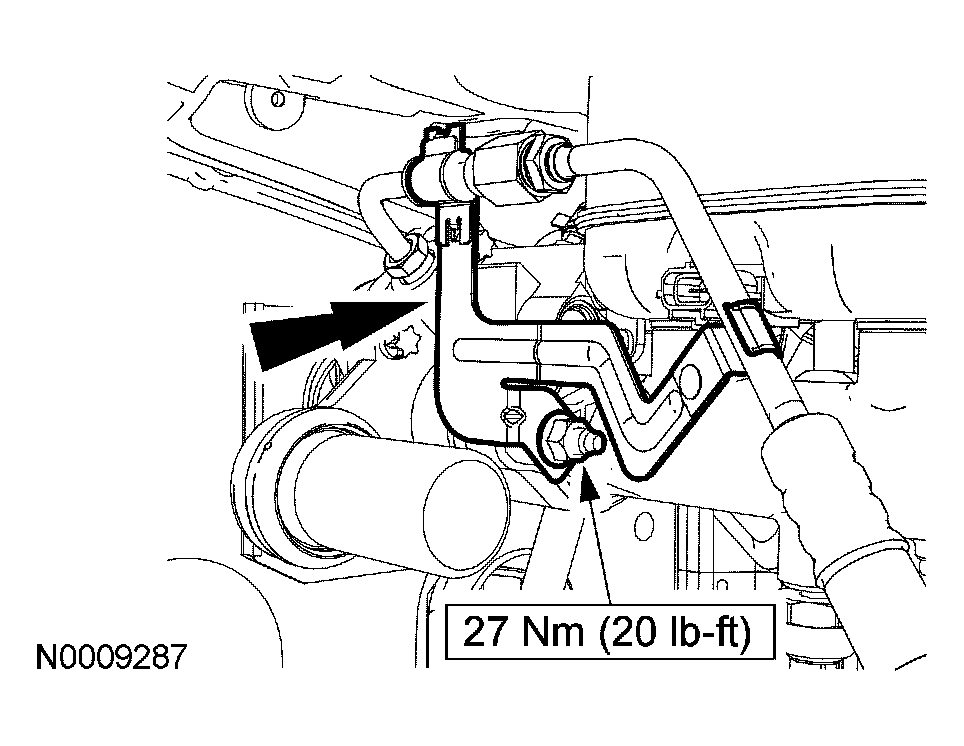

    Fig 4: Removing Power Steering Tube Bracket Nuts And Position Bracket Aside
    G03919429Courtesy of FORD MOTOR CO.
  6. Remove the brake master cylinder.

    7. All vehicles

  7. To install, reverse the removal procedure.
