Oil Pump: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  3. Remove the 3 bolts and the oil pump.

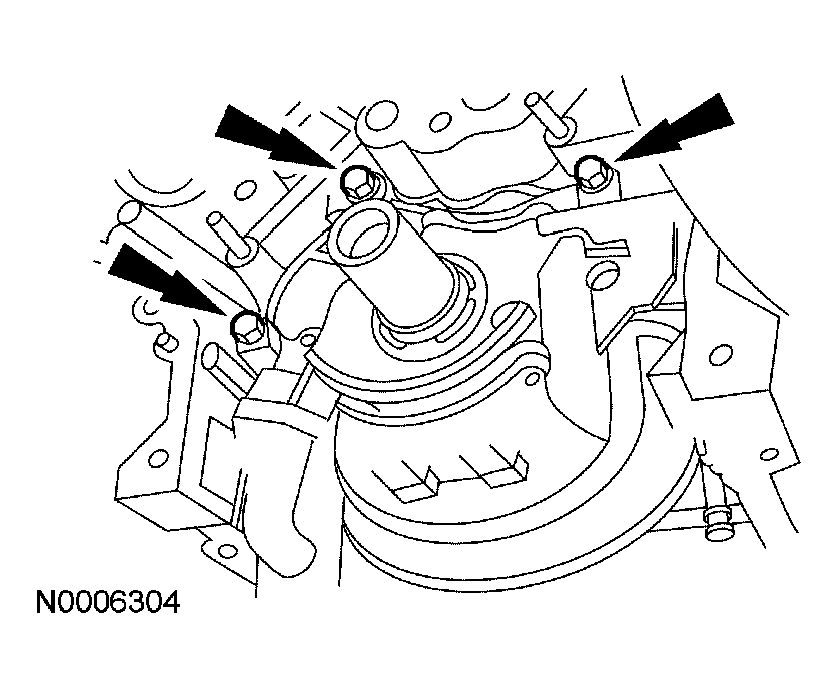

    Fig 1: Removing Oil Pump Bolts
    G03920119Courtesy of FORD MOTOR CO.
