Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

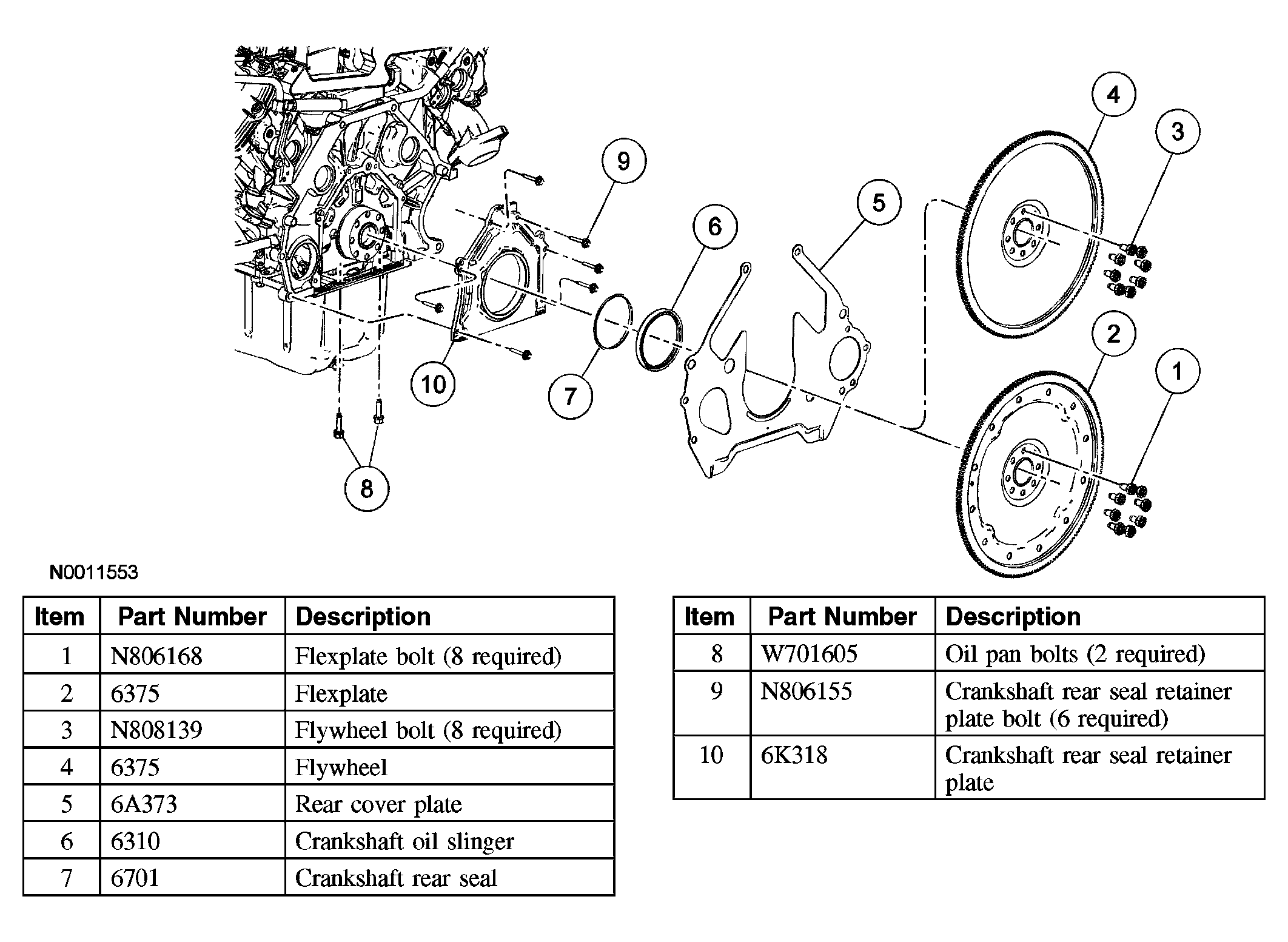

Fig 1: Exploded View Of Flywheel/Flexplate And Crankshaft Rear Seal
G03920140Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the .
