Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the engine cooling fan shroud. For additional information, refer to COOLING FAN -- BLADE, CLUTCH AND SHROUD .
  3. Rotate the tensioner clockwise and remove the accessory drive belt.

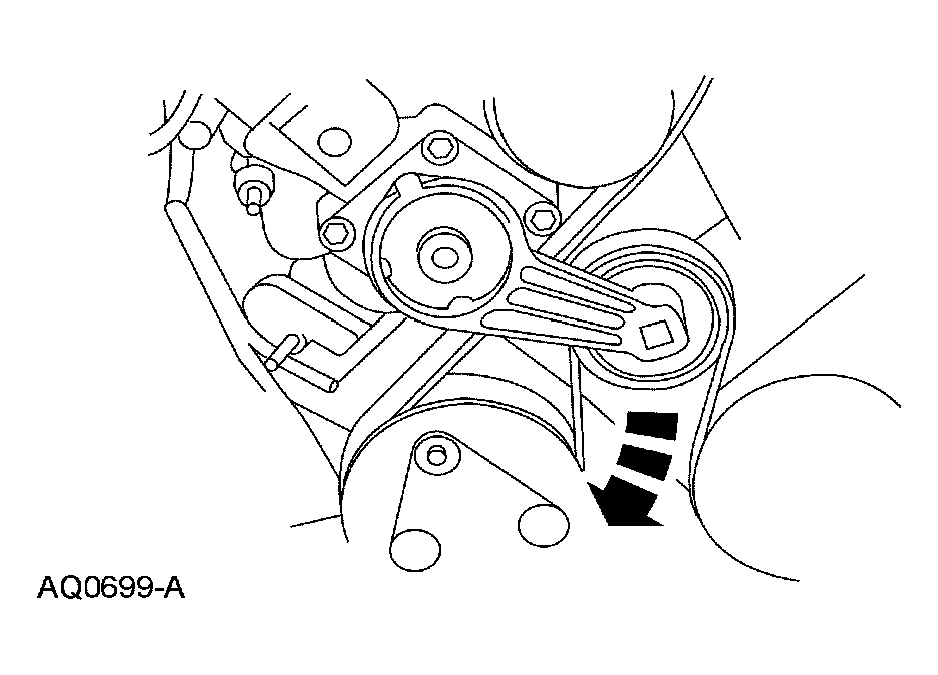

    Fig 1: Rotating Tensioner Clockwise
    G03919875Courtesy of FORD MOTOR CO.
  4. Remove the crankshaft pulley bolt and washer.
    • Discard the crankshaft pulley bolt.
  5. Using the special tool, remove the crankshaft pulley.

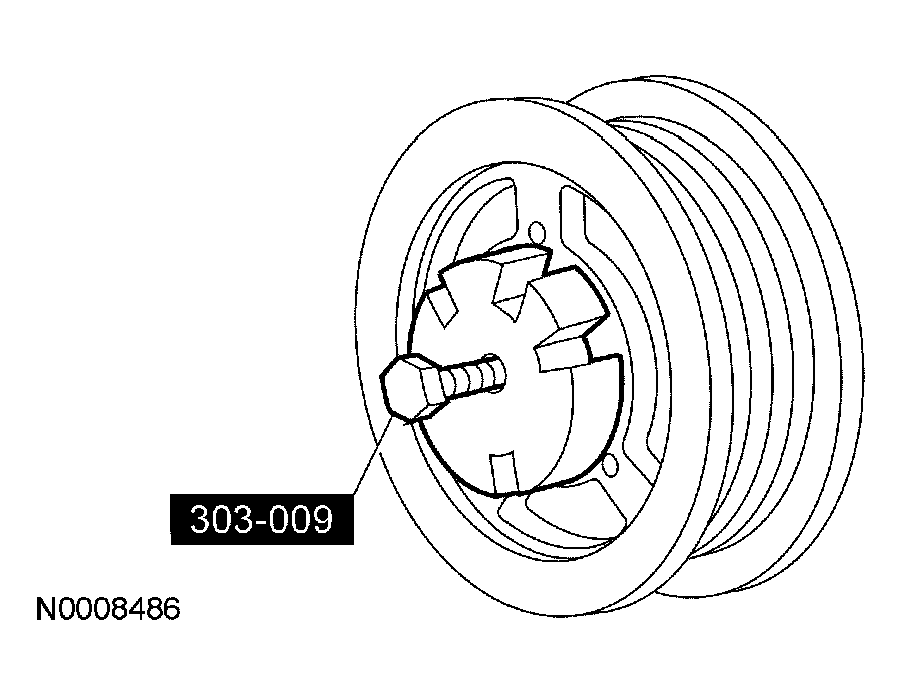

    Fig 2: Removing Crankshaft Pulley Using Special Tool
    G03919876Courtesy of FORD MOTOR CO.
