Axle Shaft Seal: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel hub. For additional information, refer to WHEEL HUB .
  2. Using a drift, drive the axle shaft main seal out of the wheel knuckle.
    Fig 1: Removing Axle Shaft Main Seal
    G03904170Courtesy of FORD MOTOR CO.
  3. Remove the axle shaft and main seal.

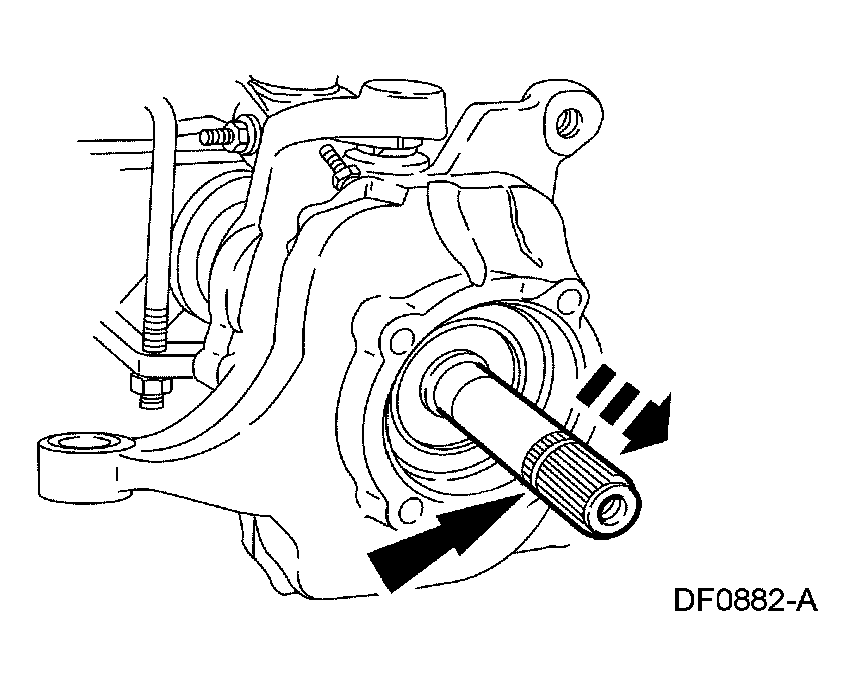

    Fig 2: Removing Axle Shaft And Main Seal
    G03904171Courtesy of FORD MOTOR CO.
  4. Remove the axle shaft seal.
    Fig 3: Removing Axle Shaft Seal
    G03919098Courtesy of FORD MOTOR CO.
