Dana Model 80, Full-Floating Rear Axle, Disassembled View

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

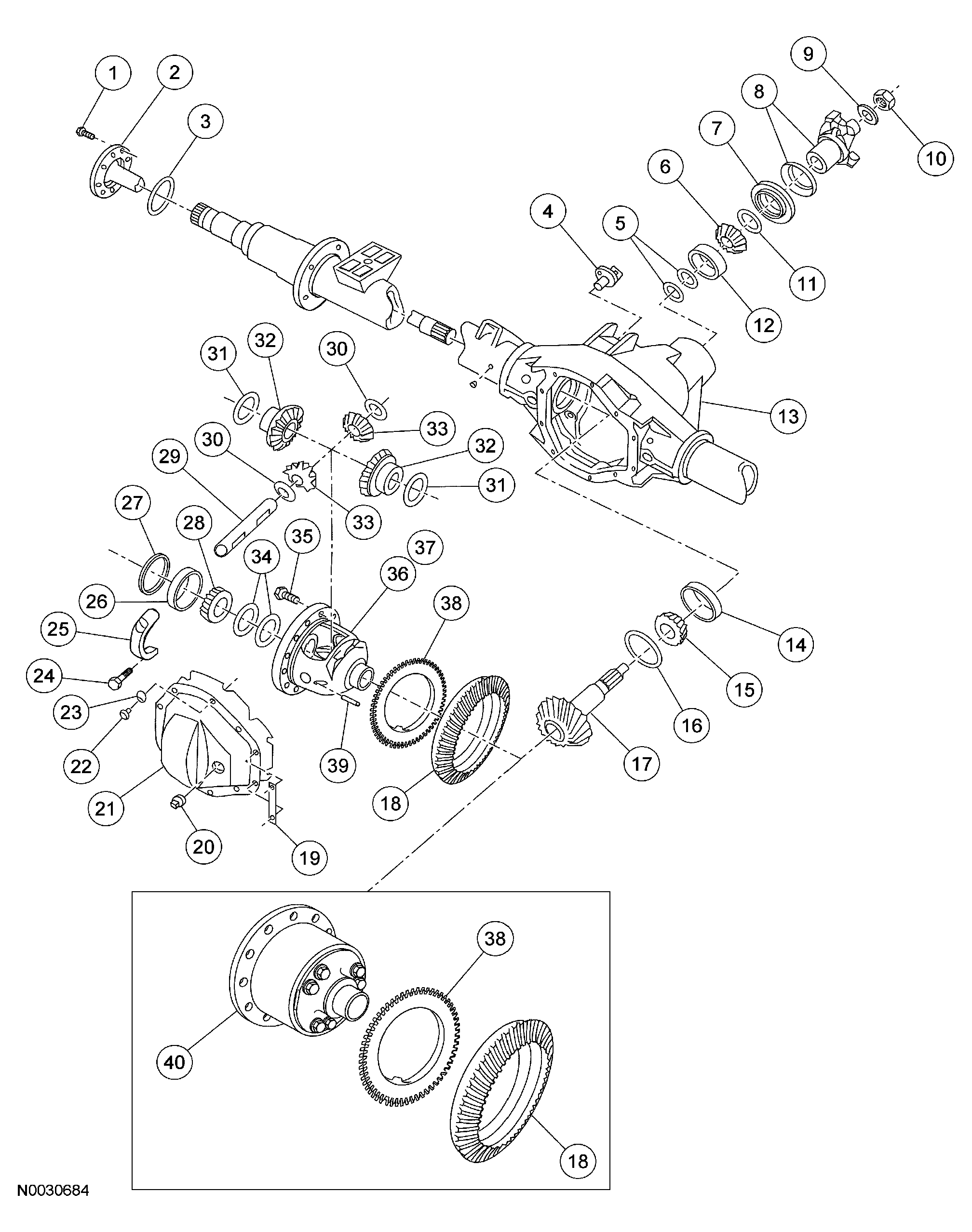

Fig 1: Exploded View Of Full-Floating Rear Axle (Dana Model 80) (1 Of 2)

Courtesy of FORD MOTOR CO.

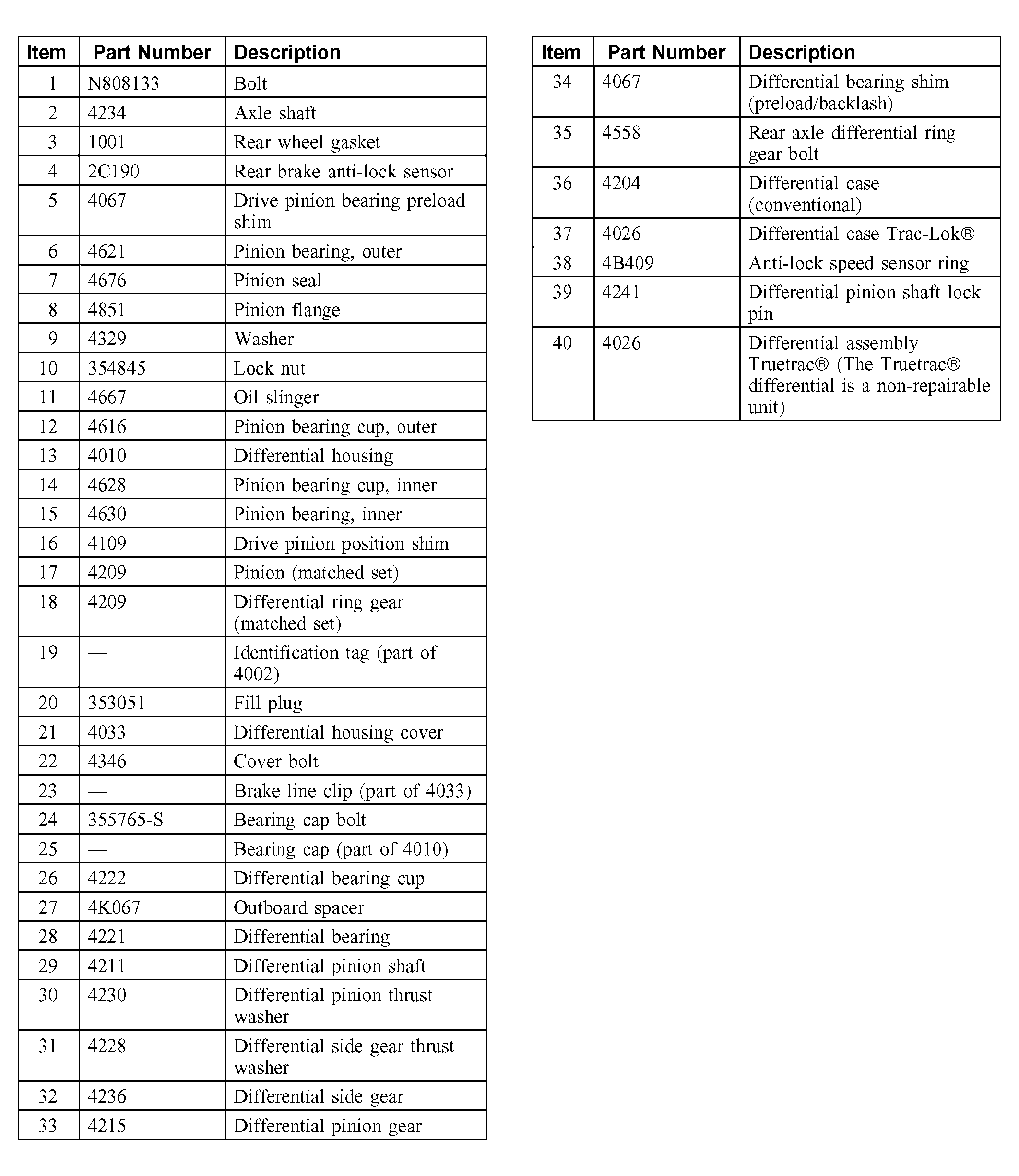

Fig 2: Exploded View Of Full-Floating Rear Axle (Dana Model 80) (2 Of 2)

Courtesy of FORD MOTOR CO.

NOTE: Unless noted, the procedures apply to the conventional differential, Trac-Lok® differential and Truetrac® differential, though most of the illustrations used in the procedures show the conventional differential.

The Model 80 rear axle features the following:

a hypoid design differential ring gear and pinion with the centerline of the pinion set below the centerline of the differential ring gear
full floating axle shafts
an integral-type differential housing consisting of a cast center section with 2 steel tubes
a stamped differential housing cover for F-350 DRW
a cast aluminum differential housing cover for F-450 DRW
a conventional differential assembly for F250
a conventional differential assembly or a Trac-Lok® limited slip differential assembly for F350
a conventional differential assembly or a Truetrac® limited slip differential assembly for F450
a cast aluminum differential housing cover for F-350 DRW HD trailer tow package.
