Dana Model 80 Full-Floating Rear Drive Axle

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

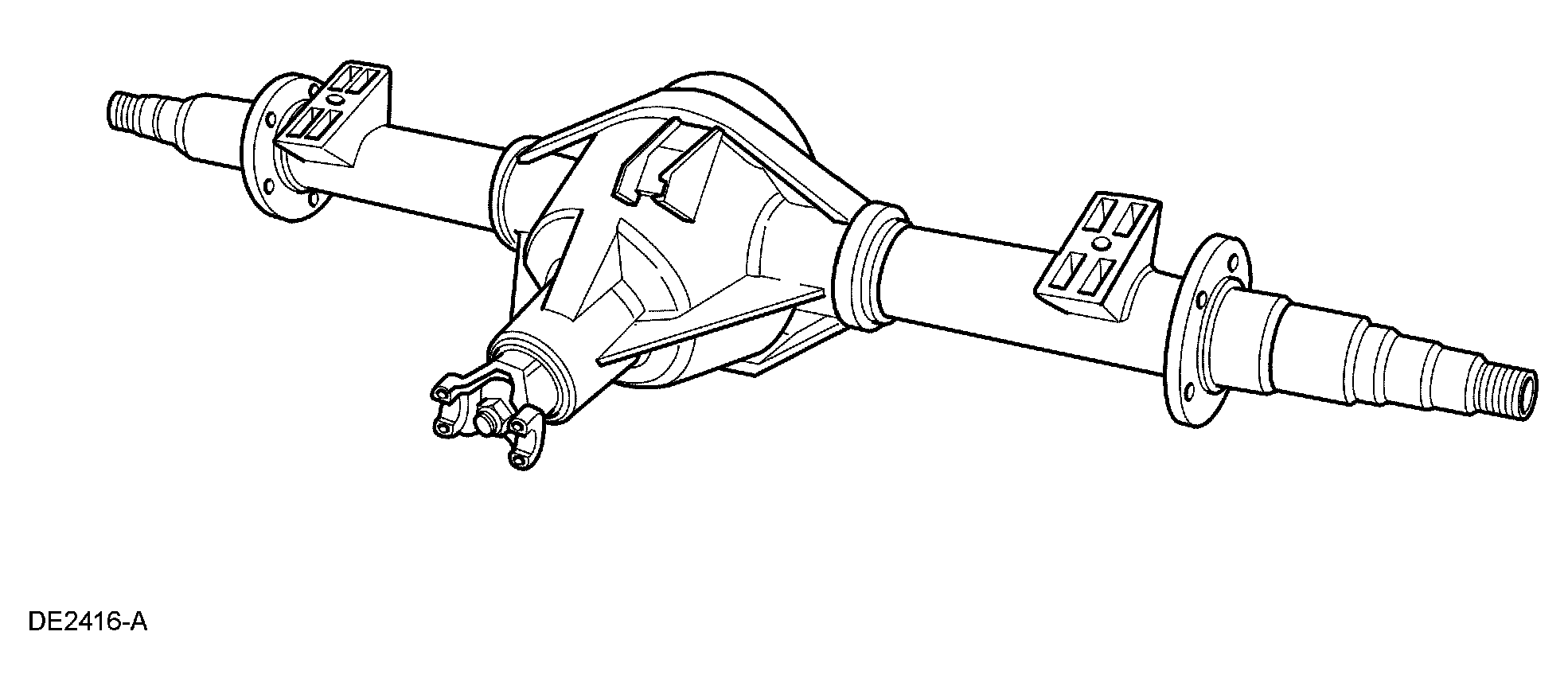

Fig 1: Identifying Dana Model 80 Full-Floating Rear Drive Axle
G03918192Courtesy of FORD MOTOR CO.
