Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

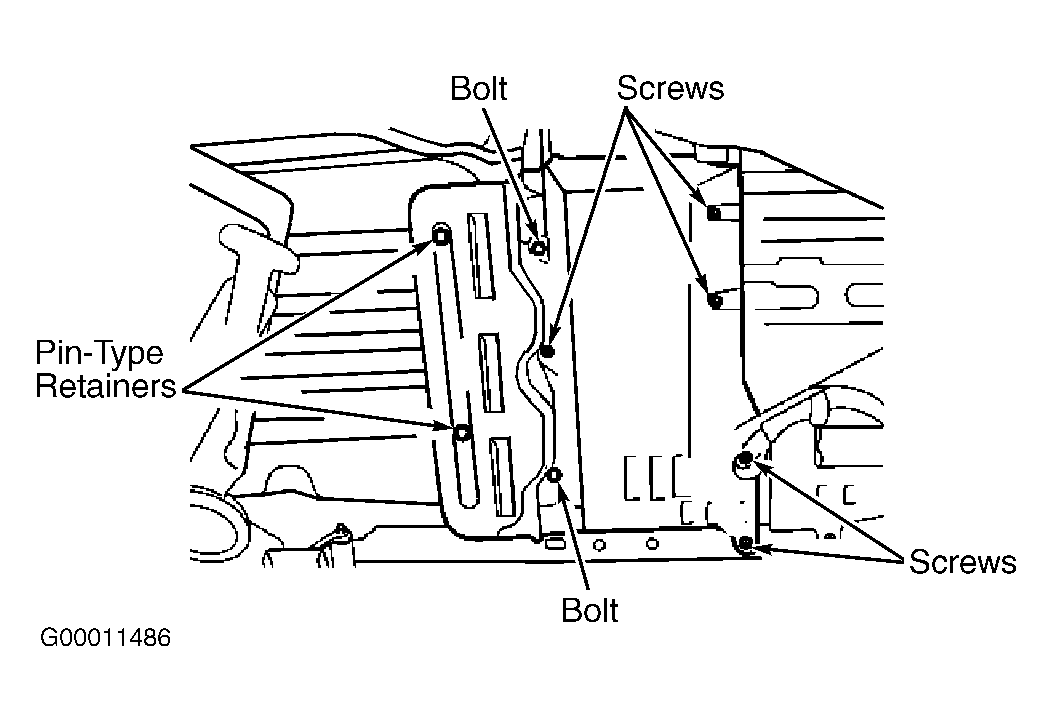

Disconnect negative battery cable. Raise and support vehicle. Remove pin-type retainers, bolts and screws and remove EVAP emissions canister shield. See Fig 1. To install, reverse removal procedure.
