Description And Operation: Clutch

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

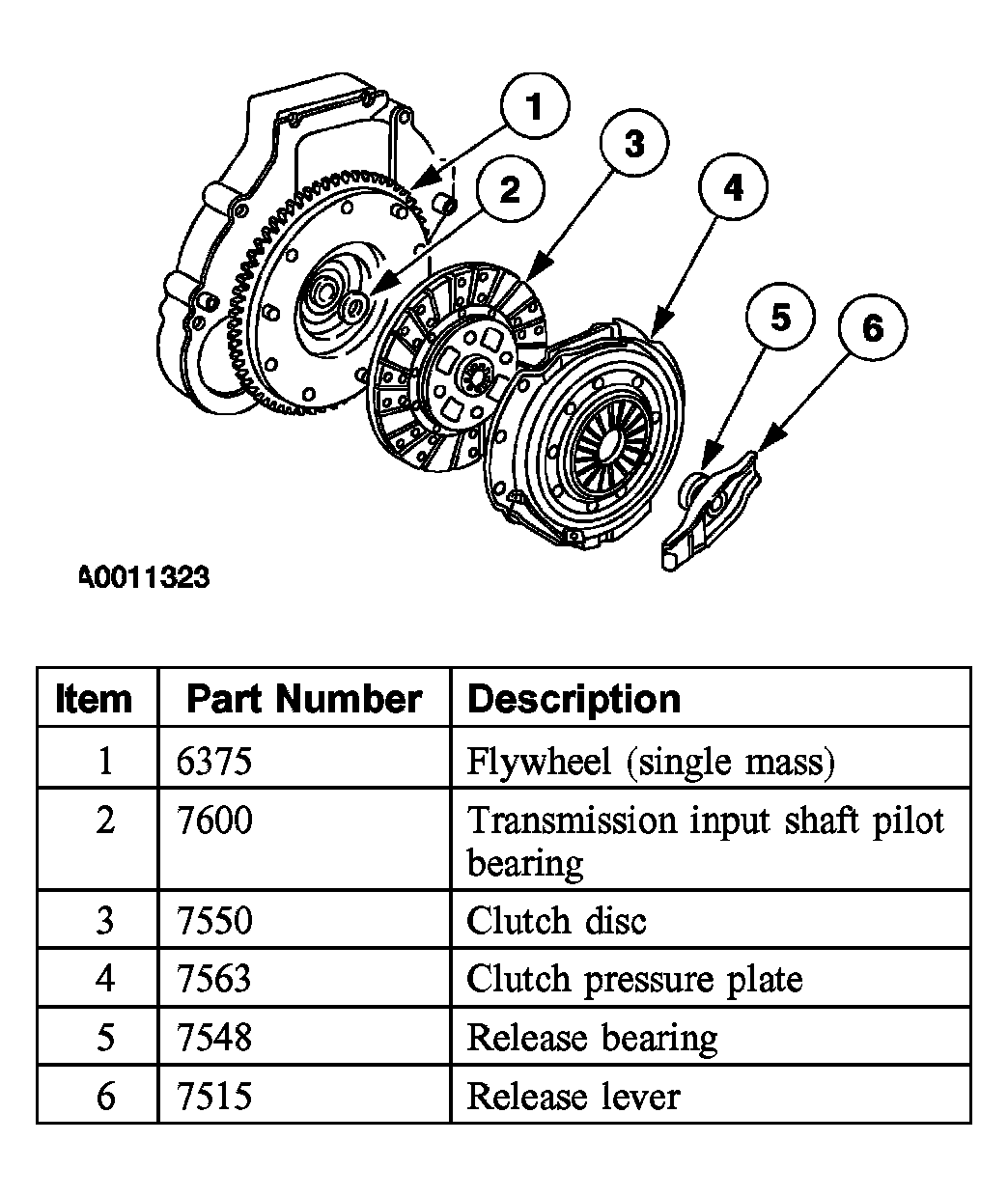

Fig 1: Identifying Clutch Components (5.4L, 6.0L, 6.8L Engines)
G03923333Courtesy of FORD MOTOR CO.
