Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  3. Remove the lug wrench.
  4. Vehicles equipped with auxiliary climate control

  5. Disconnect the auxiliary line fitting.
    Fig 1: Auxiliary Line Fitting - With Torque Specification
    G03910523Courtesy of FORD MOTOR CO.
  6. All vehicles

  7. Disconnect the manifold and tube fitting at the suction accumulator.
    • Discard the O-ring seals.
      Fig 2: Identifying Suction Line Retainer At Accumulator
      G03905983Courtesy of FORD MOTOR CO.
  8. Remove the tube clamp.
    Fig 3: Removing Tube Clamp
    G03910536Courtesy of FORD MOTOR CO.
  9. Remove the pin-type retainers and the sight shield.
    Fig 4: Identifying Pin-Type Retainers
    G03899450Courtesy of FORD MOTOR CO.
  10. Disconnect the A/C condenser core inlet line.
    Fig 5: Disconnecting A/C Condenser Core Inlet Line
    G03910538Courtesy of FORD MOTOR CO.
  11. Disconnect the pressure cutoff switch electrical connector.
    Fig 6: Disconnecting Pressure Cutoff Switch Electrical Connector
    G03910539Courtesy of FORD MOTOR CO.
  12. 4x4 vehicles

  13. Loosen the A/C manifold and tube bolt and remove the manifold and tube assembly.
    • Discard the O-ring seals.

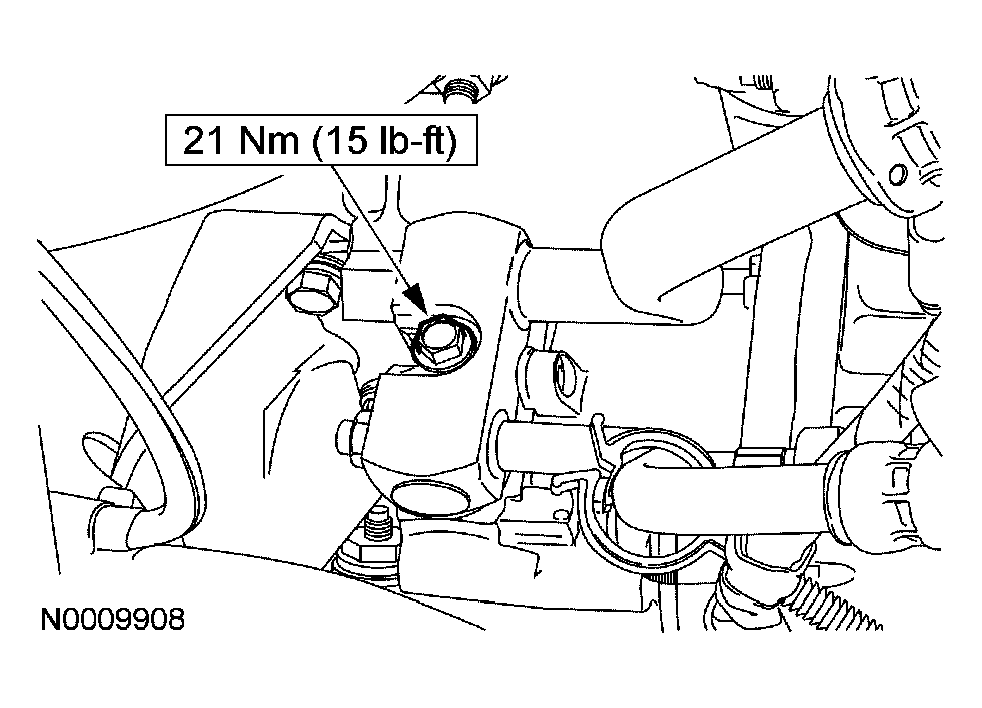

      Fig 7: Loosening A/C Manifold And Tube Bolt And Removing Manifold And Tube Assembly
      G03910540Courtesy of FORD MOTOR CO.
  14. 4x2 vehicles

  15. Loosen the A/C manifold and tube bolt and remove the manifold and tube assembly.
    Fig 8: Loosening A/C Manifold And Tube Bolt And Removing Manifold And Tube Assembly
    G03910540Courtesy of FORD MOTOR CO.
  16. Remove the pressure cutoff/dual function pressure switch.
    Fig 9: Removing Pressure Cutoff/Dual Function Pressure Switch
    G03910542Courtesy of FORD MOTOR CO.
  17. To install, reverse the removal procedure.
  18. Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
