Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed compressor or damage to the suction accumulator.
- Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

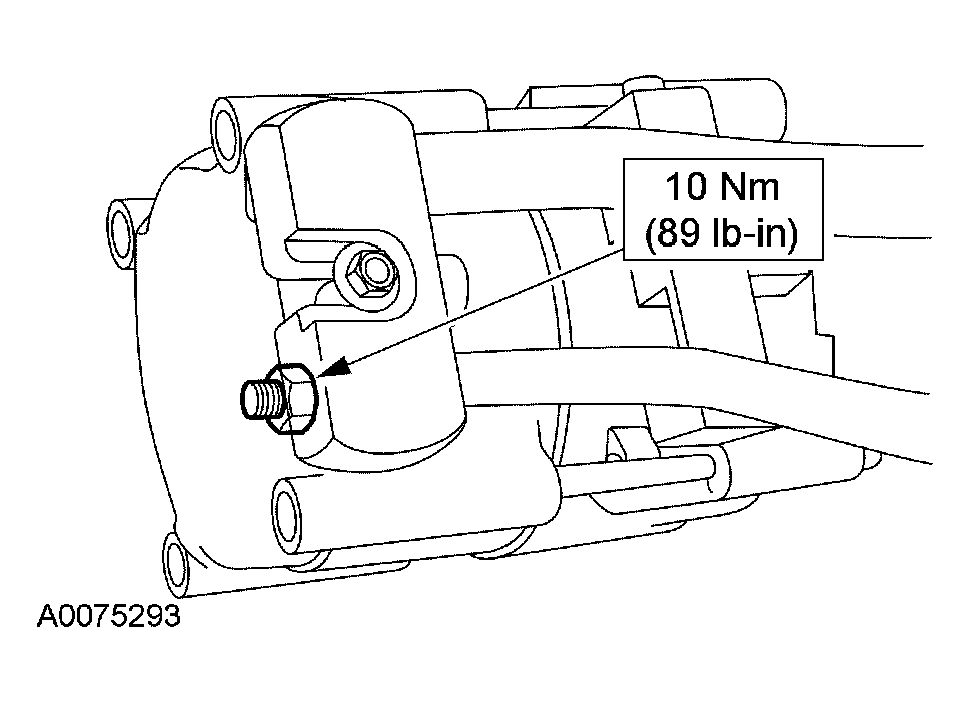

- Remove the pressure relief valve.
- To install, reverse the removal procedure.
- Install a new O-ring seal.
- Lubricate the refrigerant system with the correct amount of clean mineral oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
- Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
