Tube-O Fitting
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

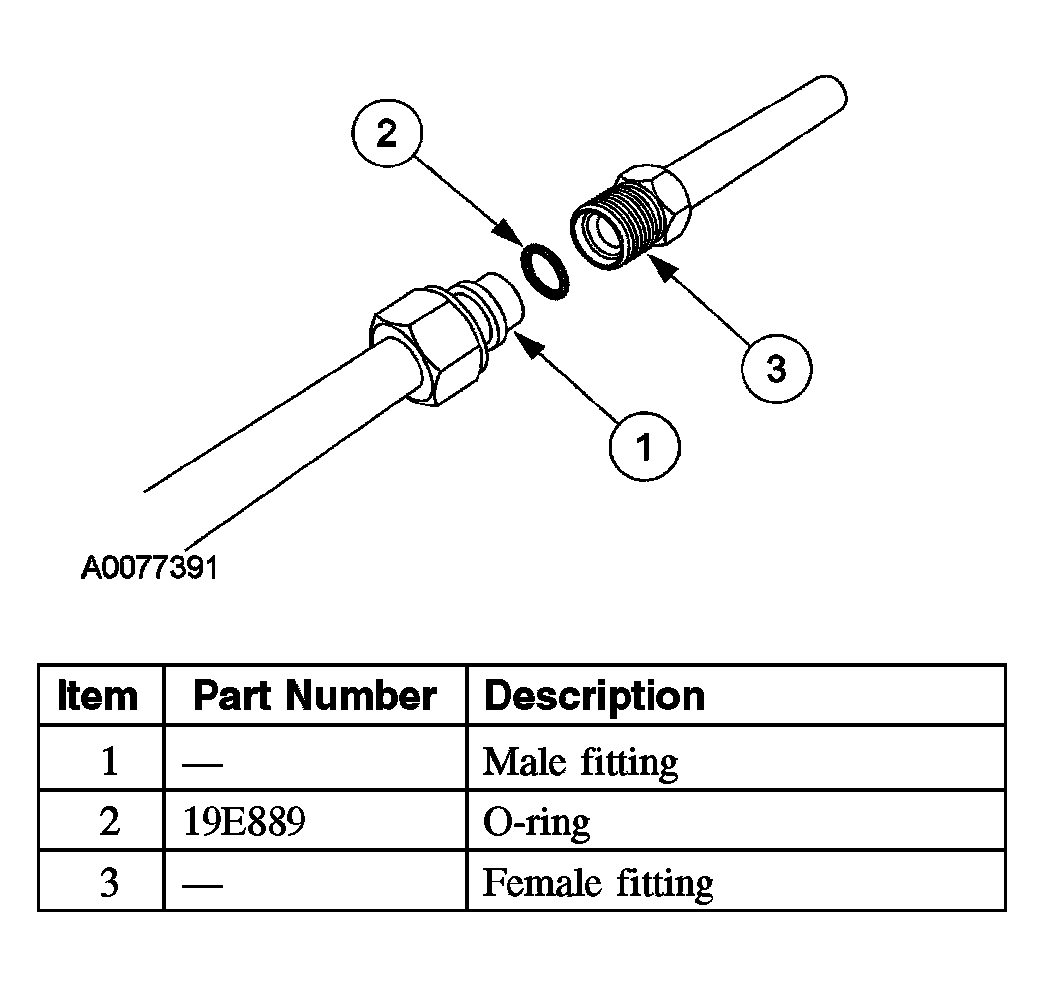

The condenser fittings are the tube-0 type.
- The male and female portions of the peanut fitting are retained with a nut.
- An O-ring seal is installed around the tube on the male side of the fitting.
- Support the female fitting with a wrench to prevent twisting of the tubes when disconnecting.
- Use only the O-ring seal listed in the Ford Master Parts Catalog.
