Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cooling fan. For additional information, refer to COOLING FAN - 6.0L DIESEL .

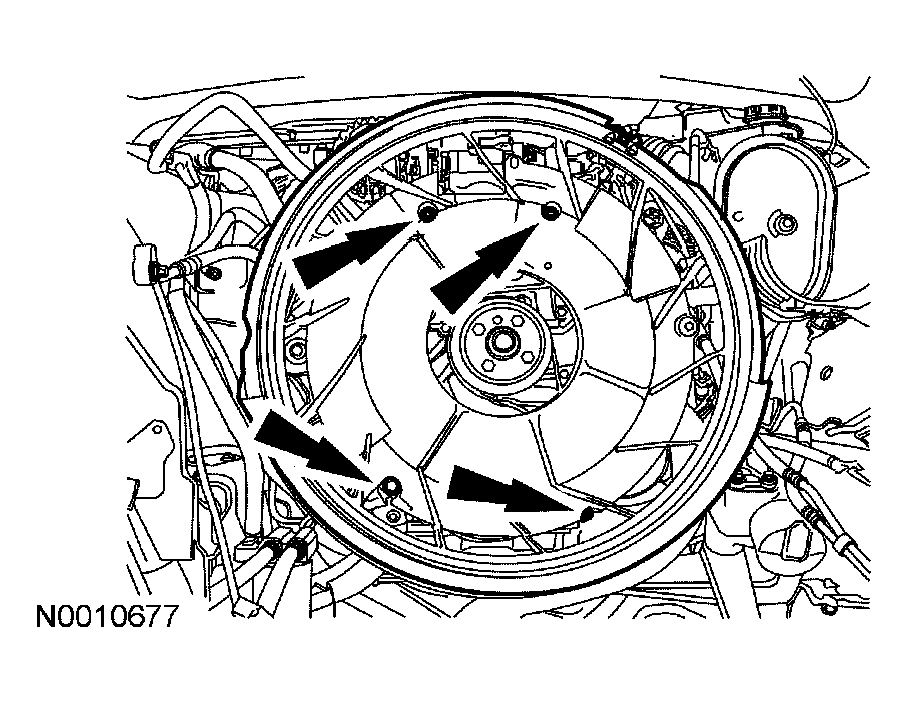

- Remove the 4 bolts and cooling fan stator.
- To install, tighten to 40 Nm (30 lb-ft).
- To install, reverse the removal procedure.
