Rear Suspension

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

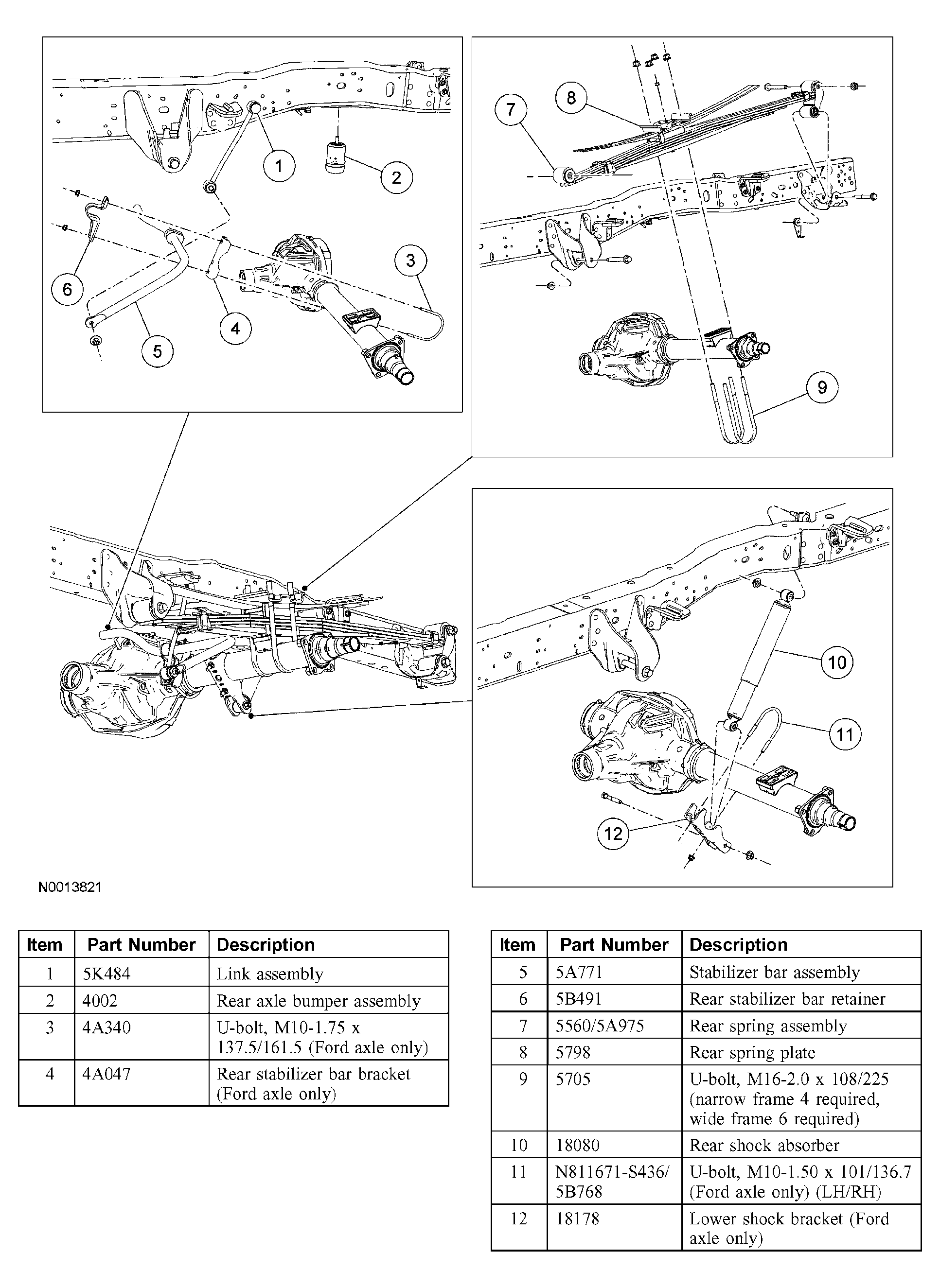

Fig 1: Identifying Rear Suspension Components - Super Duty F-350 Narrow Frame (F-350 Wide Frame Similar)
G03917900Courtesy of FORD MOTOR CO.

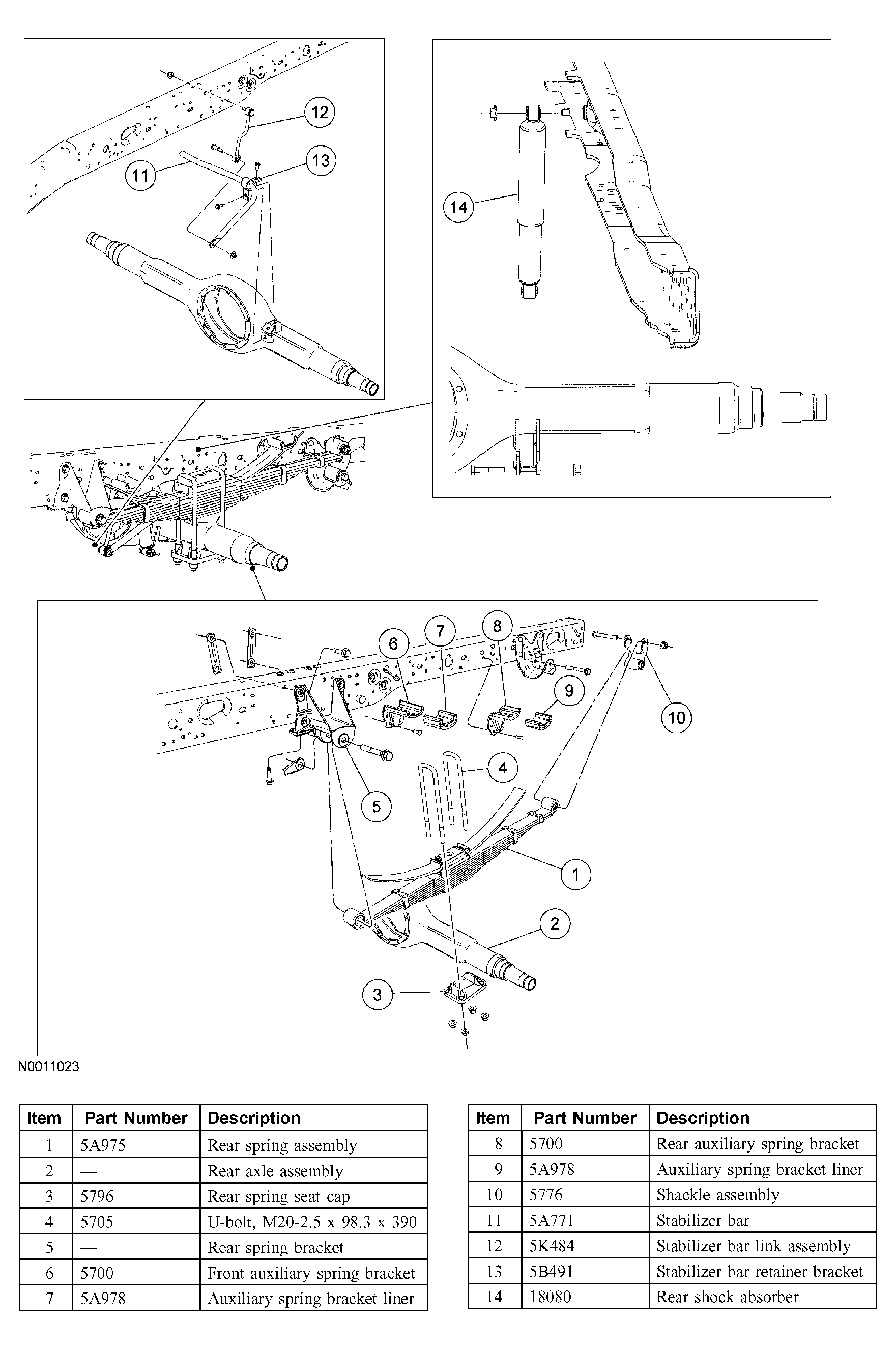

Fig 2: Identifying Rear Suspension Components - Super Duty F-550 Shown (F-450 Similar)
G03917901Courtesy of FORD MOTOR CO.
