Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Index-mark the driveshaft at the axle flange.
    Fig 1: Index-Marking On Driveshaft At Axle Flange
    G03883321Courtesy of FORD MOTOR CO.
  3. Remove and discard the four driveshaft bolts. Disconnect the driveshaft from the axle flange.
    • Using mechanic's wire, support the driveshaft.

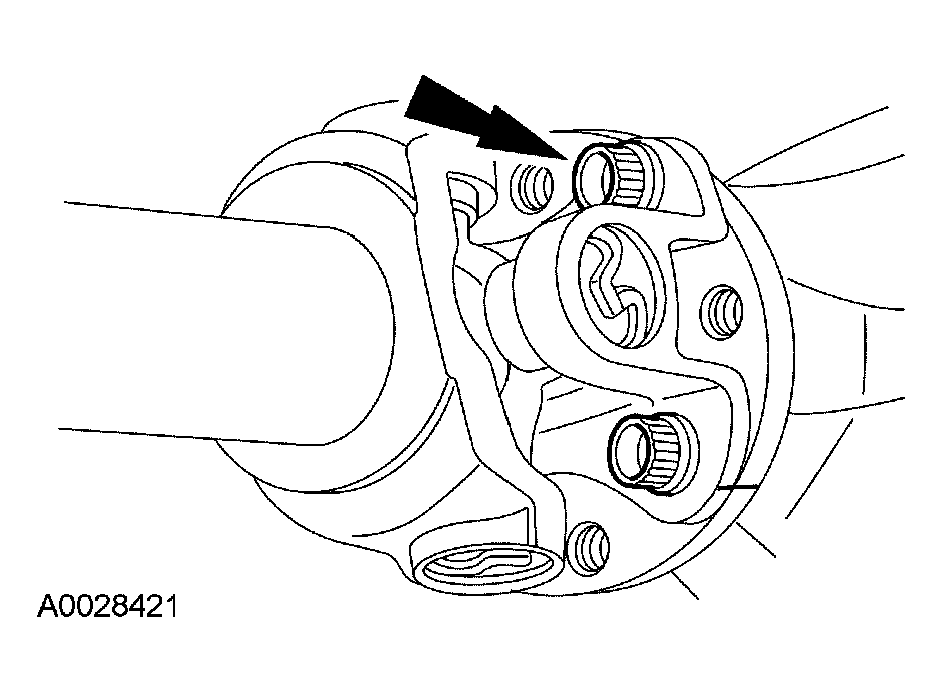

      Fig 2: Removing Four Driveshaft Bolts
      G03904286Courtesy of FORD MOTOR CO.
    4. NOTE: Index-mark the driveshaft to the transmission flange.
  4. Remove and discard the bolts. Disconnect the driveshaft from the transmission.
    • Using mechanic's wire, support the driveshaft.
      Fig 3: Identifying Index-Mark On Driveshaft Yoke And Transmission Flange
      G03918024Courtesy of FORD MOTOR CO.
  5. Index-mark the output shaft to the slip yoke.
  6. Remove the center bearing support bolts.
    Fig 4: Removing Center Bearing Support Bolts
    G03883324Courtesy of FORD MOTOR CO.
  7. Remove the driveshaft assembly.
  8. Clean grease deposits, dirt and rust from the following:
    • The driveshaft flange yoke areas.
    • All driveshaft slip yoke areas.
  9. Inspect the following:
    • The driveshaft slip yoke boot for rips or holes. Install a new boot if necessary.
    • The driveshaft center bearing support for wear or rough action. If roughness or wear is evident, install a new driveshaft center bearing support.
    • The center bearing rubber insulator for evidence of hardening, cracking or deterioration. Install a new insulator if necessary.
    10. NOTE: Lubricate the slip yoke spline with grease.
    NOTE: Install the driveshaft with the index marks made during removal.
    NOTE: Install new bolts and retainers.
    Fig 5: Installing Bolts
    G03918058Courtesy of FORD MOTOR CO.
    Fig 6: Installing Center Bearing Support Bolts
    G03918059Courtesy of FORD MOTOR CO.
  10. To install, reverse the removal procedure.
