Height Adjuster - Shoulder Safety Belt: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten bolts to specification.

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or if it does not remain closed, install a new shoulder safety belt guide.

Follow the removal procedure in reverse order.
- Check the active restraint system for correct operation.

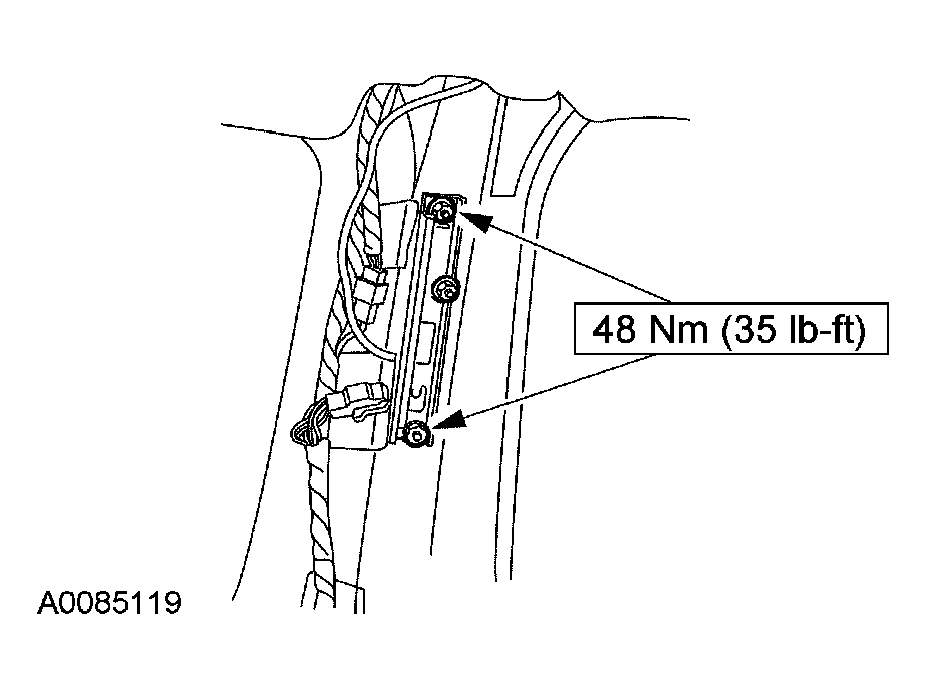

  Fig 1: Bolts Torque Specification
  Courtesy of FORD MOTOR CO.

  Fig 2: Safety Belt Guide Nut Torque Specification
  Courtesy of FORD MOTOR CO.
