Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat. For additional information, refer to SEATING .
Remove the seat cushion. For additional information, refer to SEATING .
Remove the six LATCH bolts.
- Remove the LATCH.

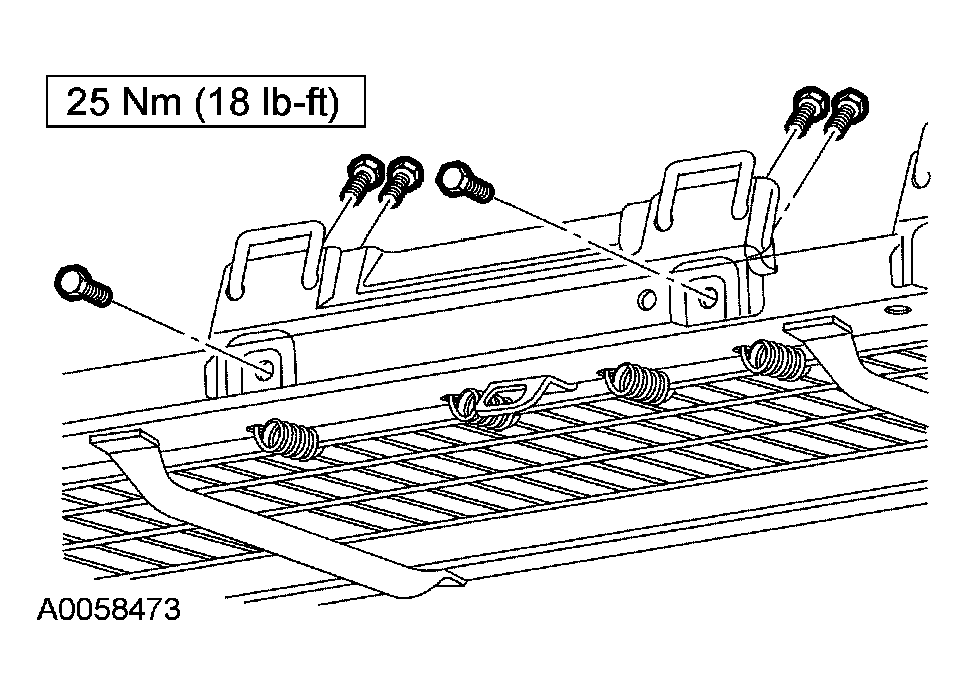

  Fig 1: Removing Six Latch Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation.
