Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The windshield wiper mounting arm and pivot shaft (17566) is installed as an assembly.
  1. Remove the windshield wiper pivot arms (17526). For additional information, refer to WIPER PIVOT ARM .
  2. Remove the cowl top vent panels (022A68).
  3. Remove the access cover from the dash panel (01610).
    Fig 1: Removing Access Cover From Dash Panel
    G03891178Courtesy of FORD MOTOR CO.
  4. Remove the windshield wiper mounting arm bolt.
    Fig 2: Locating Windshield Wiper Mounting Arm Bolt
    G03891179Courtesy of FORD MOTOR CO.
  5. Remove the windshield wiper mounting arm and pivot shaft.
    1. Remove the screws.
    2. Remove the windshield wiper mounting arm and pivot shaft.

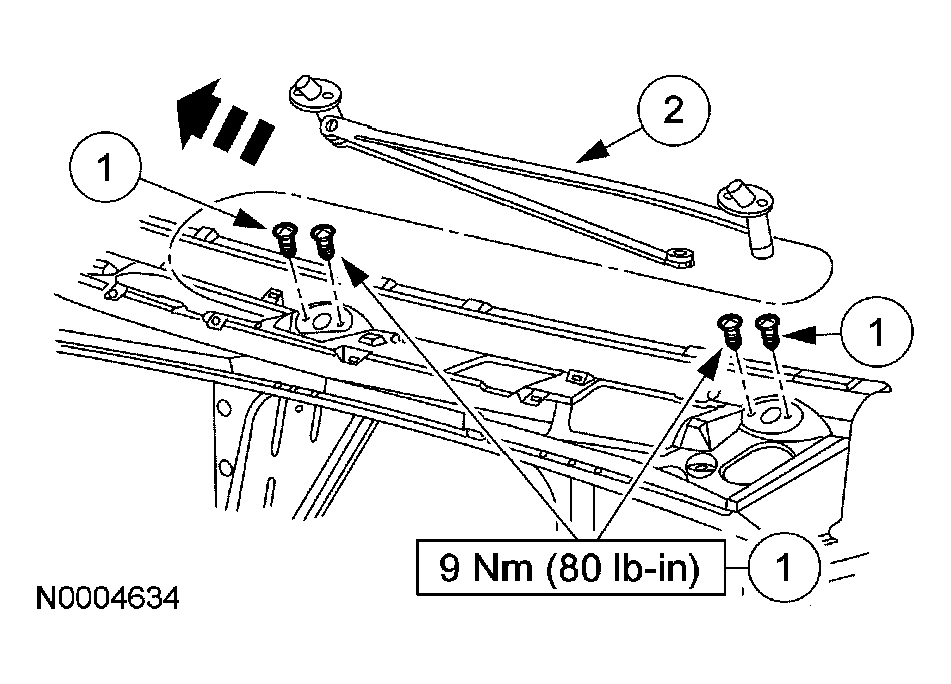

      Fig 3: Removing Windshield Wiper Mounting Arm And Pivot Shaft
      G03891180Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
