Intake Manifold: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

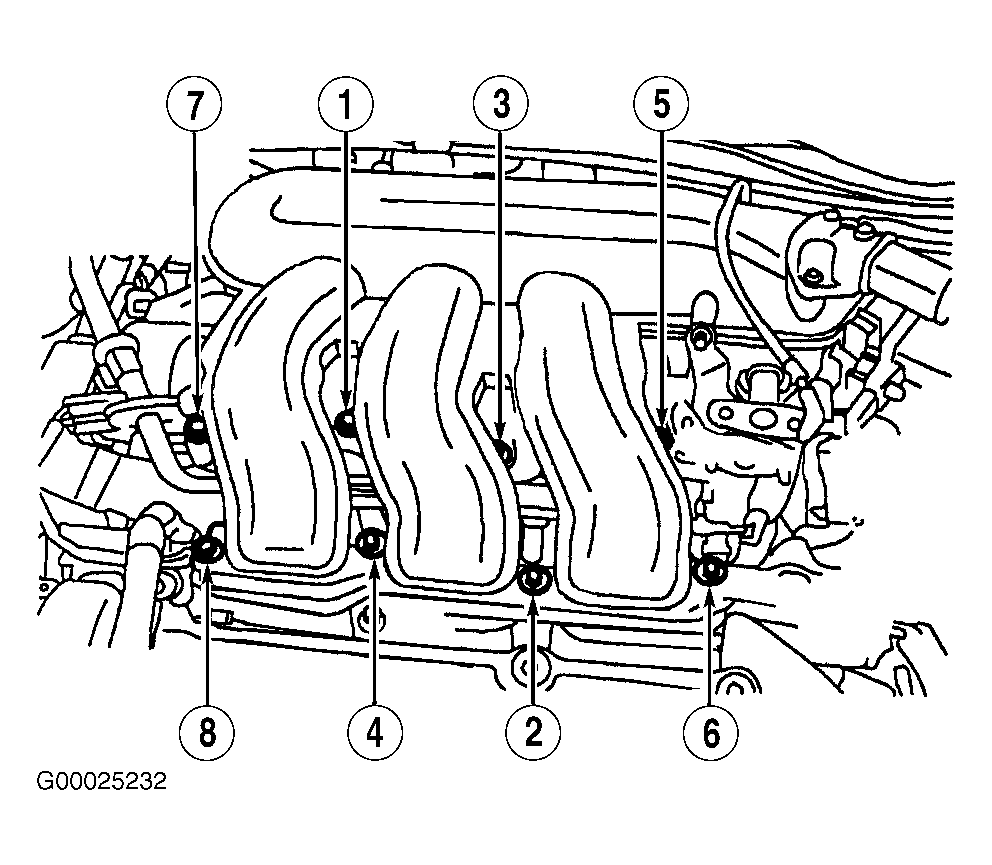

Clean gasket mating surfaces. Use NEW upper manifold gaskets. Tighten bolts in sequence to specification. See Figure. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
