Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch. For additional information, refer to HOOD LATCH .
  2. Disconnect the 2 hood latch release cable locators.
    Fig 1: Locating Hood Latch Release Cable Locators
    G03891106Courtesy of FORD MOTOR CO.
  3. Remove the hood latch handle cover and the A-pillar lower trim panel.

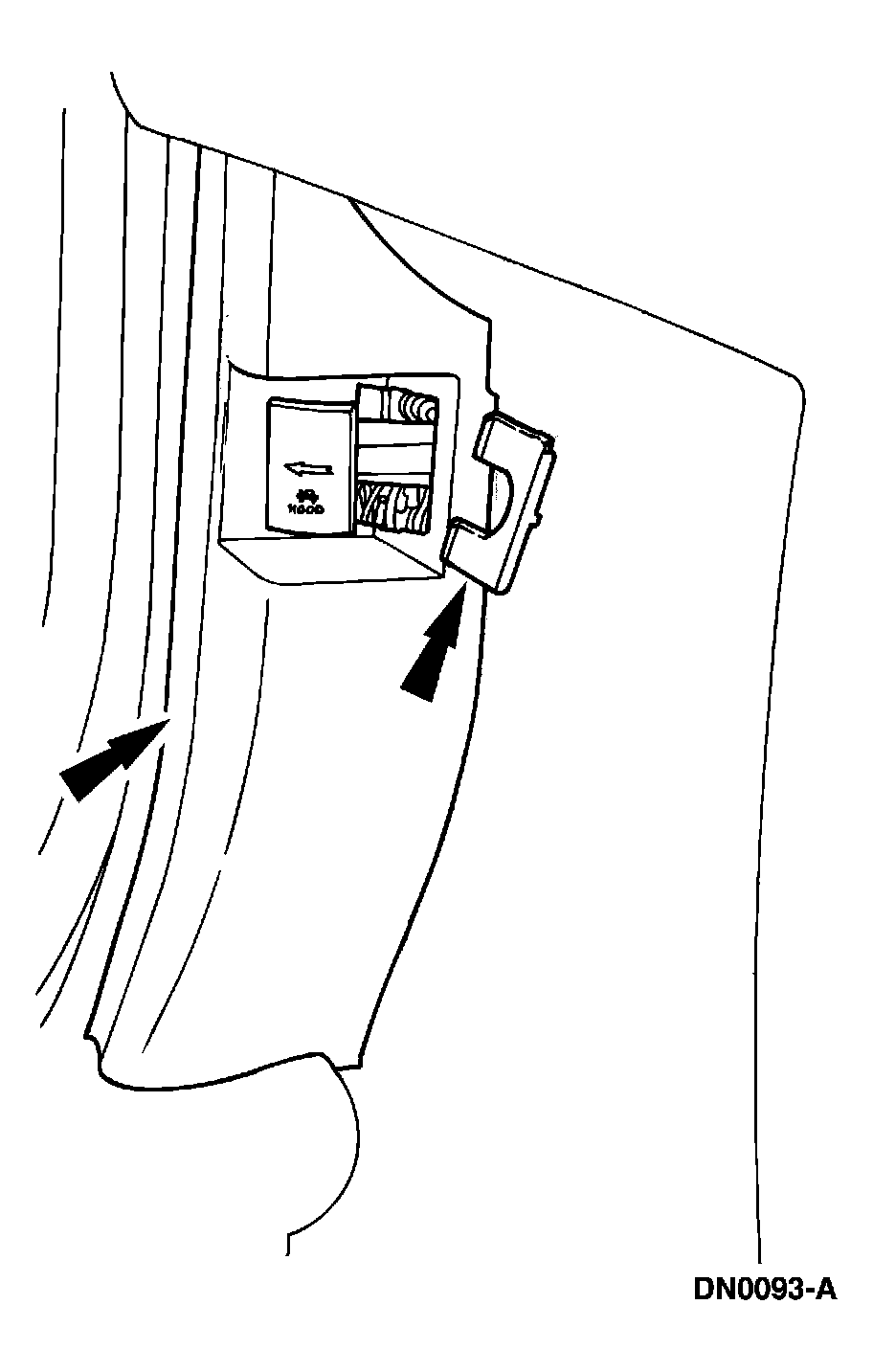

    Fig 2: Locating Hood Latch Handle Cover And A-Pillar Lower Trim Panel
    G03891107Courtesy of FORD MOTOR CO.
  4. Remove the screws, the hood latch control handle, and the cable assembly.

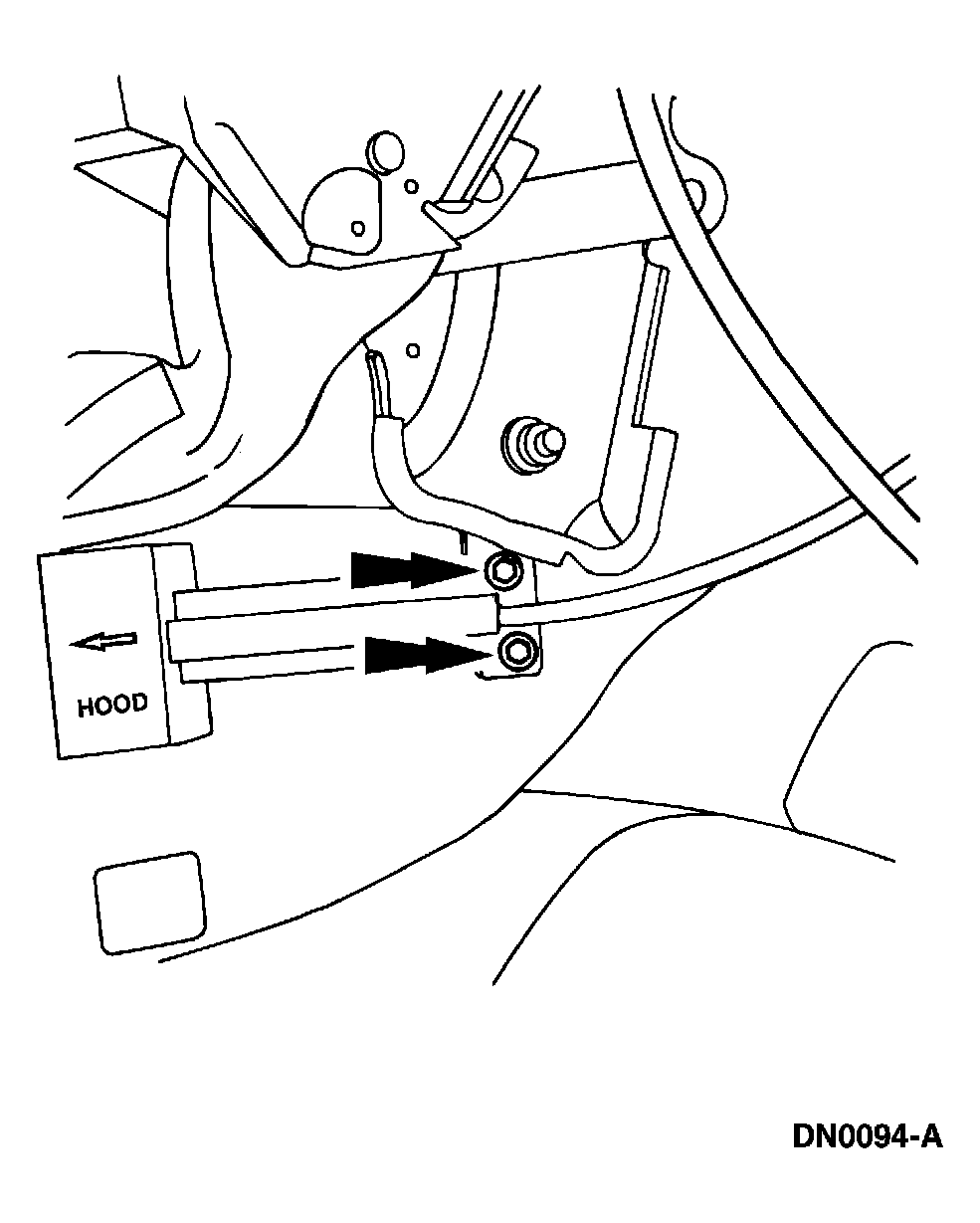

    Fig 3: Identifying Hood Latch Installing Bolts
    G03891108Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
