Switch - Window Regulator Control: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable; for additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Carefully pry the window regulator switch plate up.
    Fig 1: Prying Window Regulator Switch Plate Up
    G03890984Courtesy of FORD MOTOR CO.
  3. Remove the two screws.

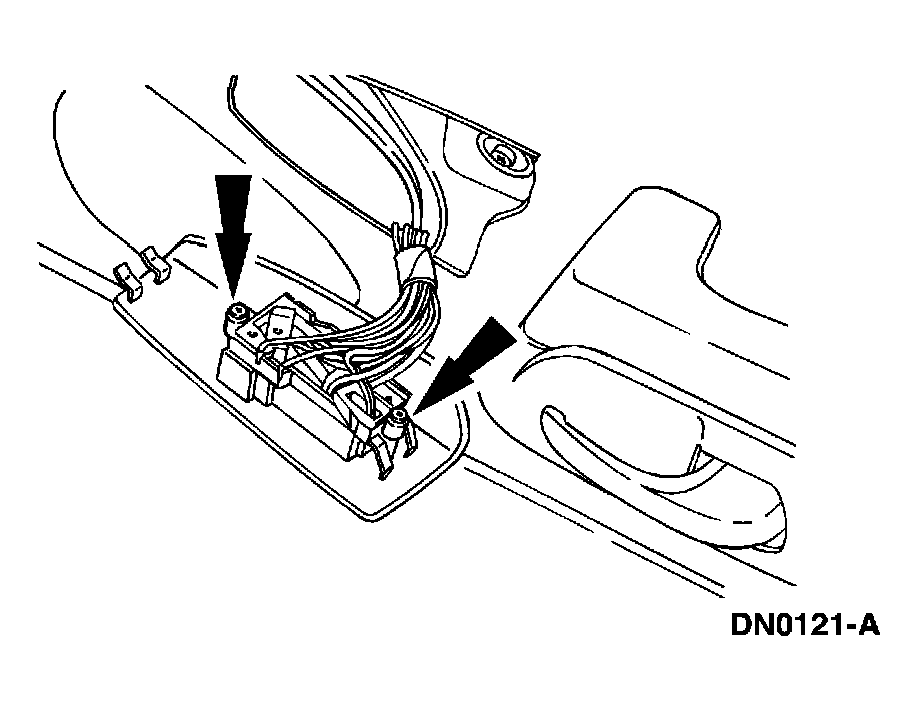

    Fig 2: Removing Two Screws
    G03890985Courtesy of FORD MOTOR CO.
  4. Carefully pry up and remove the window regulator control switch (14529).
    Fig 3: Removing Window Regulator Control Switch
    G03890986Courtesy of FORD MOTOR CO.
