Hinge Adjustment - Door
WARNING: This page is about a different car, the 2005 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the hinge bolts enough to permit movement of the door.
- Move the door to the desired fit.
- Tighten the hinge bolts and check the door for proper fit.
- Repeat if necessary.
- Lubricate the door hinges, using Multi-Purpose Grease D7AZ-19584-AA or DOAZ-19584-AA or equivalent meeting Ford specifications ESR-M1C159-A and ESB-M1C106-B or ESR-M1C159-A and ESB-M1C93-B.
NOTE:
The hinge holes are enlarged or elongated to provide for hinge and door alignment.
NOTE:

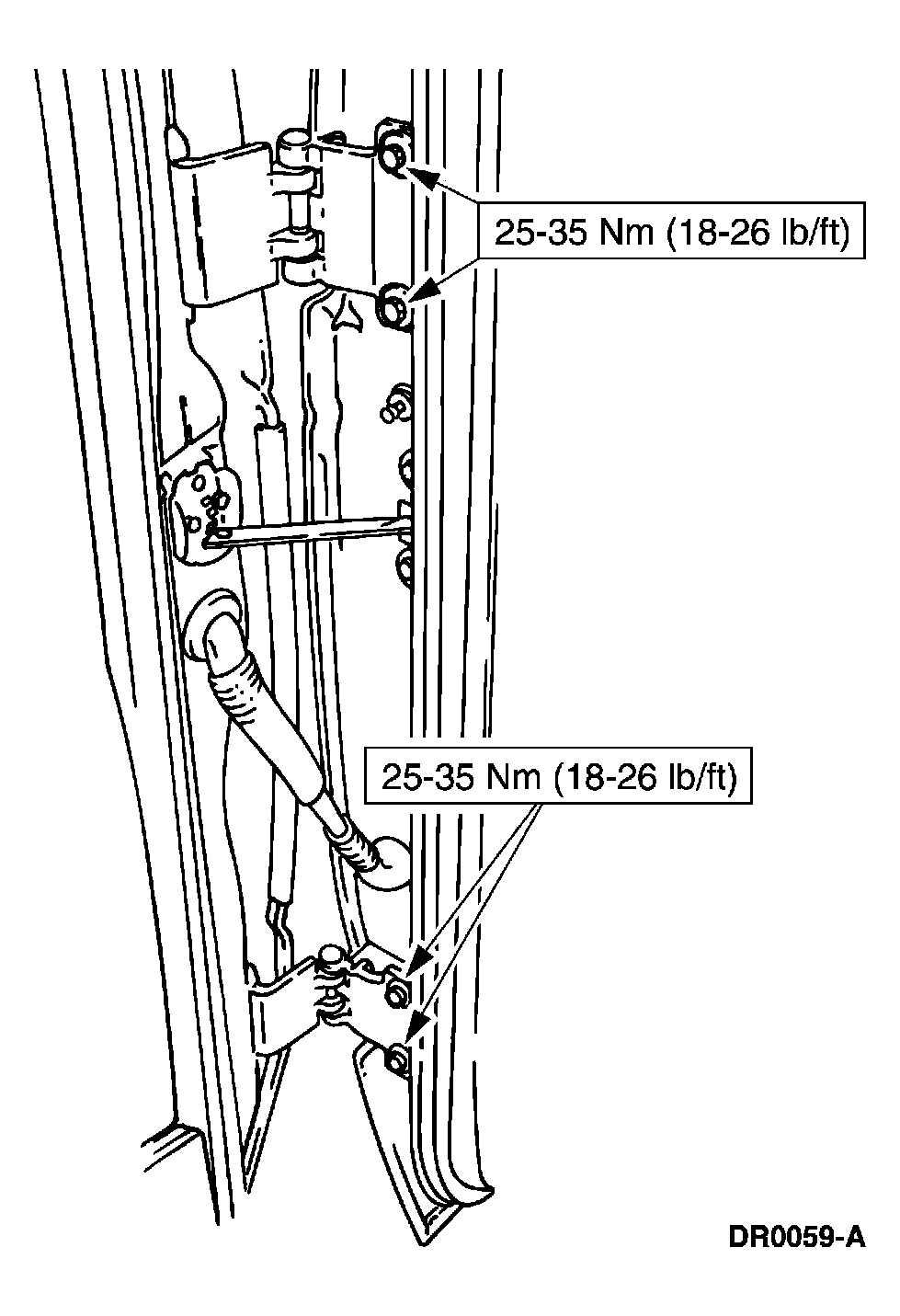

The front body side cargo door hinges are shown in Fig 1; all other door hinges are similar.
