Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille supports. For additional information, refer to RADIATOR GRILLE SUPPORT .
  2. Remove the front end valance panel retaining screws.

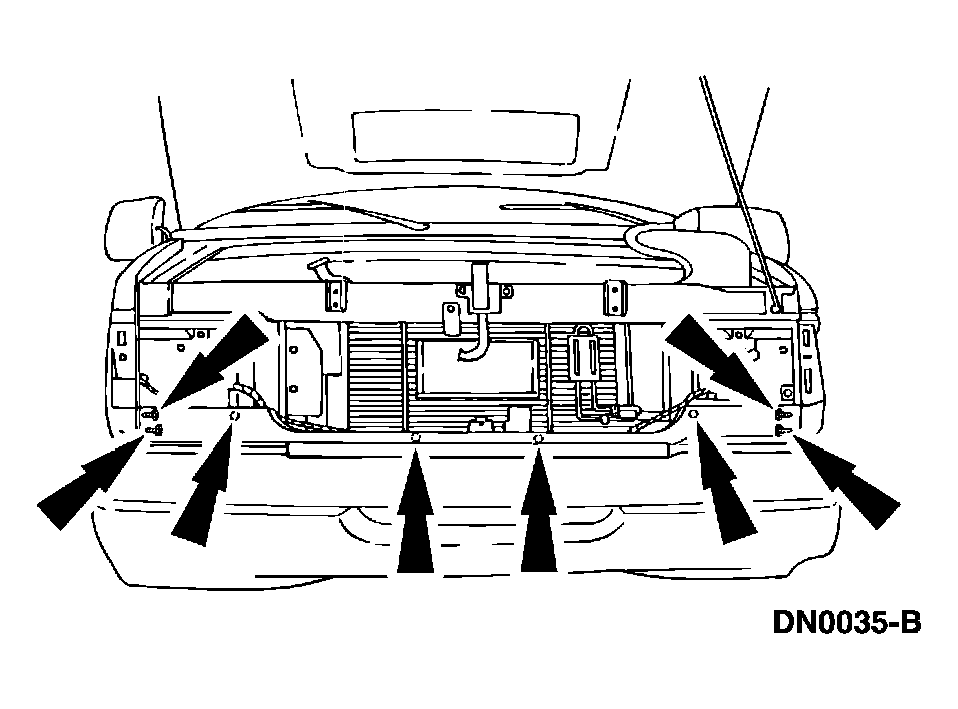

    Fig 1: Removing Front End Valance Panel Retaining Screws
    G03890641Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

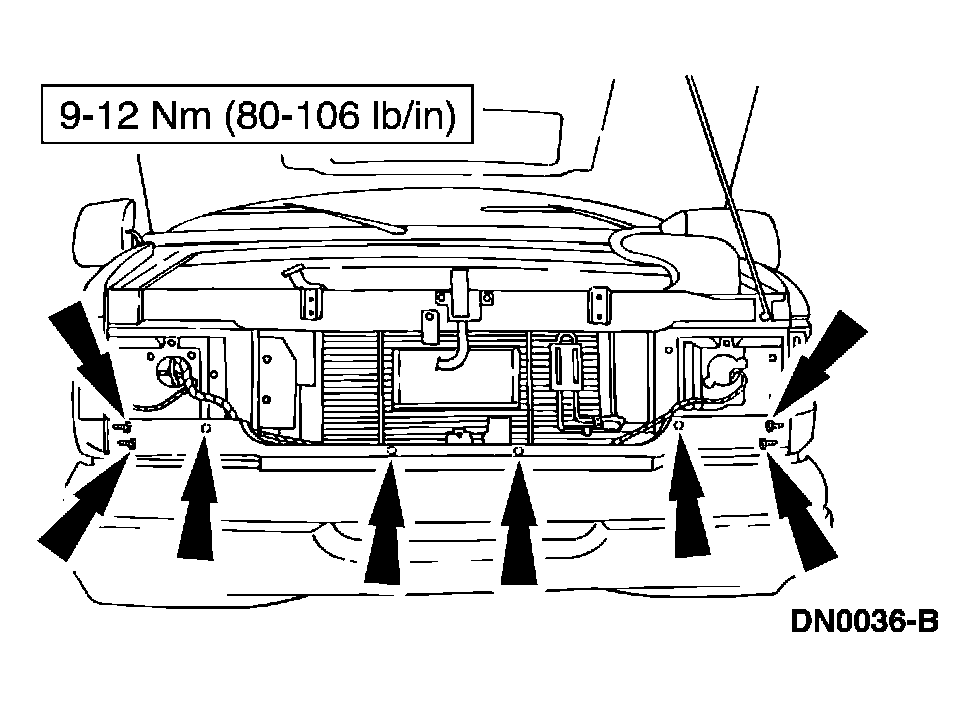

    Fig 2: Installing Front End Valance Panel Retaining Screws
    G03890642Courtesy of FORD MOTOR CO.
