Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator grille opening panel reinforcement (8A284). For additional information, refer to GRILLE OPENING PANEL REINFORCEMENT .
Remove the screws at the lower edge of the front fender securing the splash shield.

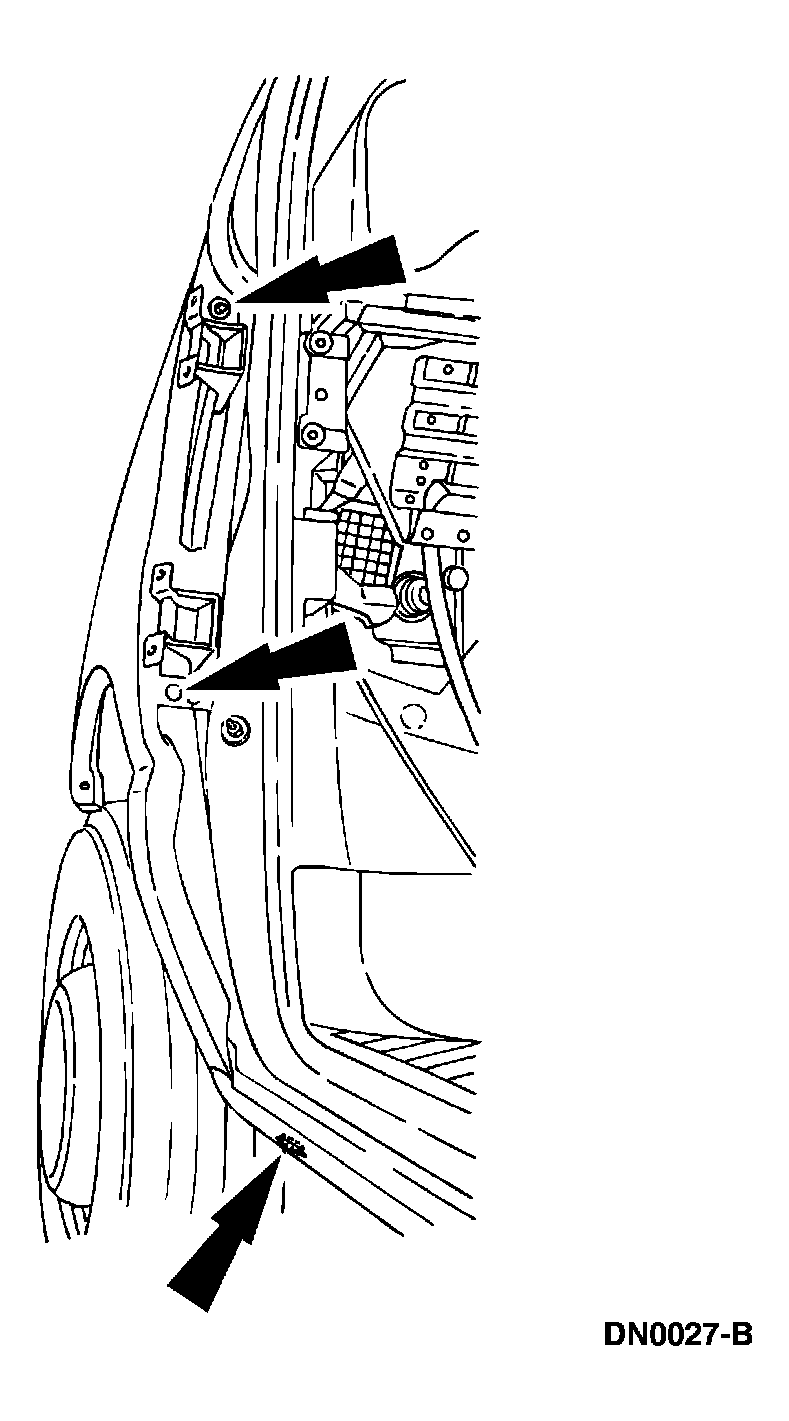

Fig 1: Removing Screws From Lower Edge Of Front Fender Securing Splash Shield
Courtesy of FORD MOTOR CO.
With the front door open, remove the fender-to-cowl side brackets retaining bolts, and the bolt and shims securing the lower rear of the fender.

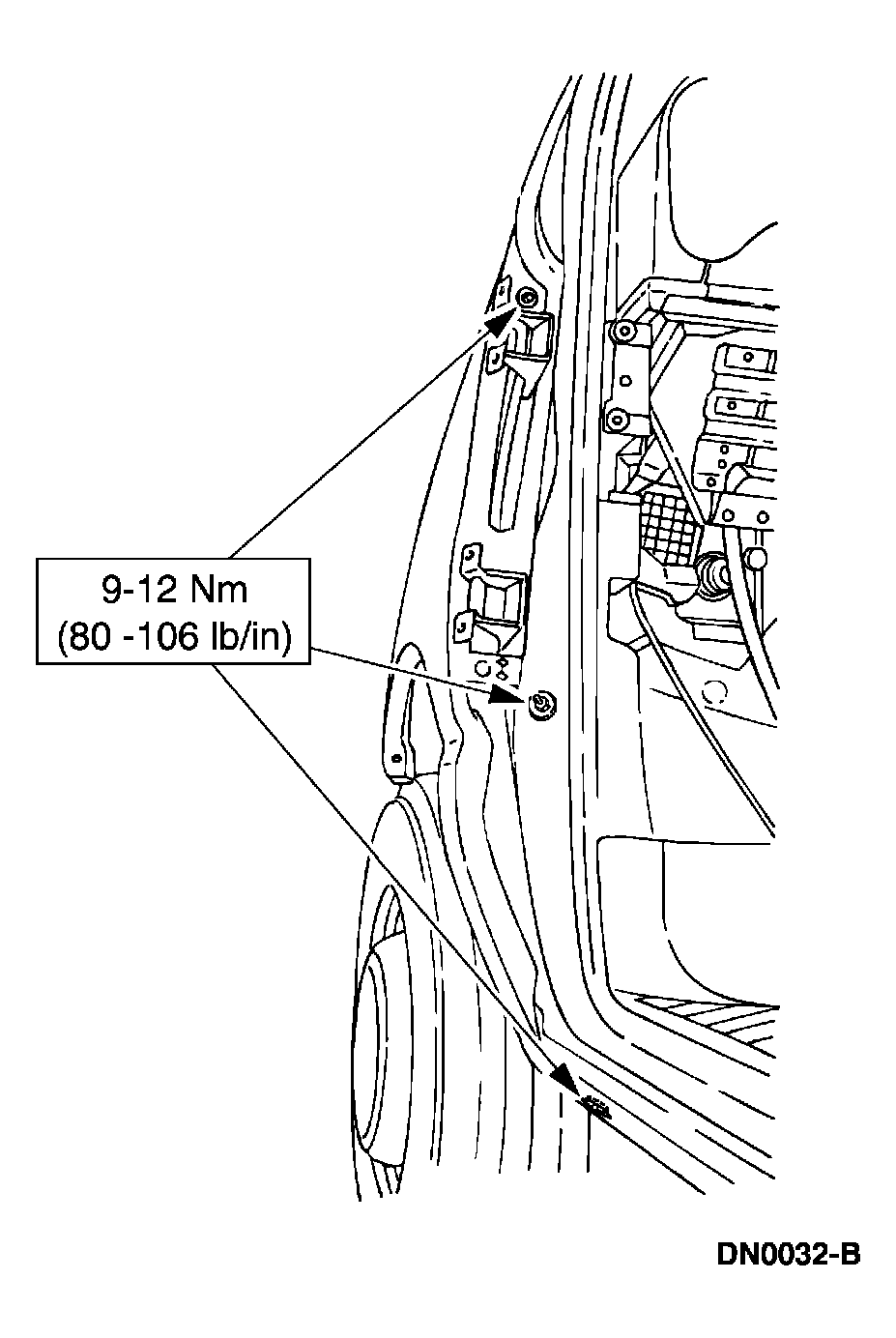

Fig 2: Removing Fender-To-Cowl Side Brackets Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the front fender-to-radiator support retaining screw and the front fender-to-front end stone deflector retaining screws.

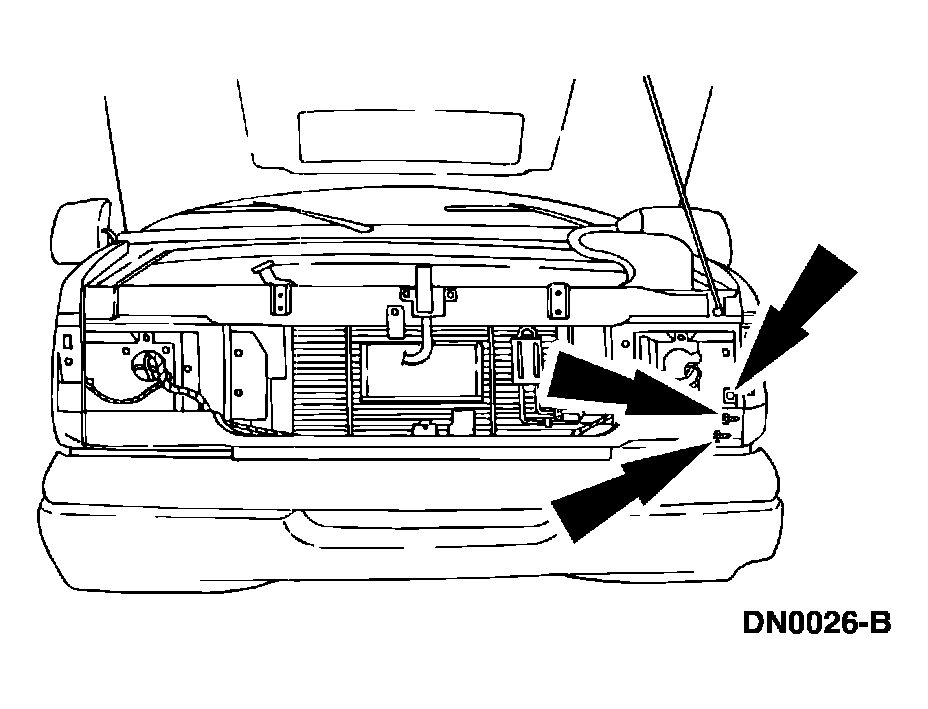

Fig 3: Removing Front Fender-To-Radiator Support Retaining Screw
Courtesy of FORD MOTOR CO.
Remove the front fender (16005).
- Remove the front fender-to-fender upper apron retaining screws.

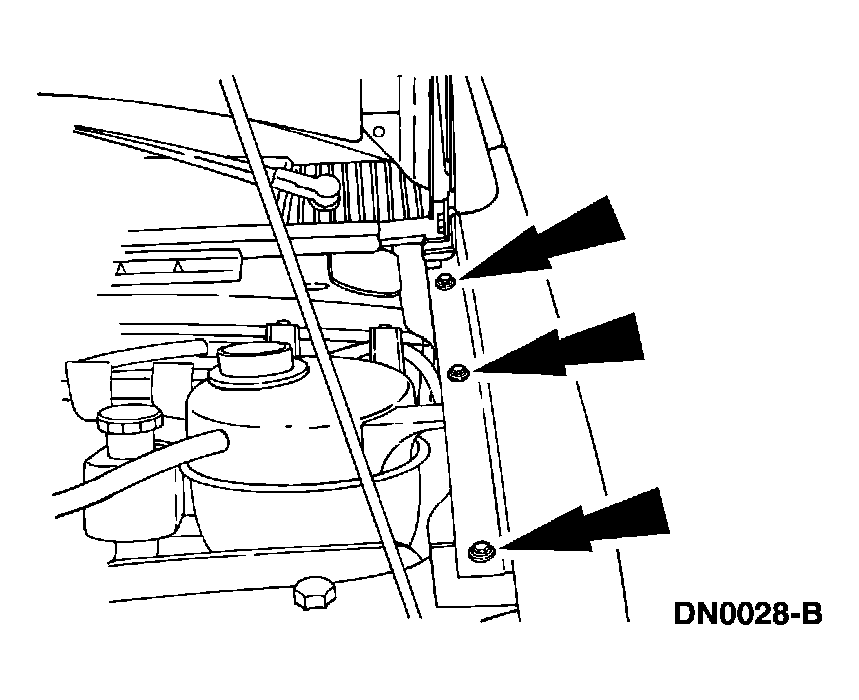

  Fig 4: Removing Front Fender-To-Fender Upper Apron Retaining Screws
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 5: Installing Front Fender-To-Fender Upper Apron Retaining Screws
Courtesy of FORD MOTOR CO.

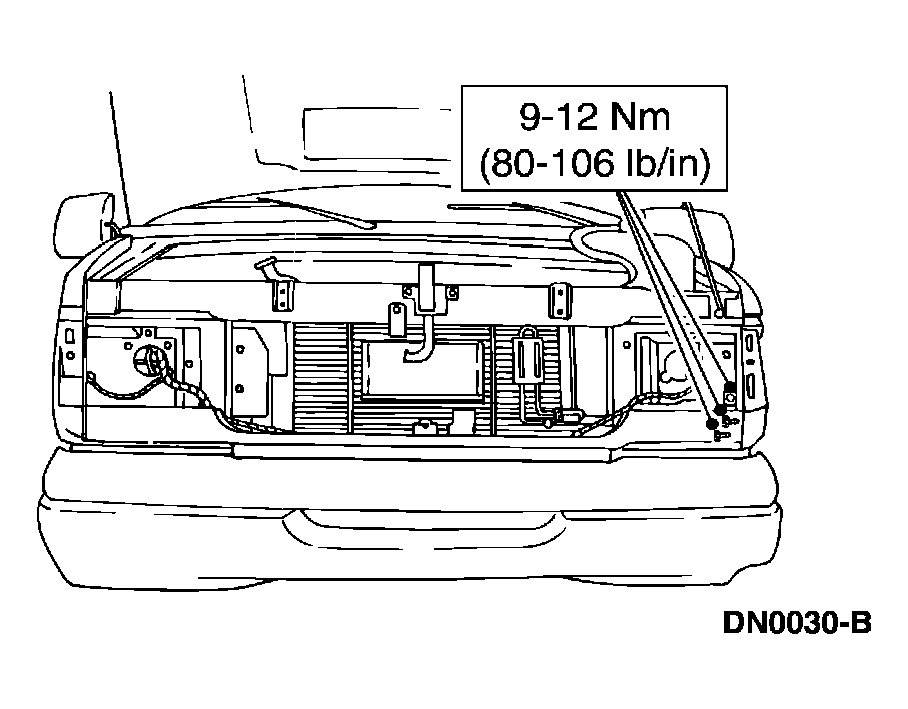

Fig 6: Installing Front Fender-To-Radiator Support Retaining Screw
Courtesy of FORD MOTOR CO.

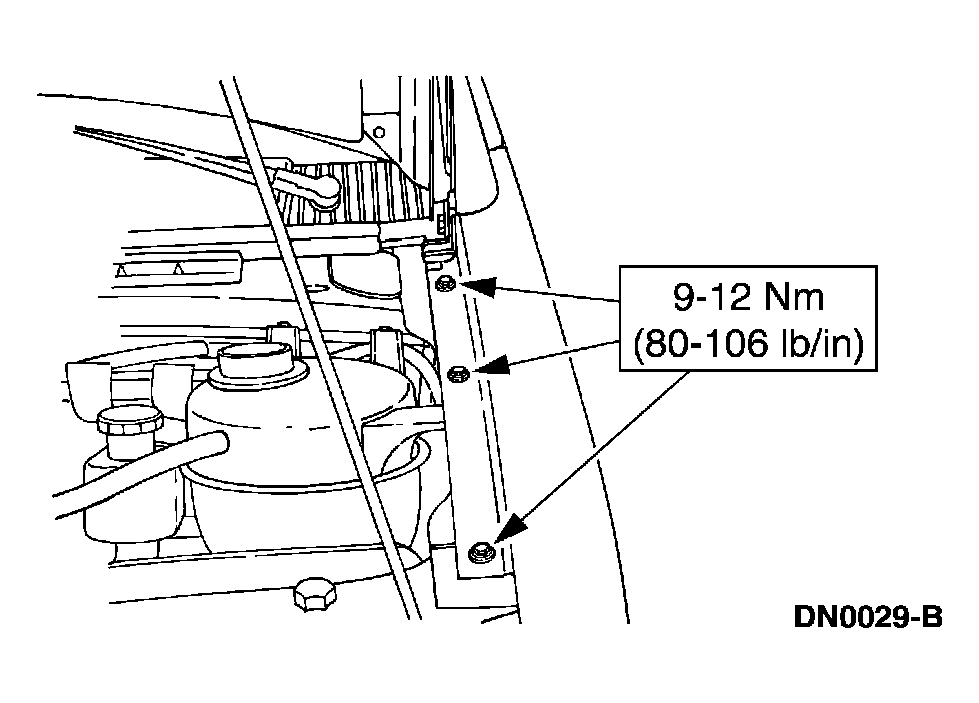

Fig 7: Installing Fender-To-Cowl Side Brackets Retaining Bolts
Courtesy of FORD MOTOR CO.
