Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille opening panel reinforcement (8A284). For additional information, refer to GRILLE OPENING PANEL REINFORCEMENT .
  2. Remove the left or right radiator deflector.
    1. Pry out the pushpins (four per deflector) from the radiator support.
    2. Remove the left or right radiator air deflector.

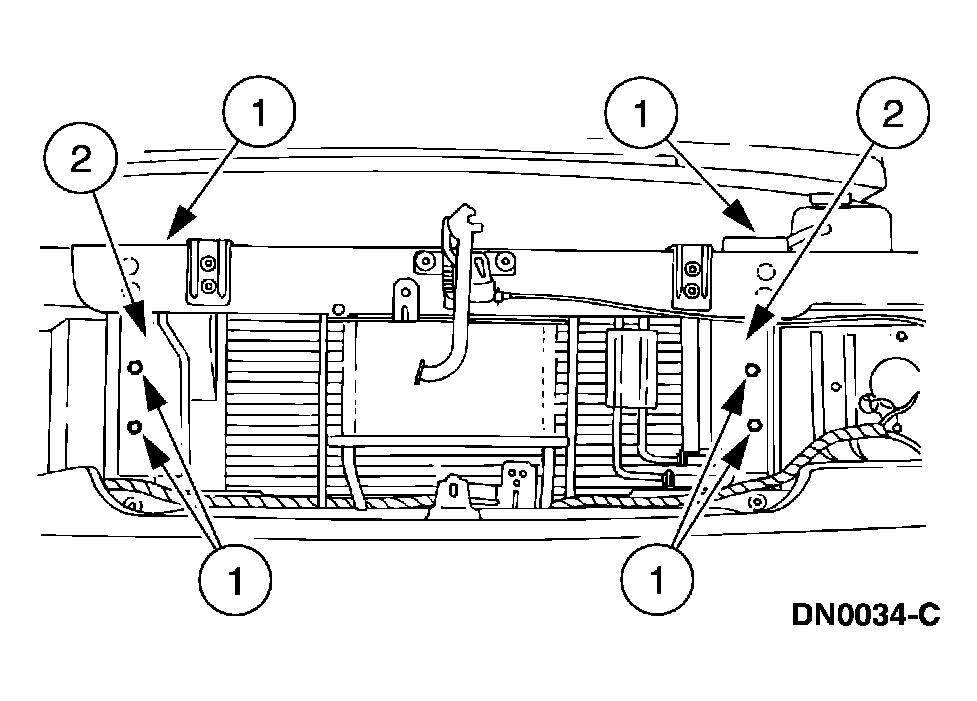

      Fig 1: Removing Left And Right Radiator Deflector
      G03890640Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
