Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Rotate both dome/reading lamp to the stop position, then continue until both dome/reading lamps are in the vertical position.

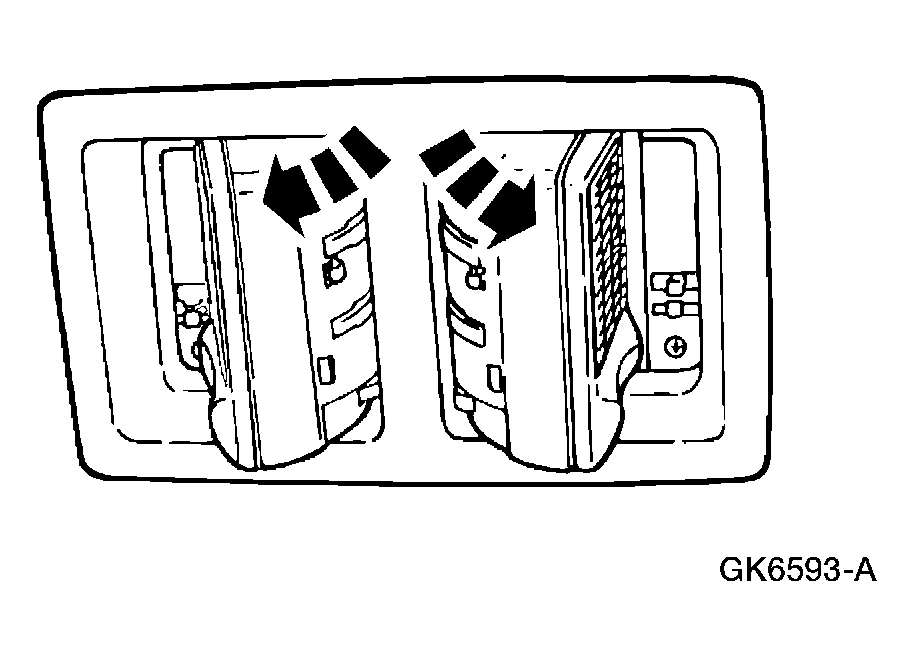

Fig 1: Rotating Dome/Reading Lamp To Stop Position
Courtesy of FORD MOTOR CO.
Remove the dome/reading lamp screws.

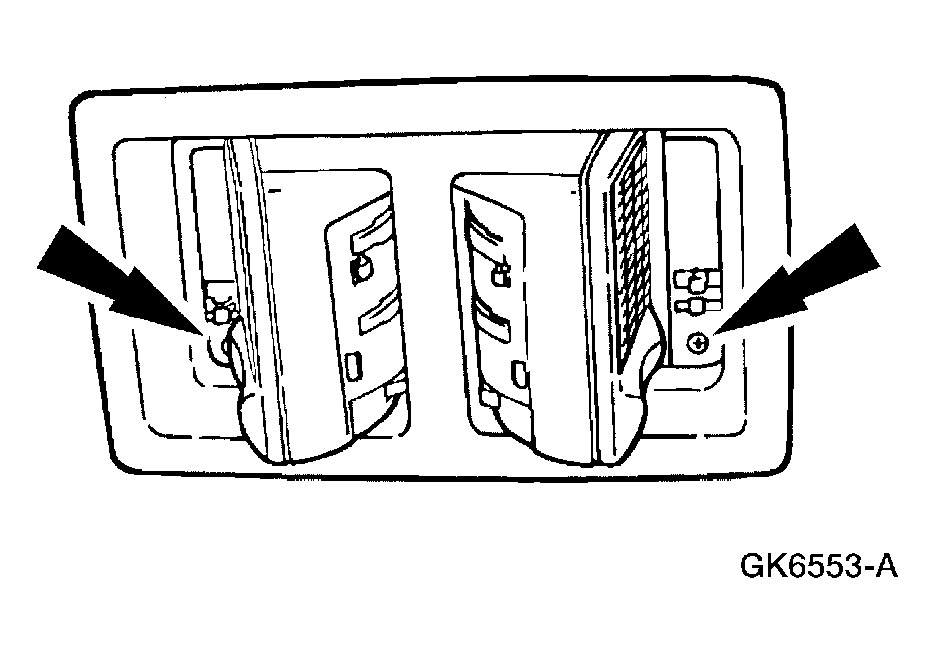

Fig 2: Removing Dome/Reading Lamp Screws
Courtesy of FORD MOTOR CO.
Disconnect the dome/reading lamp electrical connector.

Fig 3: Disconnecting Dome/Reading Lamp Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
