Intake Manifold (6.8L): Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, and 2002 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. If lower intake manifold was removed, position lower intake manifold to upper intake manifold and loosely install 10 bolts. Tightening bolts in sequence. See Fig 2. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . If necessary, install the fuel injector supply manifold.
To install, position gaskets, thermostat, housing and intake manifold assembly. Tighten fasteners to specification. See Fig 3. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Fill and bleed the engine cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM . Connect the battery ground cable.

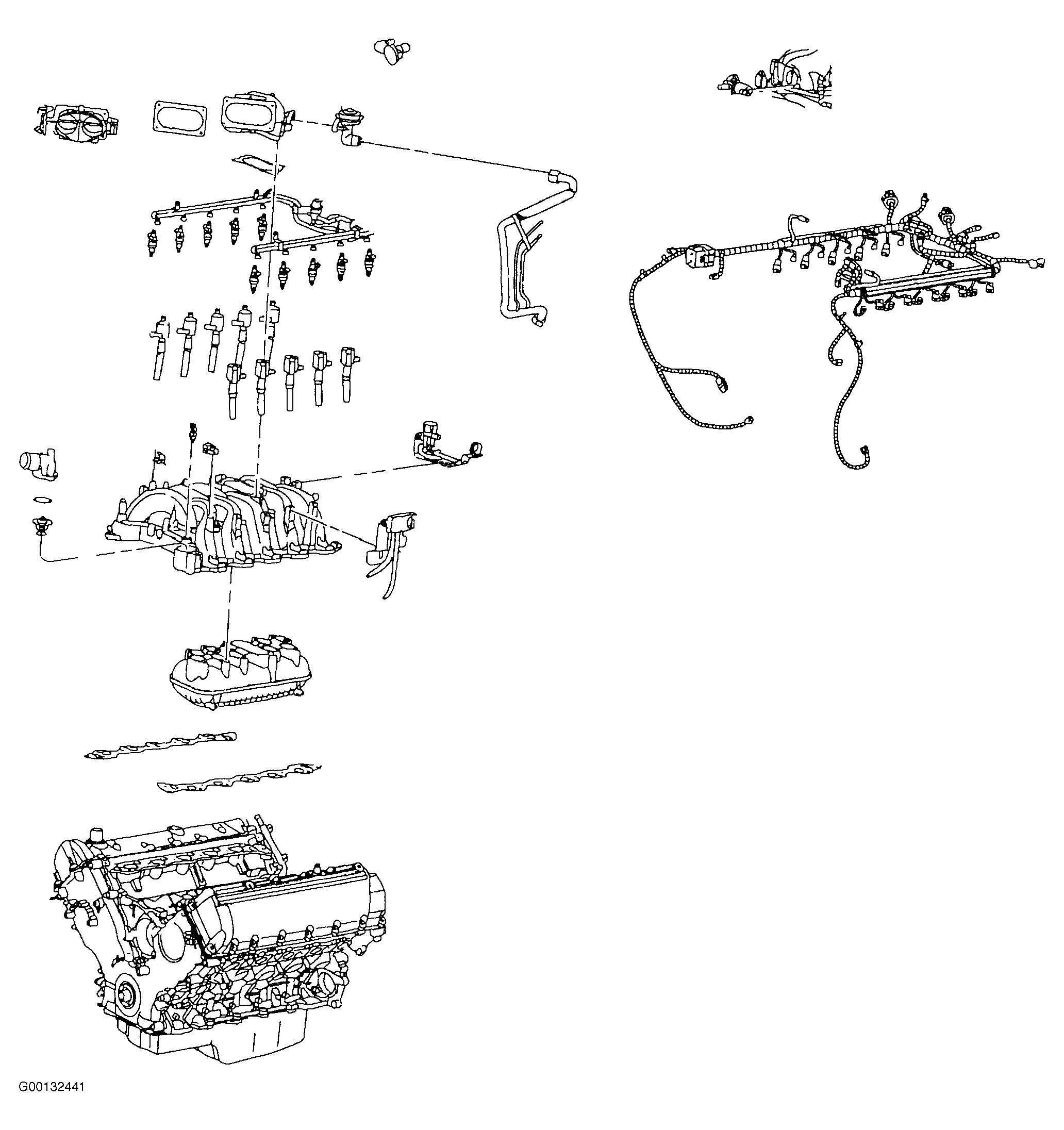

Fig 1: Exploded View Of Intake Manifold (6.8L)

Courtesy of FORD MOTOR CO.

Fig 2: Lower Intake Manifold Tightening Sequence (6.8L)

Courtesy of FORD MOTOR CO.

Fig 3: Upper Intake Manifold Tightening Sequence (6.8L)

Courtesy of FORD MOTOR CO.
