Intake Manifold (4.2L): Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, and 2002 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Install lower manifold with short bolts and long bolts in proper positions. See Fig 2. Tighten fasteners to specification. See Fig 3. See TORQUE SPECIFICATIONS .
Install intake manifold spacer. See Fig 4. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Install gaskets and upper intake manifold. Tighten upper intake manifold bolts in sequence to specification. See Fig 5. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Fill and bleed the engine cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM .

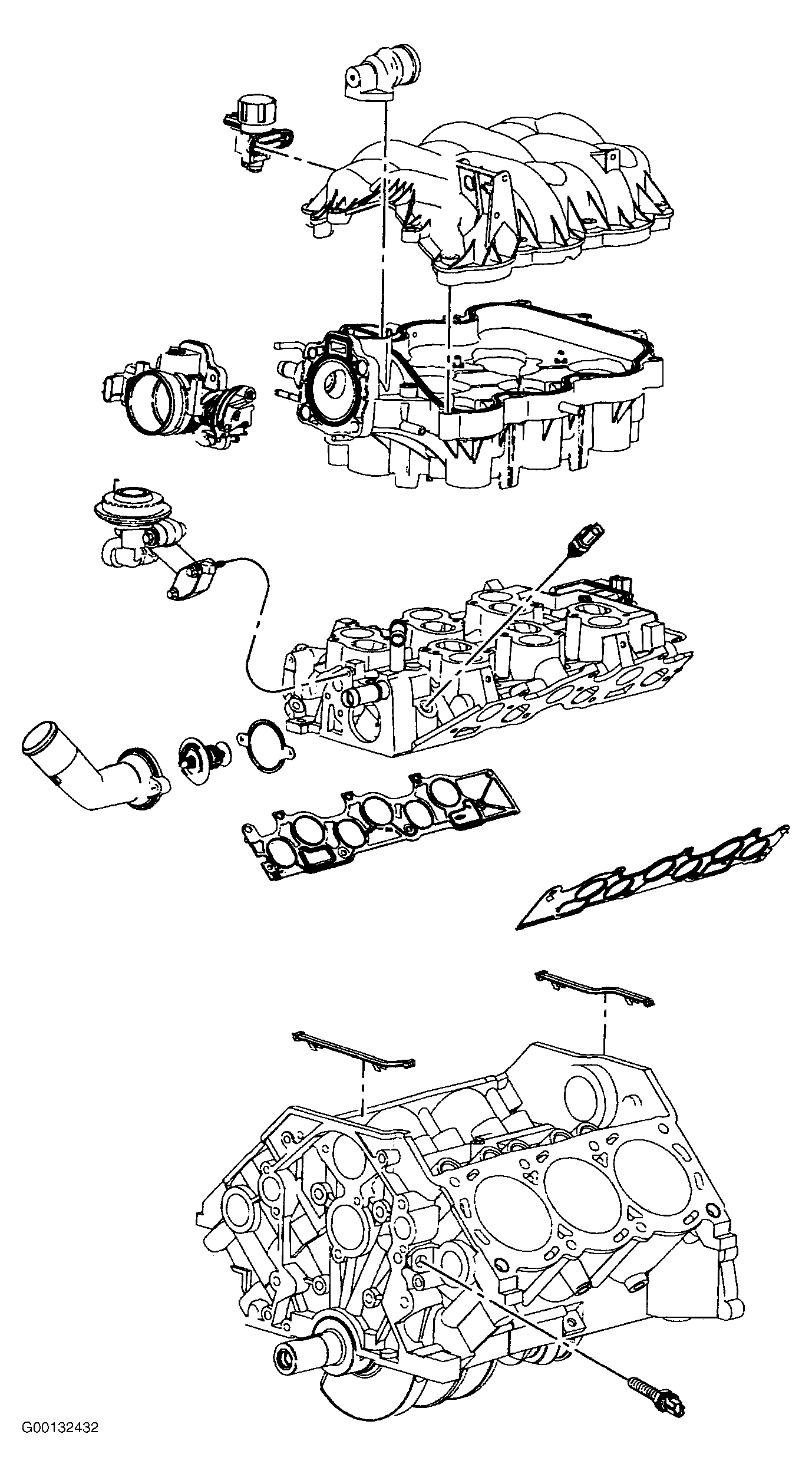

Fig 1: Exploded View Of Intake Manifold (4.2L)

Courtesy of FORD MOTOR CO.

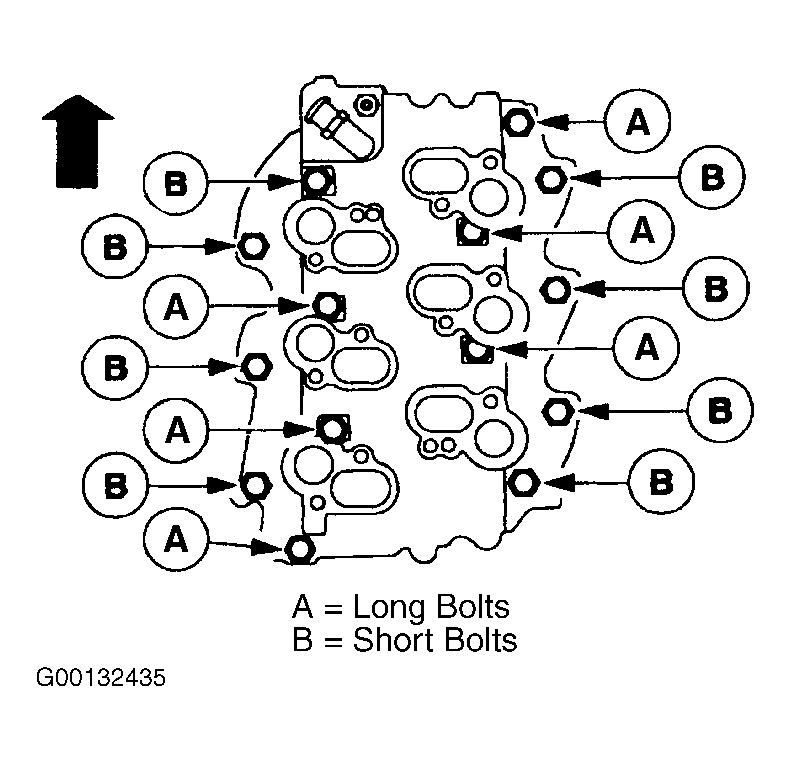

Fig 2: Identifying Short & Long Bolt Locations (4.2L)

Courtesy of FORD MOTOR CO.

Fig 3: Lower Intake Manifold Tightening Sequence (4.2L)

Courtesy of FORD MOTOR CO.

Fig 4: Intake Manifold Spacer Tightening Sequence (4.2L)

Courtesy of FORD MOTOR CO.

Fig 5: Upper Intake Manifold Tightening Sequence (4.2L)

Courtesy of FORD MOTOR CO.
