Lamp Switch - Brake Pedal Position: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the brake pedal position (BPP) switch electrical connector.
    Fig 1: Disconnecting Brake Pedal Position (BPP) Switch Electrical Connector
    G03890540Courtesy of FORD MOTOR CO.
  3. Remove the BPP switch.
    1. Remove the self-locking pin.
    2. Remove the brake master cylinder push rod spacer.
    3. Remove the BPP switch from the brake master cylinder push rod.
    4. Remove the brake master cylinder push rod bushing.
    5. Remove the brake master cylinder push rod spacer.

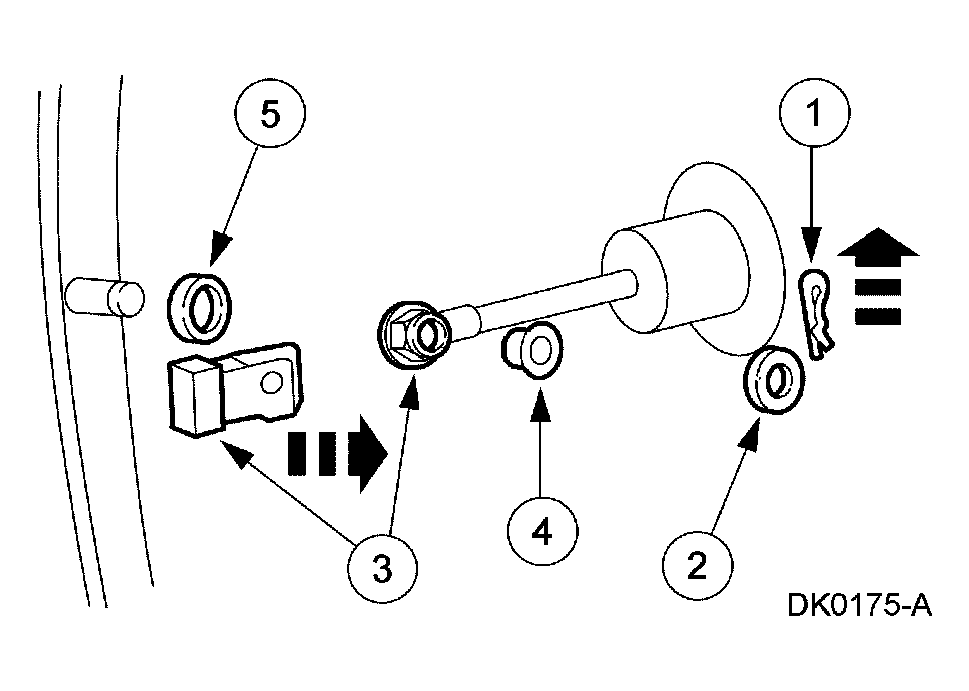

      Fig 2: Removing BPP Switch
      G03890541Courtesy of FORD MOTOR CO.
