Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hi-mount lamp screws.
    Fig 1: Removing Rear Hi-Mount Lamp Screws
    G03890525Courtesy of FORD MOTOR CO.
  2. Remove the screws retaining the lens to the interior lamp door (cargo lamp).
    Fig 2: Removing Screws Retaining Lens To Interior Lamp Door
    G03890526Courtesy of FORD MOTOR CO.
  3. Remove the interior lamp door (cargo lamp) screws.
    Fig 3: Removing Interior Lamp Door
    G03890527Courtesy of FORD MOTOR CO.
  4. Remove the two bulb sockets and remove the rear hi-mount lamp assembly.

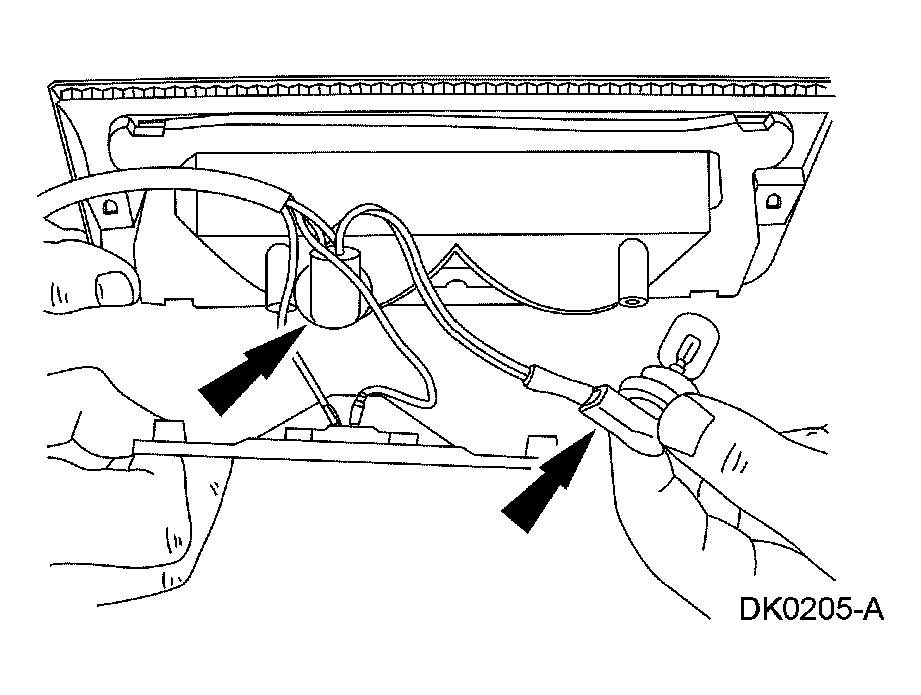

    Fig 4: Removing Two Bulb Sockets
    G03890528Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
