Lamp Assembly - Headlamp, Aerodynamic: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the headlamp assembly.
1. Connect the electrical connector.
2. Install the headlamp assembly.

  Fig 1: Installing Headlamp Assembly
  Courtesy of FORD MOTOR CO.
Push down the two headlamp mounting clips to secure the headlamp.
- If necessary, adjust the headlamps. For additional information, refer to HEADLAMP ADJUSTMENT .

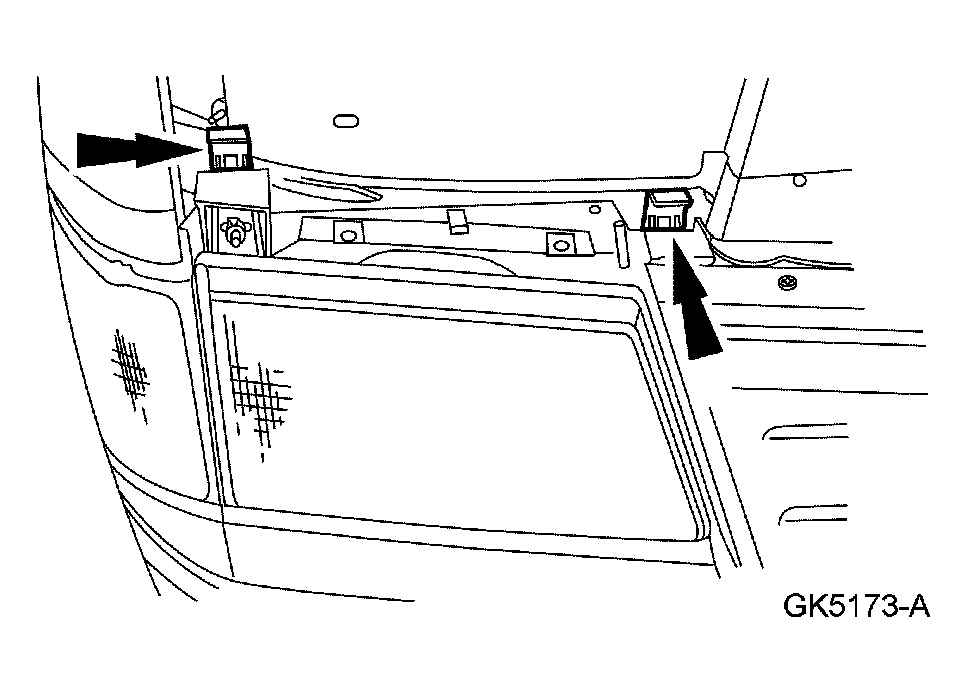

  Fig 2: Pushing Down Two Headlamp Mounting Clips
  Courtesy of FORD MOTOR CO.
