Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Pull headlamp knob to HEAD position.
Insert a small screwdriver onto clip and pull clip and knob outward, removing headlamp knob.

Fig 1: Inserting Small Screwdriver Onto Clip
Courtesy of FORD MOTOR CO.
Remove headlamp switch bezel by turning it counterclockwise.

Fig 2: Removing Headlamp Switch Bezel By Turning It Counterclockwise
Courtesy of FORD MOTOR CO.
On vehicles with tilt column, position steering wheel in full down position.
On vehicles with column shift, set parking brake and position shift lever to the lowest position.
Remove audio unit. For additional information, refer to AUDIO UNIT .
Remove 2 screws above instrument cluster.

Fig 3: Removing Screws Above Instrument Cluster
Courtesy of FORD MOTOR CO.
Remove instrument panel finish panel by pulling it straight back from instrument panel to release clips. Disconnect cigarette lighter and power point electronic connectors.

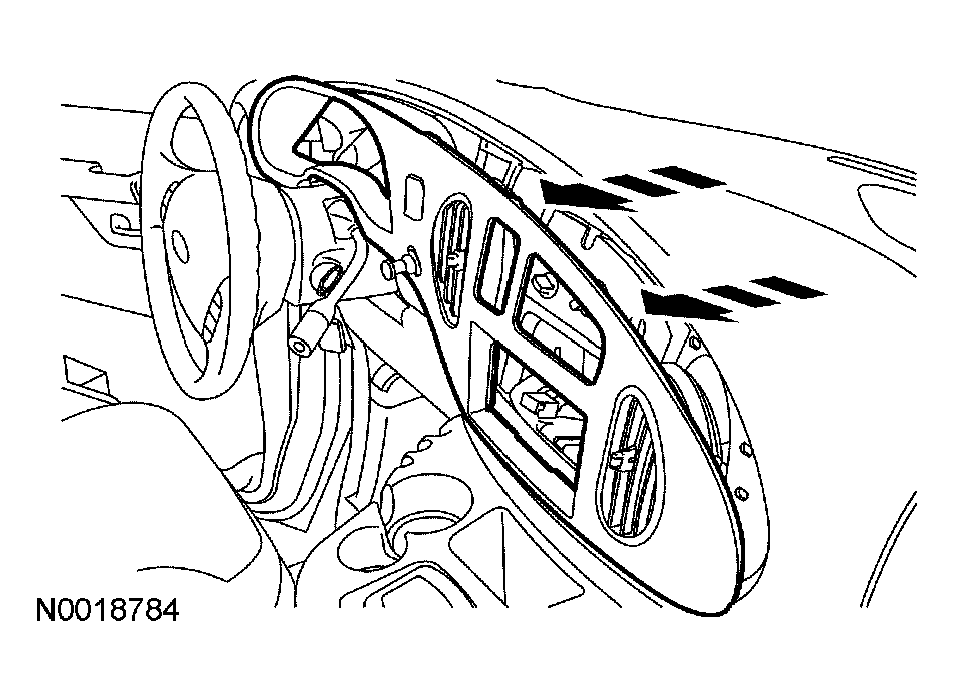

Fig 4: Removing Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Remove the headlamp switch bolts.

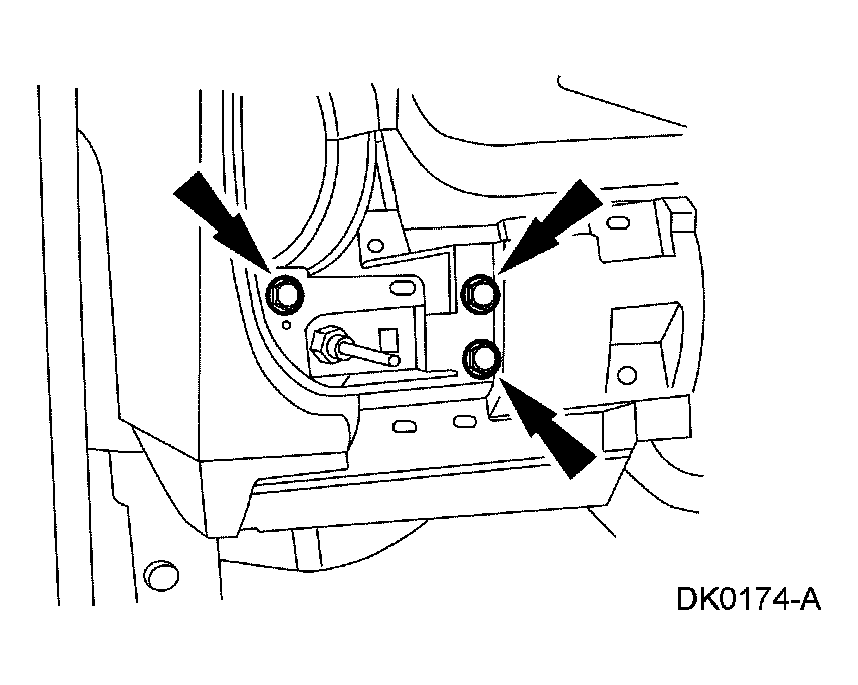

Fig 5: Removing Headlamp Switch Bolts
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the headlamp switch.
To install, reverse the removal procedure.
