Exterior Lighting
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

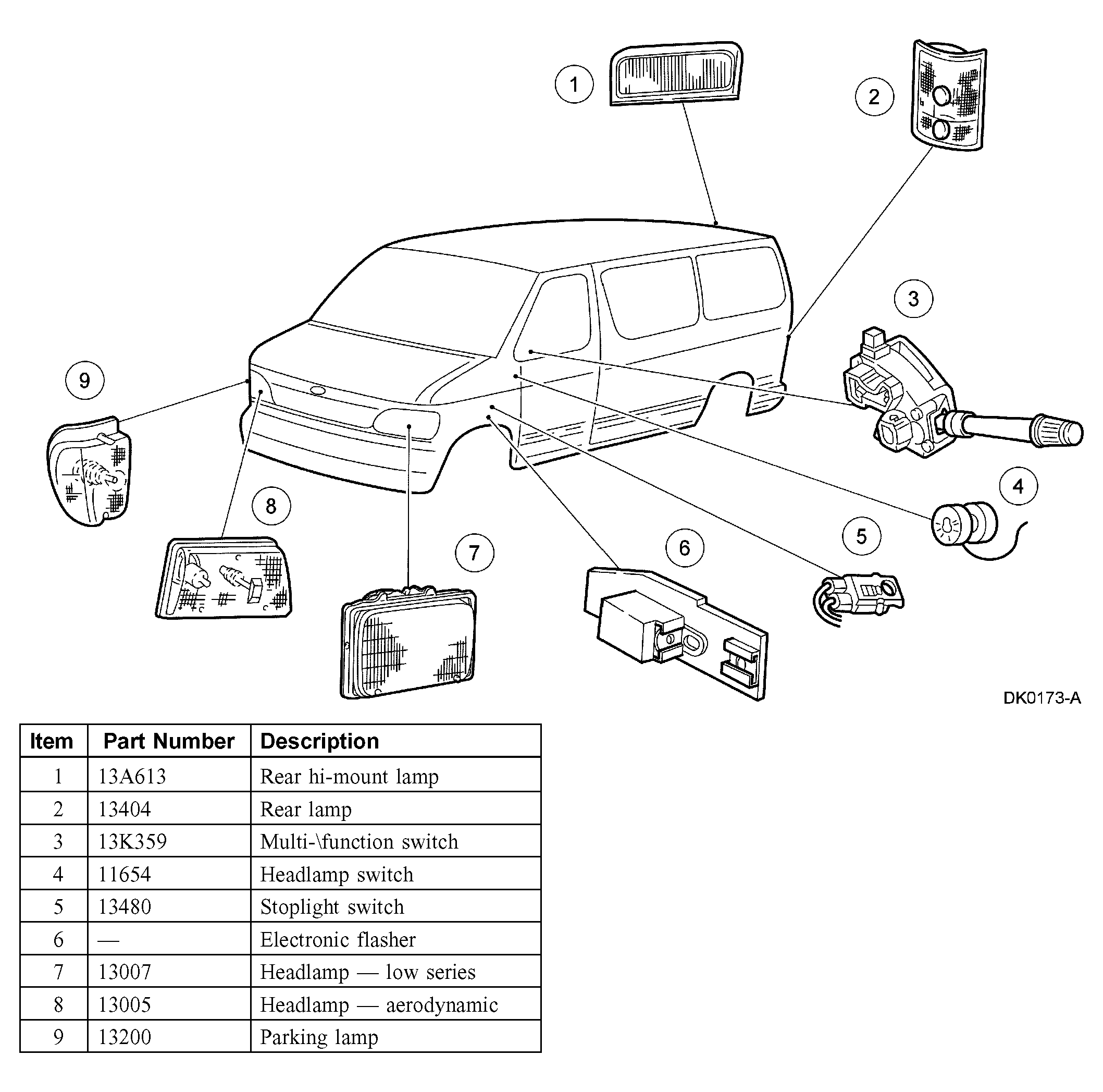

The headlamp switch (11654) is a three-position switch that controls the headlamps, exterior lamps, and panel lamps. Two different style headlamps are used. Aerodynamic style headlamps which use a halogen bulb, and type 2B rectangular sealed-beam (low series) style headlamps are used.
A multi-function switch (13K359) controls the turn signals, high beams, and hazard lamps. The stoplights switch (13480) controls the brake lamps, and rear hi-mount lamp.
