Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: On vehicles equipped with a CD6 audio unit, interrupting battery power within 30 seconds of repowering will damage the audio unit. To prevent audio unit damage, do not disconnect the battery (or audio unit), reconnect the battery (or audio unit), and then disconnect it again within 30 seconds.

Using the special tool, pull the audio unit out.
Remove the audio unit.
- Disconnect the antenna lead-in cable and the electrical connectors.

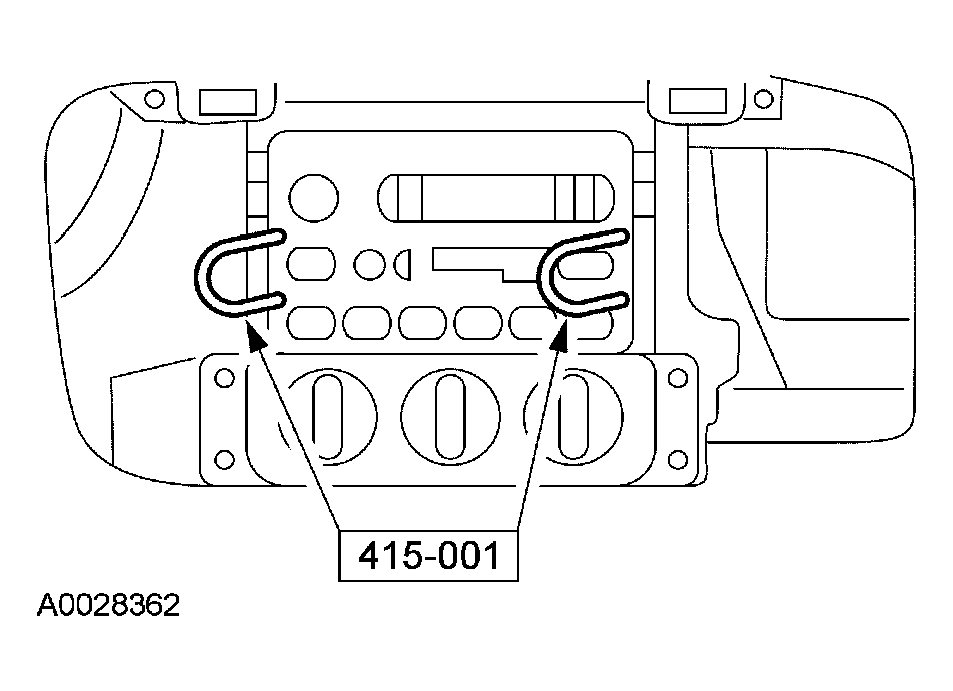

  Fig 1: Removing Audio Unit
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
