Vacuum Reservoir Tank: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator core housing assembly. For additional information, refer to HEATING & VENTILATION .
  2. Remove the vacuum reservoir tank.
    1. Remove the screw.
    2. Drill out the heat stake.
      • Remove the vacuum reservoir tank.

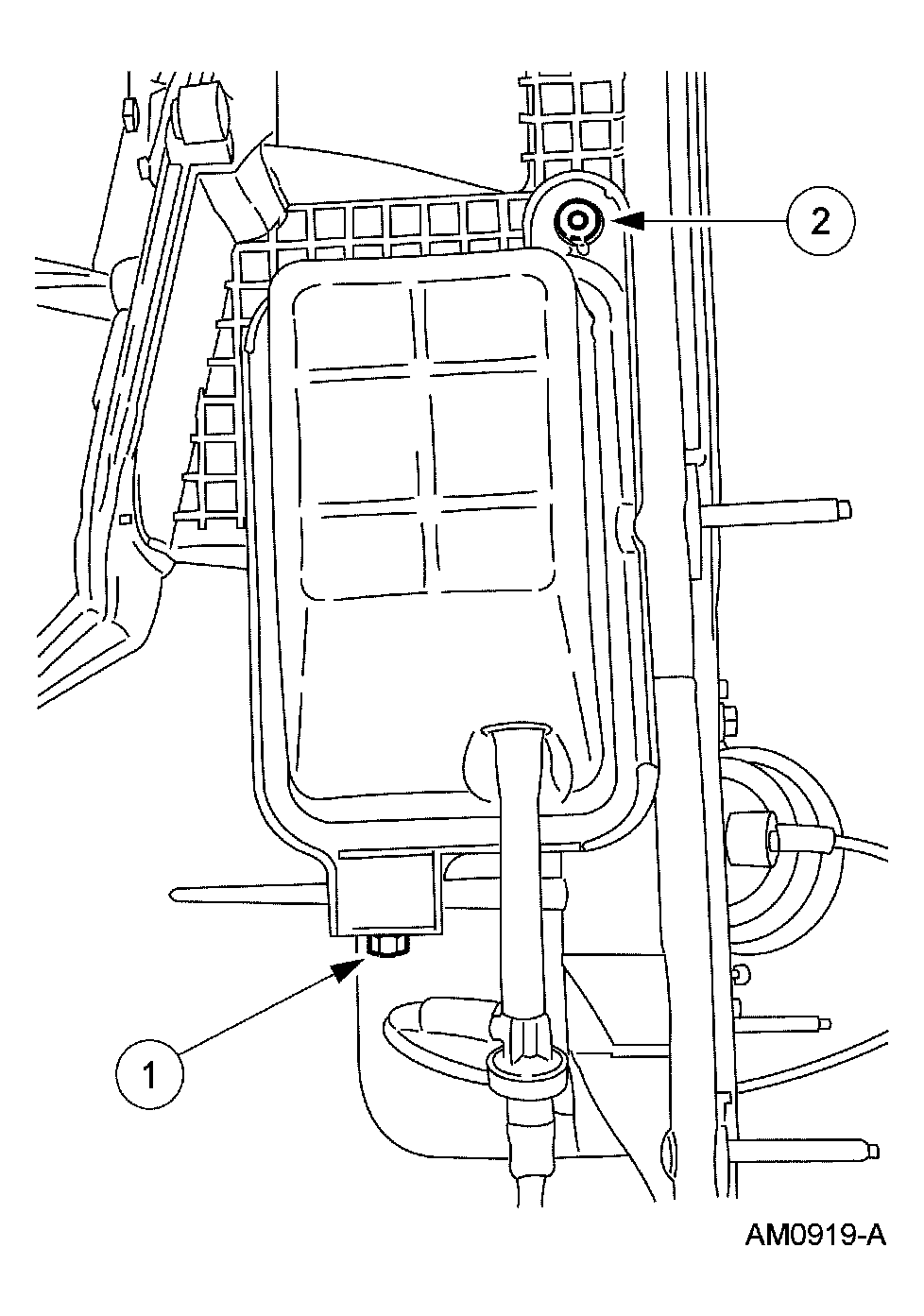

        Fig 1: Removing Vacuum Reservoir Tank
        G03890219Courtesy of FORD MOTOR CO.
  3. Disconnect the vacuum harness.
    Fig 2: Disconnecting Vacuum Harness
    G03890220Courtesy of FORD MOTOR CO.
