Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Remove the climate control switch knobs.
Remove the A/C-heater function selector switch.
1. Remove the screw.
2. Remove the A/C-heater function selector switch.

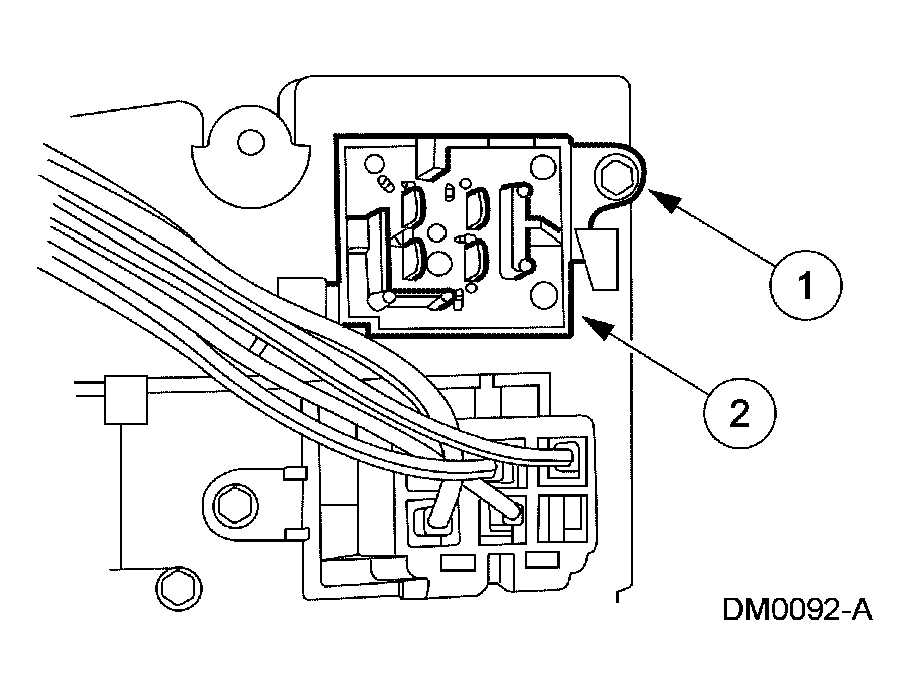

  Fig 1: Removing A/C-Heater Function Selector Switch
  Courtesy of FORD MOTOR CO.
Remove the temperature control switch.
1. Remove the screw.
2. Remove the temperature control switch.

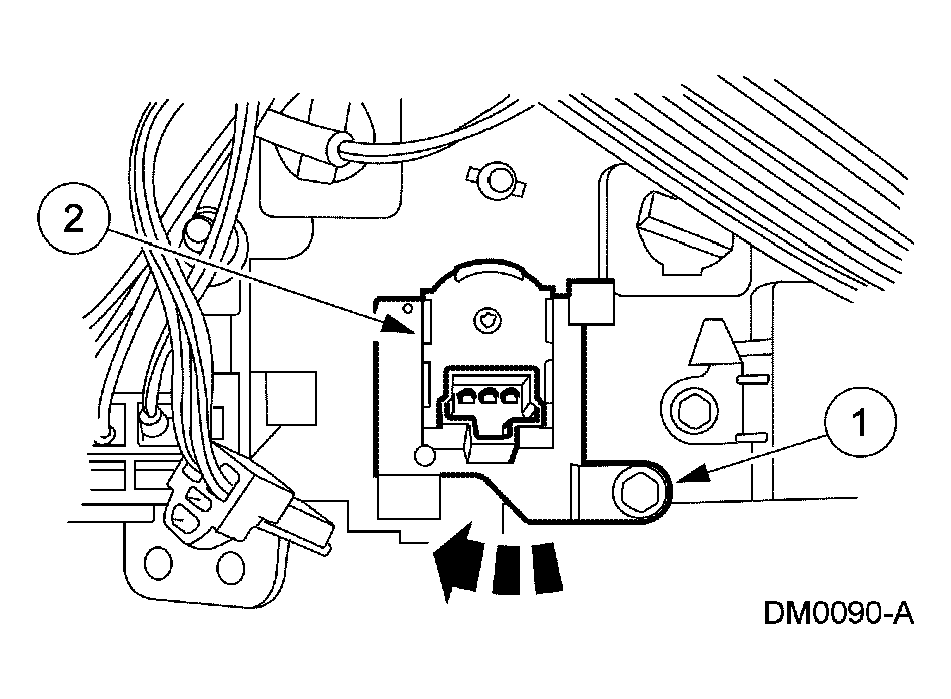

  Fig 2: Removing Temperature Control Switch
  Courtesy of FORD MOTOR CO.
Remove the heater blower motor switch (18578).
1. Remove the screw.
2. Remove the heater blower motor switch.

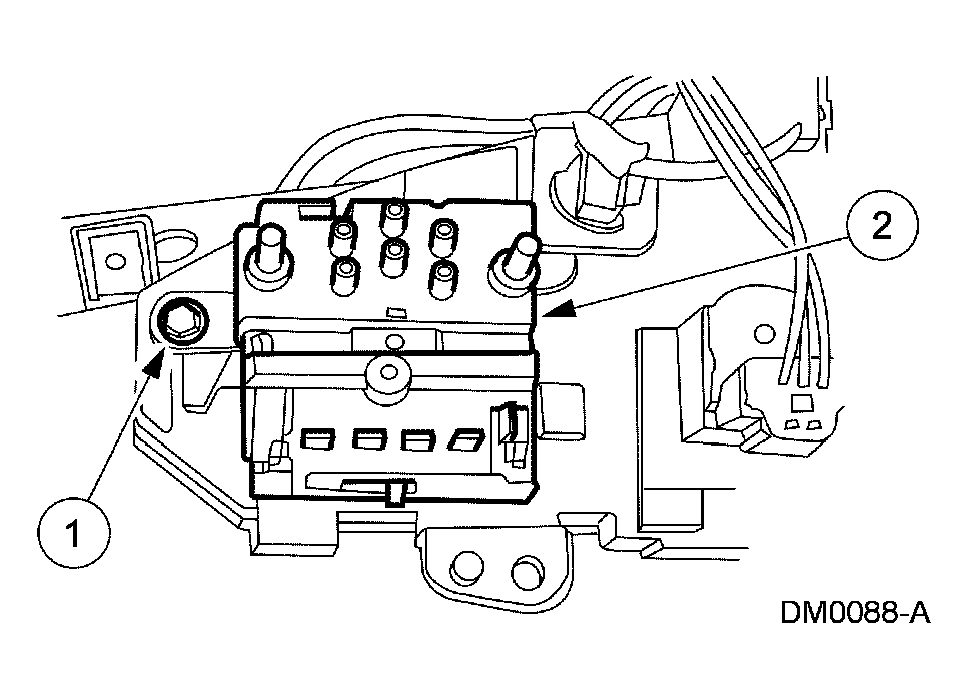

  Fig 3: Removing Heater Blower Motor Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
