Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

If equipped, remove the LH quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the blower motor (19805).
1. Disconnect the blower motor electrical connector.
2. Remove the blower motor housing cooling tube (19A786).
3. Remove the screws.
4. Remove the blower motor.

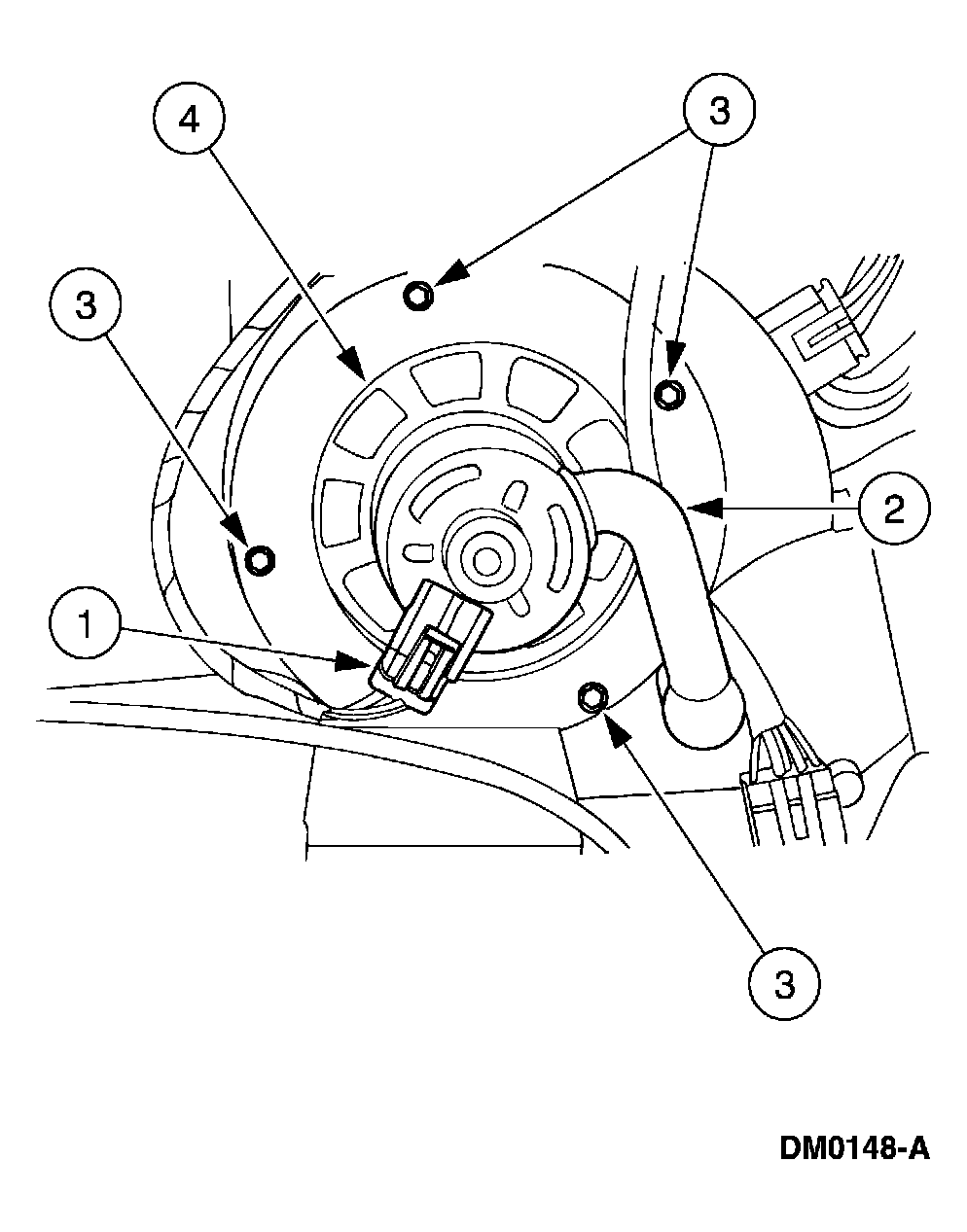

  Fig 1: Removing Blower Motor
  Courtesy of FORD MOTOR CO.

NOTE: Note the location of the blower motor wheel (18504) on the blower motor.

Remove the blower motor wheel.
1. Remove the retaining clip.
2. Remove the blower motor wheel.

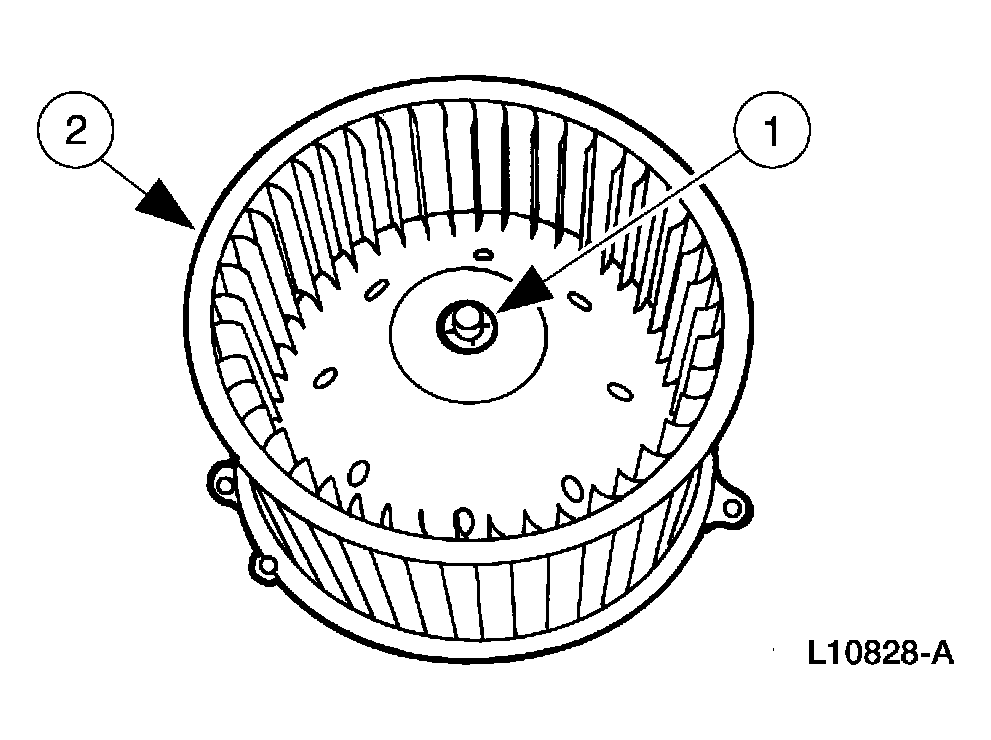

  Fig 2: Removing Blower Motor Wheel
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
