Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 4.6L, 5.4L or 6.8L engine

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the battery (10655).
Remove the battery tray.
1. Remove the screws.
2. Remove the battery tray.

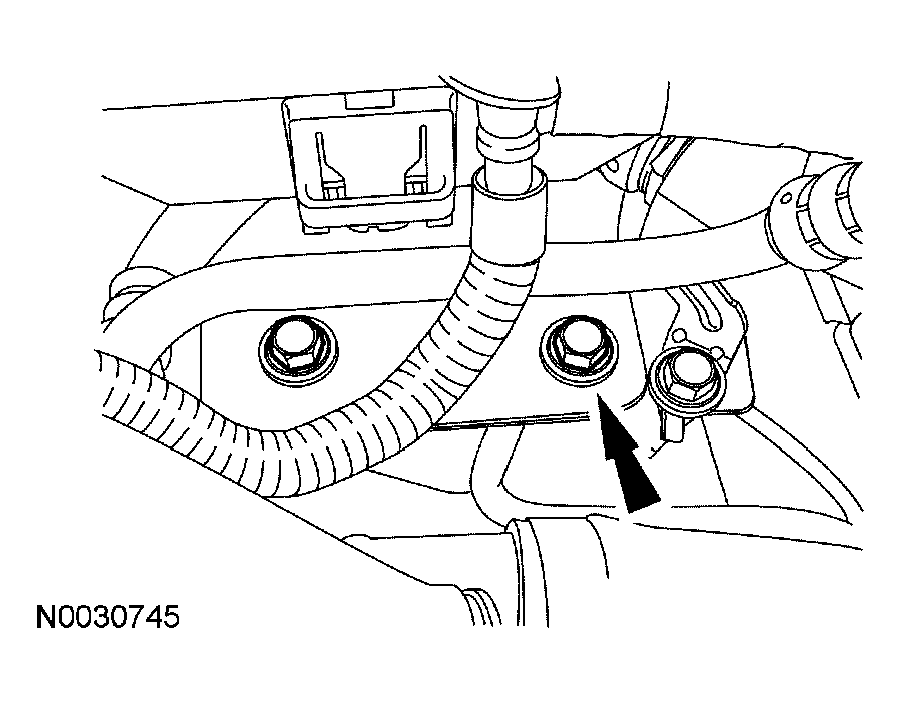

  Fig 1: Removing Battery Tray
  Courtesy of FORD MOTOR CO.

Vehicles equipped with 6.0L diesel engine

Move the junction block assembly.
- Remove the three screws.

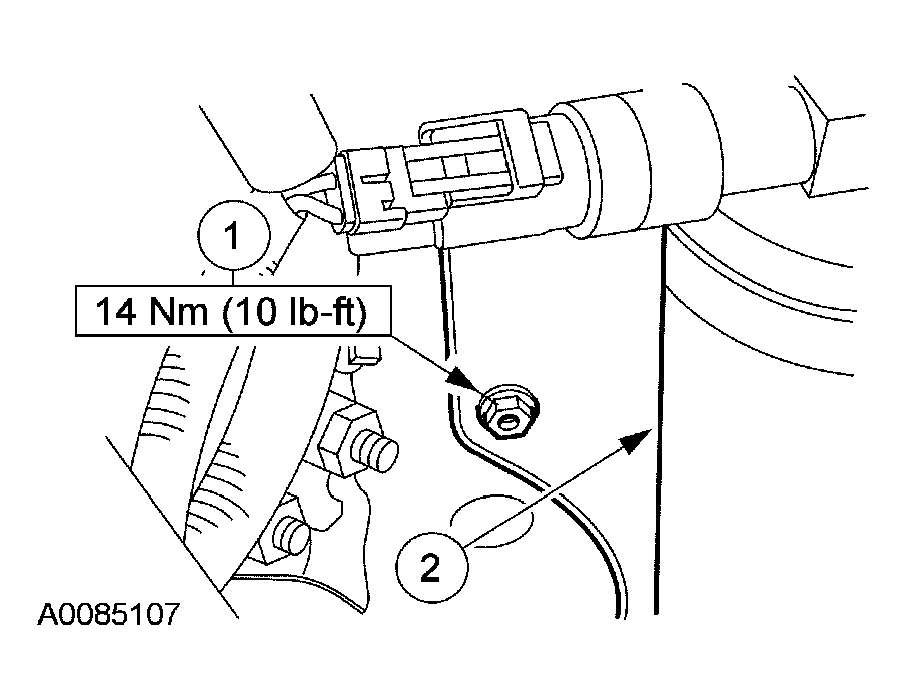

  Fig 2: Removing Screws
  Courtesy of FORD MOTOR CO.

Vehicles equipped with A/C

NOTE: This step must be carried out if the vehicle is equipped with an A/C system.

Move the suction accumulator (19C836).
1. Remove the three screws.
2. Move the suction accumulator.

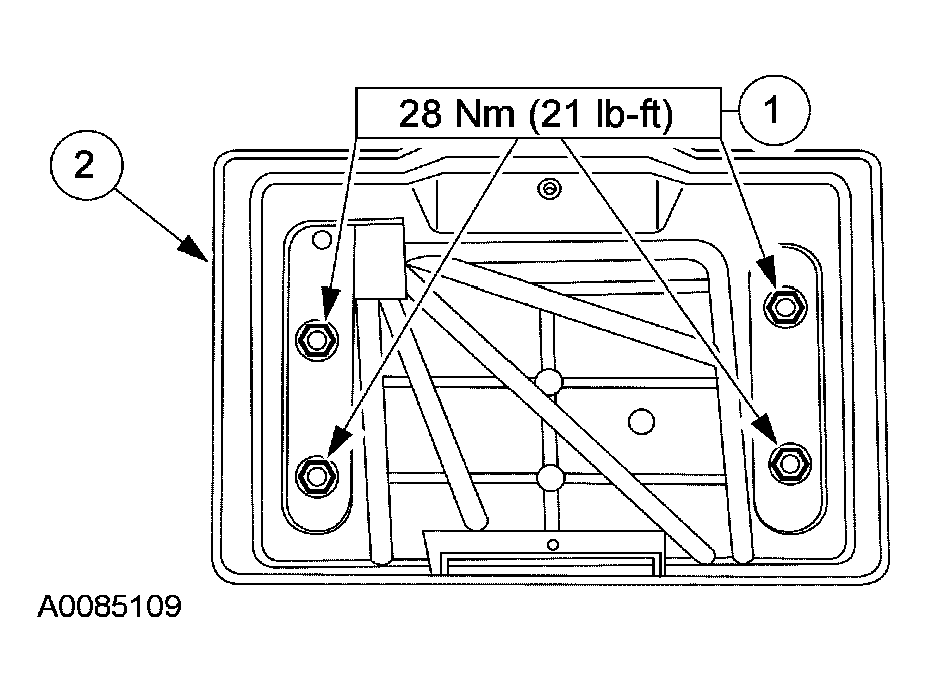

  Fig 3: Moving Suction Accumulator
  Courtesy of FORD MOTOR CO.

All vehicles

NOTE: To ease removal, align the flat spot on the blower motor mounting plate with the accumulator.

Remove the blower motor (19805).
1. Disconnect the blower motor electrical connector.
2. Remove the blower motor housing tube (19A786).
3. Remove four screws.
4. Remove the retaining clip.
5. Remove the blower motor.

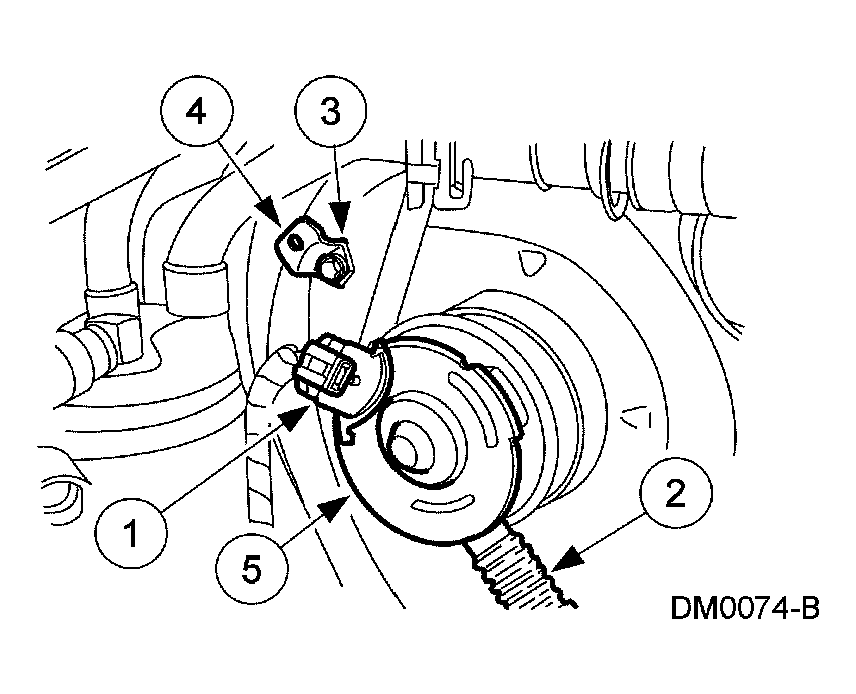

  Fig 4: Removing Blower Motor
  Courtesy of FORD MOTOR CO.

NOTE: Note the location of the blower motor wheel (18504) on the blower motor.

Remove the blower motor wheel.
1. Remove the retaining clip.
2. Remove the blower motor wheel.

  Fig 5: Removing Blower Motor Wheel
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
