  1. Remove the seal.
    Fig 1: Removing Seal
    G03890092Courtesy of FORD MOTOR CO.
  2. Remove the seals.

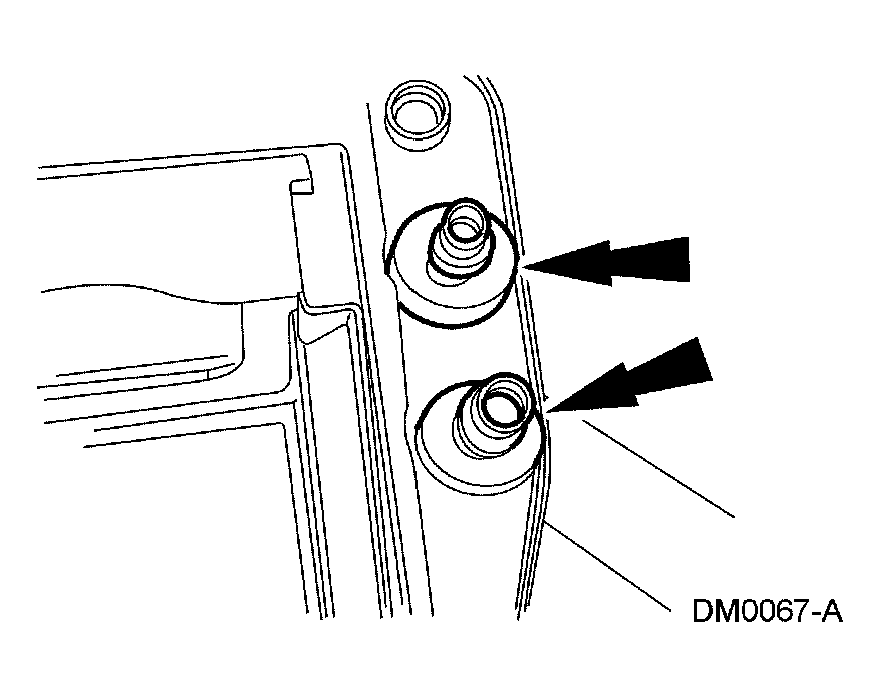

    Fig 2: Removing Seals
    G03890093Courtesy of FORD MOTOR CO.
  3. Drain the heater core.
  4. Remove the temperature blend door actuator motor (19E616).
    1. Remove the screws.
    2. Remove the temperature blend door actuator motor.
      Fig 3: Removing Temperature Blend Door Actuator Motor
      G03890094Courtesy of FORD MOTOR CO.
  5. To assemble, reverse the disassembly procedure.
