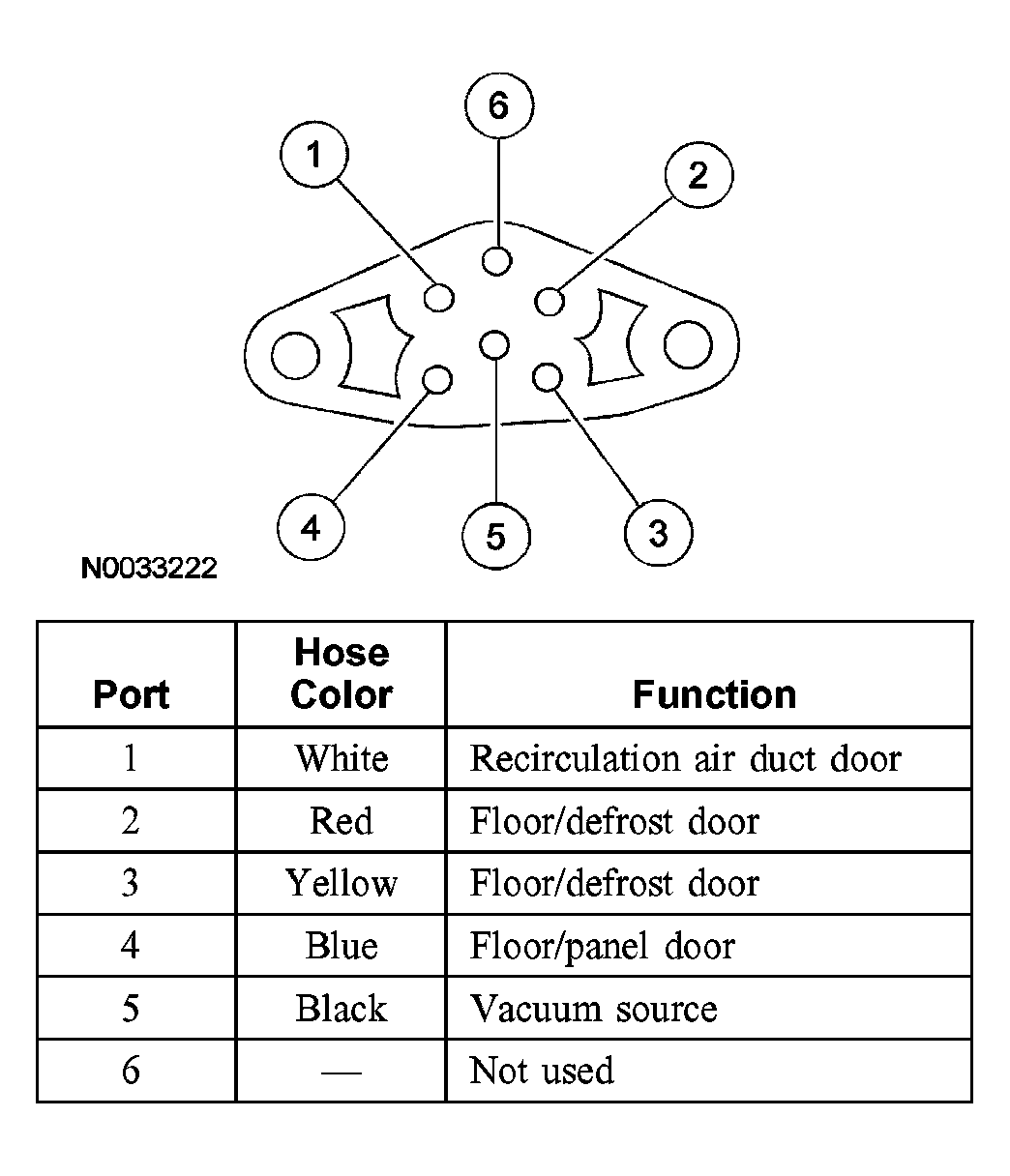

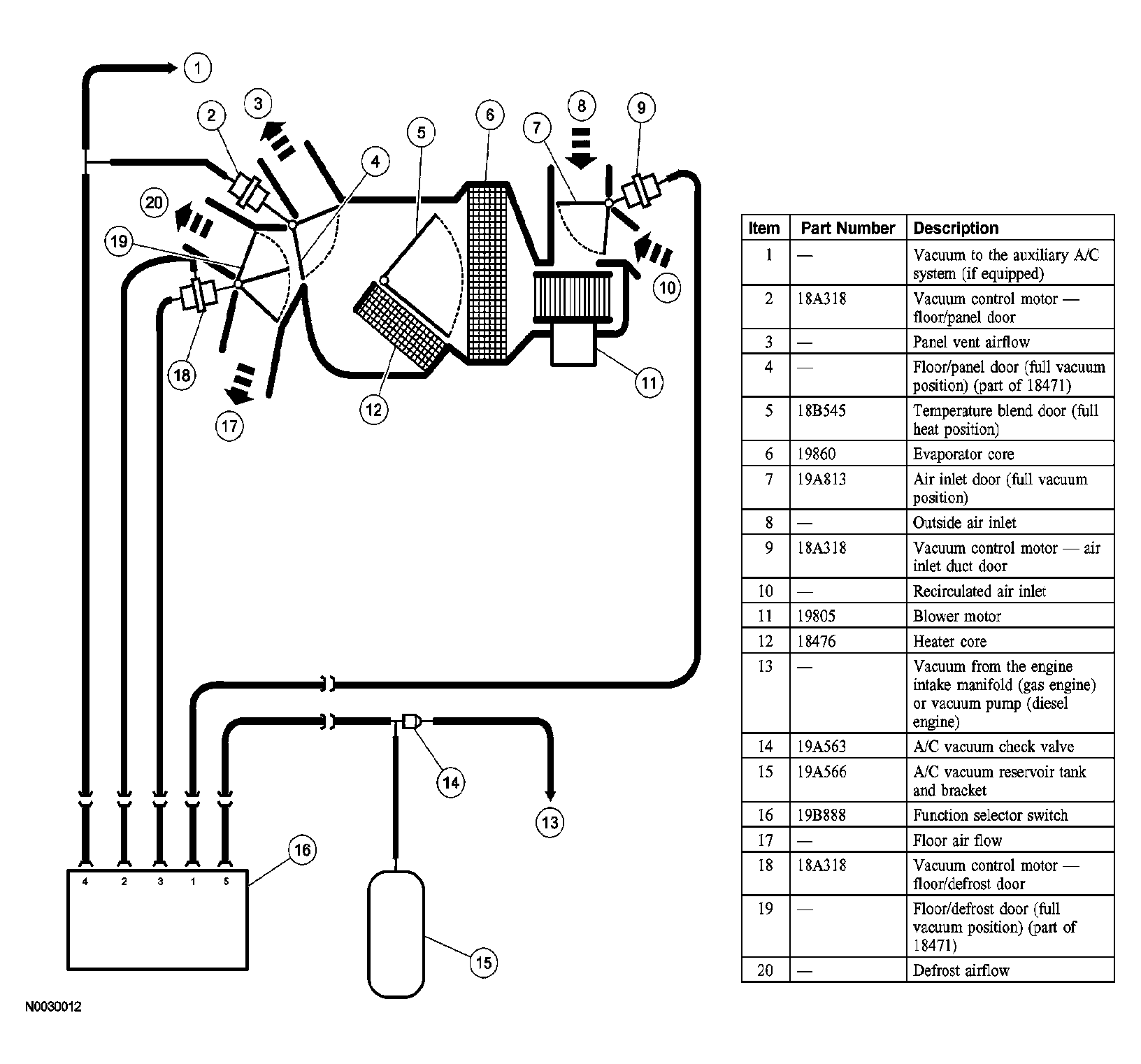

HVAC System Vacuum Connector End View & Vacuum Schematic
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
VACUUM APPLICATION CHART
| Switch Port | Color | Function | Function Selector Switch Position | ||||||
|---|---|---|---|---|---|---|---|---|---|
| MAX A/C | NORM A/C | VENT | OFF | FLOOR | MIX | DEF | |||
| 1 | White | Recirc/fresh | V | NV | NV | V | NV | NV | NV |
| 2 | Red | Floor/defrost | V | V | V | V | V | NV | NV |
| 3 | Yellow | Floor/defrost | V | V | V | V | V | V | NV |
| 4 | Blue | Floor/panel | V | V | V | NV | NV | NV | NV |
| 5 | Black | Vacuum source | V | V | V | V | V | V | V |
| V = Vacuum | |||||||||
| NV = No Vacuum | |||||||||
