Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The accelerator pedal and sensor assembly is a non-adjustable, calibrated unit and must be handled with care.
    NOTE: The red clip must be pulled out before disconnecting the electrical connector.

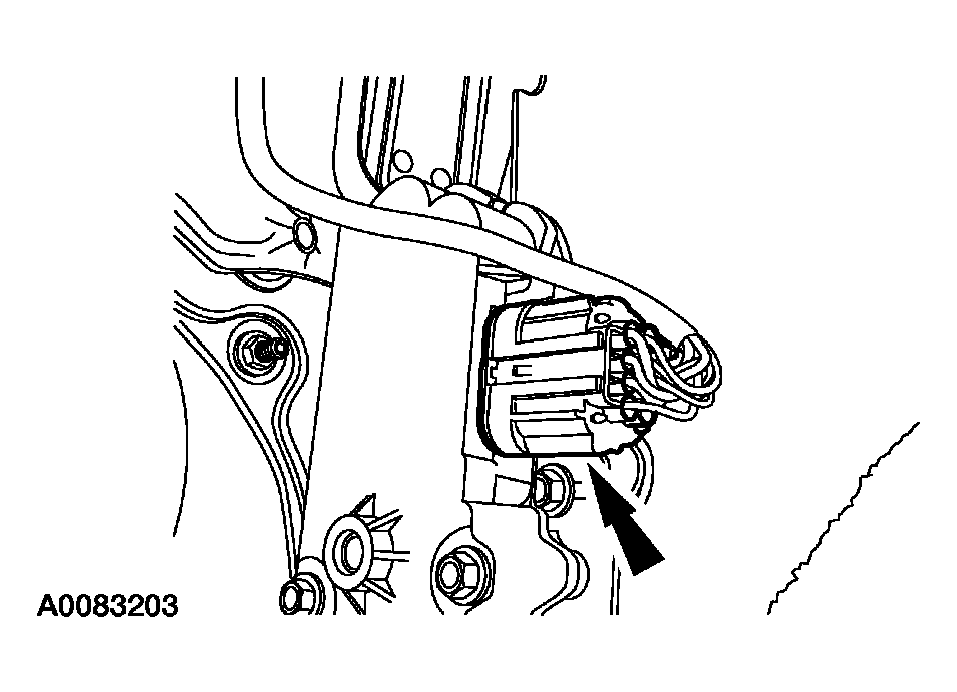

    Fig 1: Disconnecting Accelerator Pedal Position Sensor Electrical Connector
    G03889832Courtesy of FORD MOTOR CO.
  1. Disconnect the accelerator pedal position sensor electrical connector.
  2. Remove the two bolts and slide the accelerator pedal and sensor assembly up and off the anchor bolt.

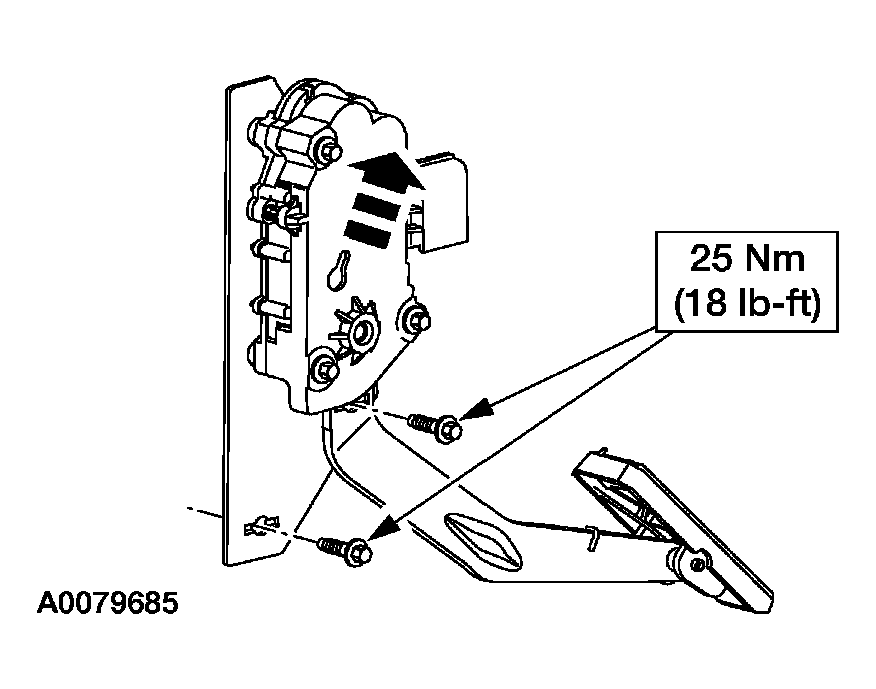

    Fig 2: Sliding Accelerator Pedal And Sensor Assembly
    G03889833Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
