Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the RH cowl side trim panel.

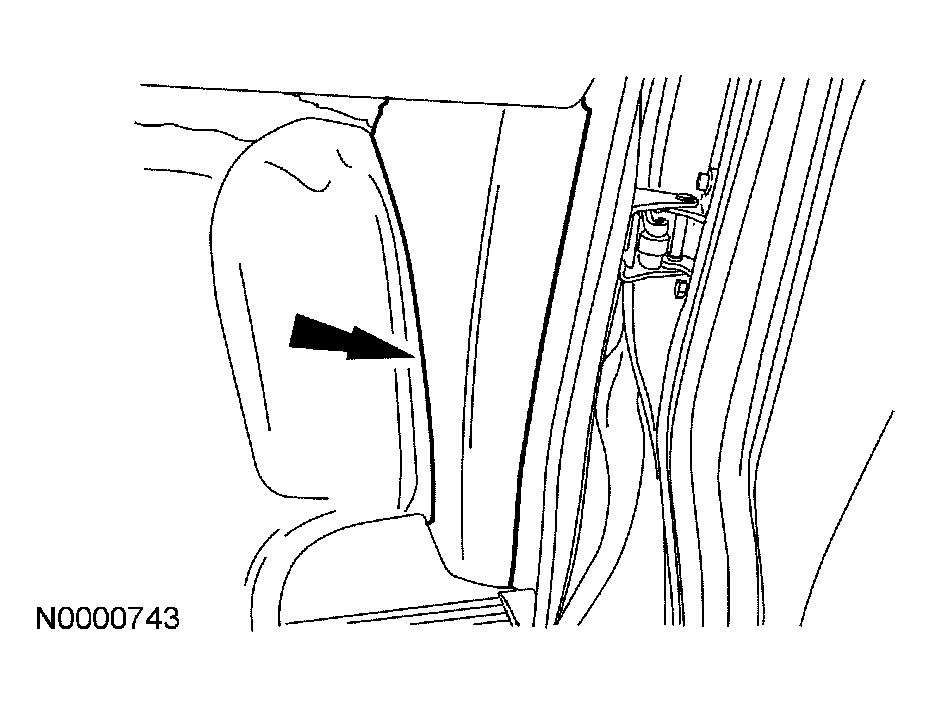

    Fig 1: Removing RH Cowl Side Trim Panel
    G03889818Courtesy of FORD MOTOR CO.
  3. Disconnect the inertia fuel shutoff (IFS) switch electrical connector. Remove the bolts and IFS switch.

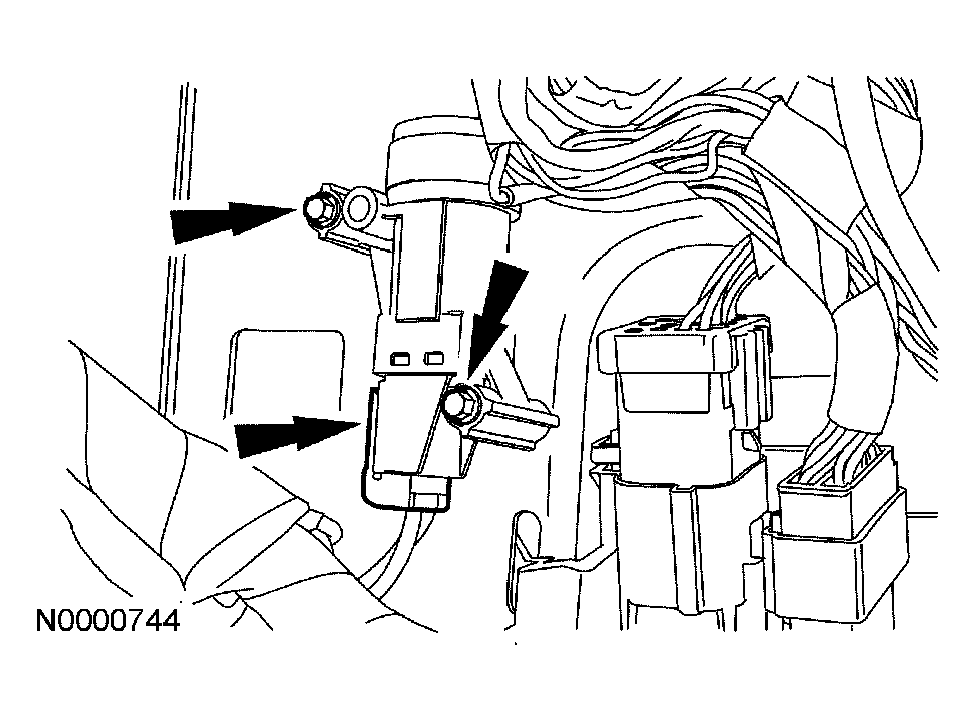

    Fig 2: Disconnecting Inertia Fuel Shutoff (IFS) Switch Electrical Connector
    G03889819Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
