Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.
NOTE: The 55 gallon aft-of-axle fuel tank is shown; the 37 gallon aft-of-axle fuel tank is similar.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Release the fuel pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Drain the fuel tank. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

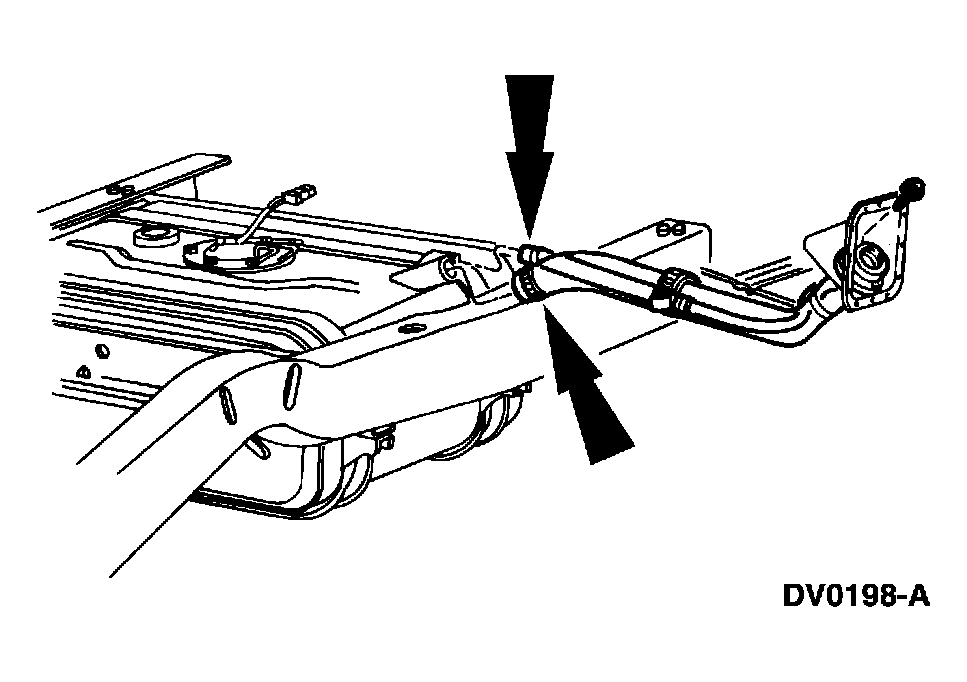

    Fig 1: Disconnecting Fuel Tank Filler
    G03889801Courtesy of FORD MOTOR CO.
    5. NOTE: In this illustration, the vehicle body is shown removed for clarity. See Fig 2.
  5. Disconnect the fuel tank filler pipe and the filler vent tube from the fuel tank.
  6. Position the jack under the fuel tank.
  7. Remove the bolts.

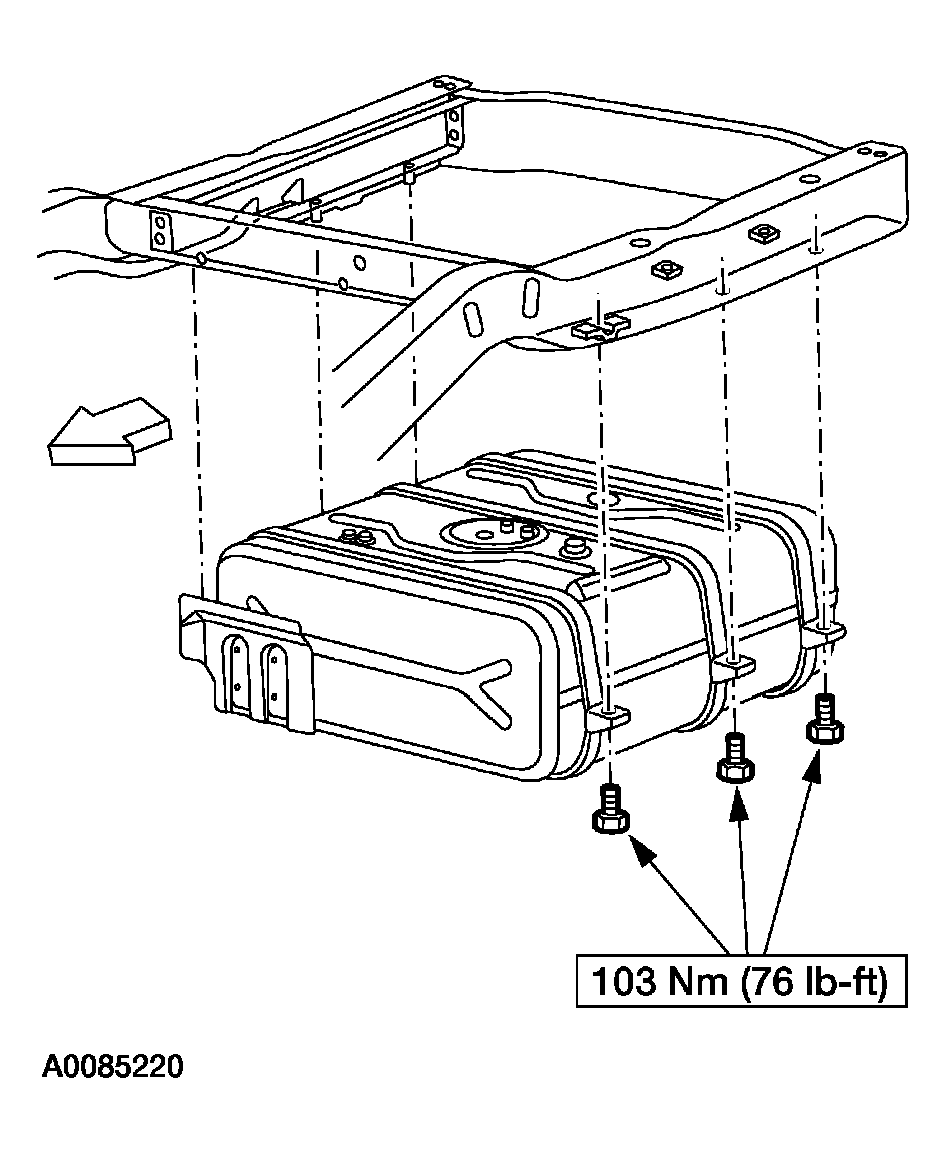

    Fig 2: Removing Bolts
    G03889802Courtesy of FORD MOTOR CO.
  8. Remove the nuts.

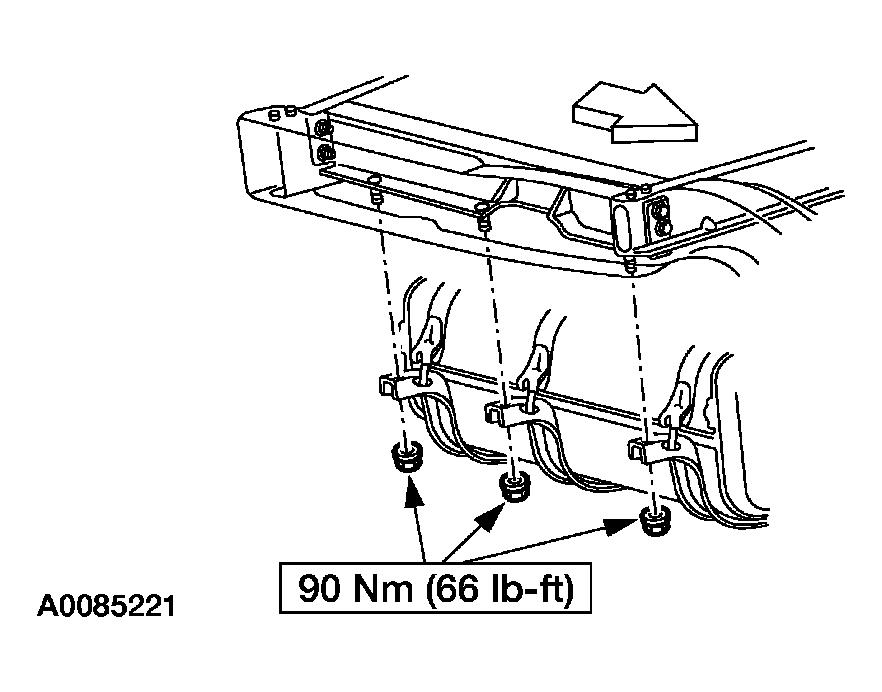

    Fig 3: Removing Nuts
    G03889803Courtesy of FORD MOTOR CO.
  9. Remove the fuel tank support straps.
  10. Partially lower the fuel tank.

    11. Gasoline only

  11. Disconnect the evaporative emission (EVAP) tube(s) from the fuel vapor/grade vent valve.
    Fig 4: Disconnecting Evaporative Emission (EVAP) Tube(S) From Fuel Vapor/Grade Vent Valve
    G03889804Courtesy of FORD MOTOR CO.
  12. Disconnect the fuel pressure electrical connector.
    Fig 5: Disconnecting Fuel Pressure Electrical Connector
    G03888348Courtesy of FORD MOTOR CO.
  13. Disconnect the EVAP tube from the fuel pump.

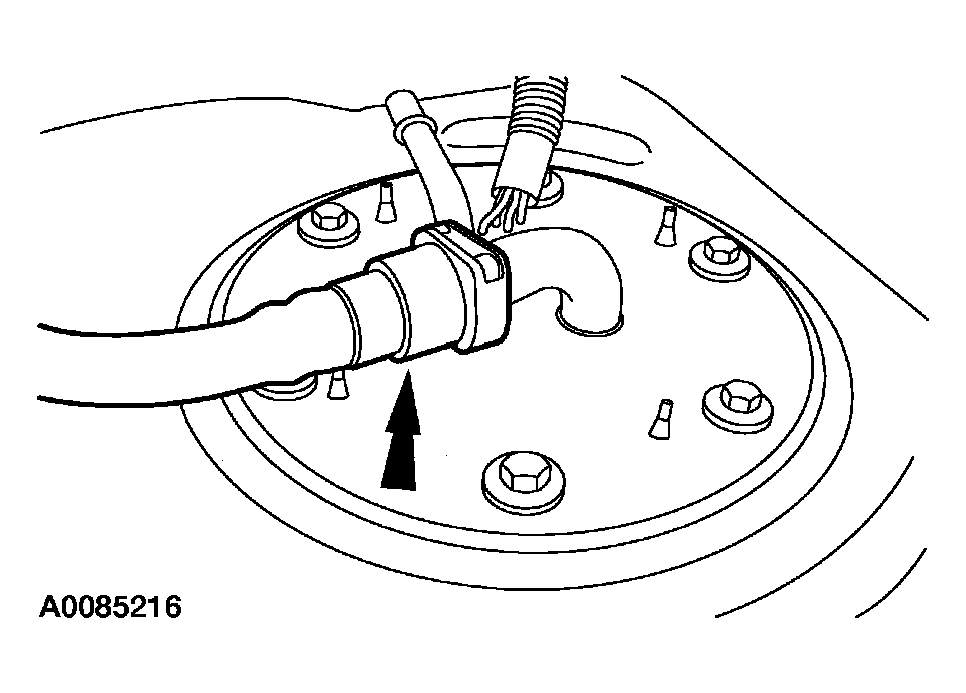

    Fig 6: Disconnecting EVAP Tube From Fuel Pump
    G03889806Courtesy of FORD MOTOR CO.

    14. All vehicles

  14. Disconnect the fuel tube spring lock coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
    Fig 7: Disconnecting Fuel Tube Spring Lock Coupling
    G03889796Courtesy of FORD MOTOR CO.
  15. Disconnect the fuel pump and fuel tank sending unit electrical connector.
    Fig 8: Disconnecting Fuel Pump And Fuel Tank Sending Unit Electrical Connector
    G03889808Courtesy of FORD MOTOR CO.
  16. Lower the fuel tank.
  17. To install, reverse the removal procedure.
