Fuel Conditioning Module - 6.0L Diesel: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel filter cover and drain the fuel from the housing.

Fig 1: Removing Fuel Filter Cover
Courtesy of FORD MOTOR CO.
Remove and discard the fuel filter and O-ring seal.

Fig 2: Discarding Fuel Filter And O-Ring Seal
Courtesy of FORD MOTOR CO.

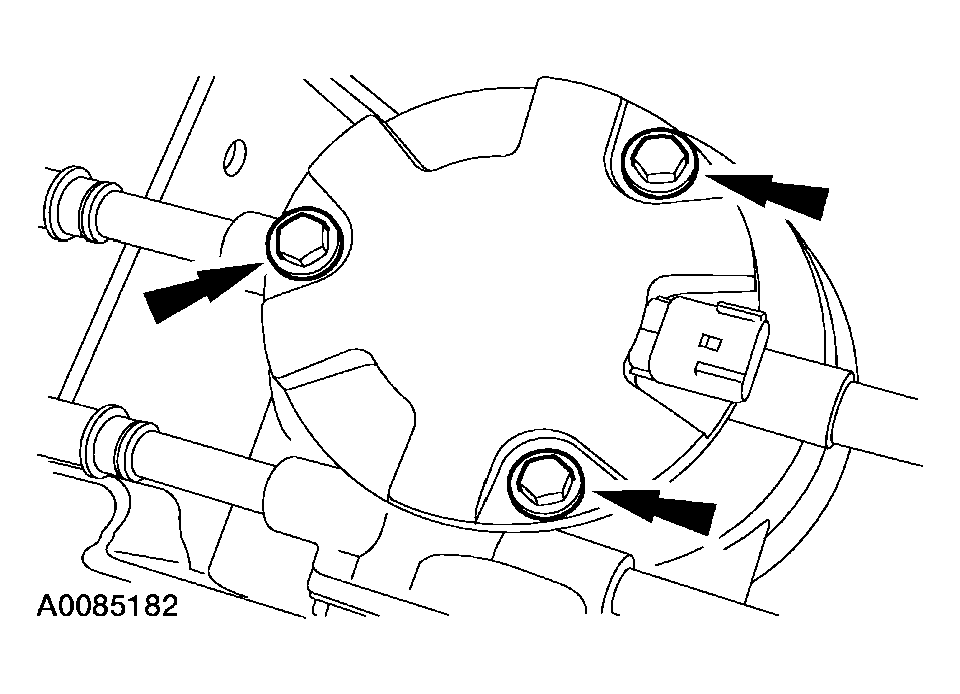

Remove the bolts and the fuel pump.
- Remove and discard the O-ring seals.

  Fig 3: Discarding O-Ring Seals
  Courtesy of FORD MOTOR CO.

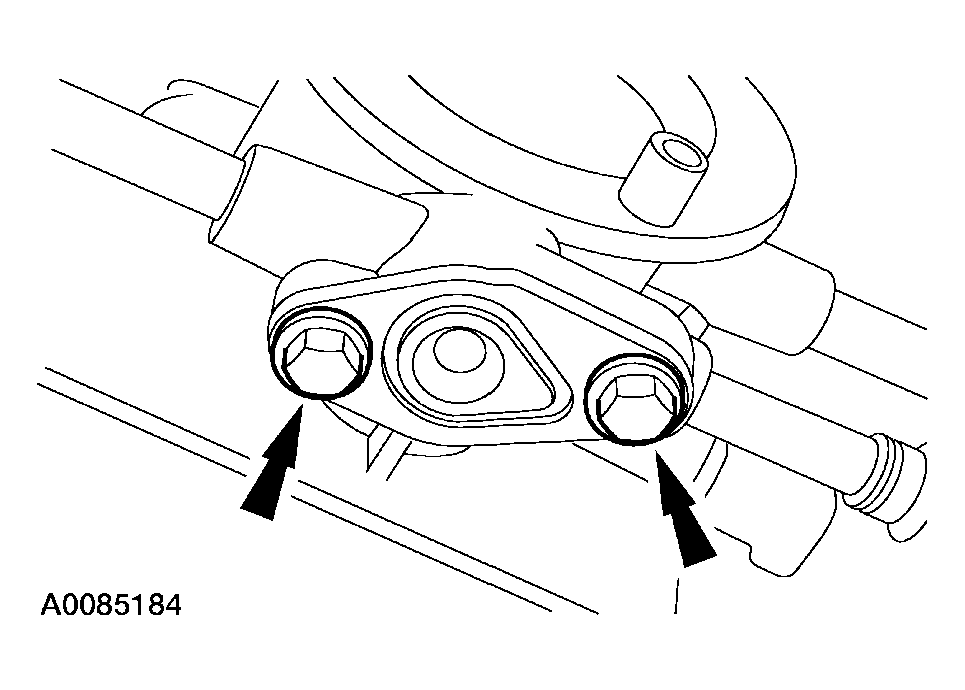

Remove the bolts and the pressure relief valve.
- Remove and discard the O-ring seals.

  Fig 4: Removing Bolts Of Pressure Relief Valve
  Courtesy of FORD MOTOR CO.

CAUTION: Do not remove the heater pan or damage to the fuel conditioning housing will occur.

Fig 5: Removing Bolts Of Fuel Conditioning Mounting Bracket

Courtesy of FORD MOTOR CO.

Remove the bolts and the fuel conditioning mounting bracket.
