Fuel Conditioning Module - 6.0L Diesel: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the fuel conditioning module mounting bracket and bolts.

Fig 1: Installing Fuel Conditioning Module Mounting Bracket And Bolts
Courtesy of FORD MOTOR CO.
Install new O-ring seals on the fuel pump and lubricate with clean engine oil.

Fig 2: Installing O-Ring Seals On Fuel Pump
Courtesy of FORD MOTOR CO.
Install the fuel pump and mounting bolts.

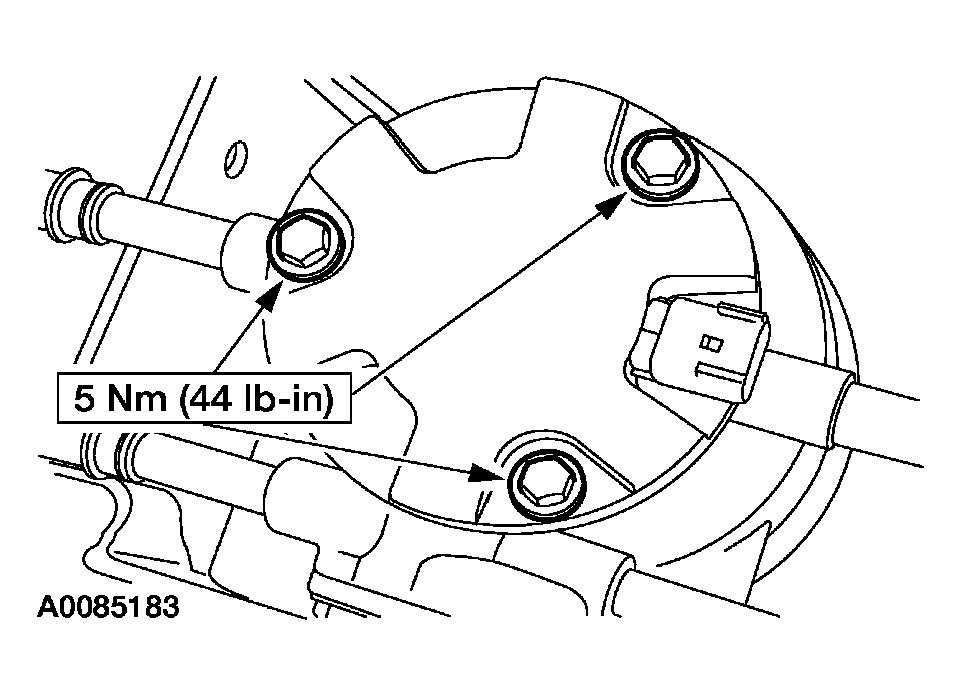

Fig 3: Installing Fuel Pump Mounting Bolts
Courtesy of FORD MOTOR CO.
Install new O-ring seals on the relief valve cover and apply clean engine oil.

Fig 4: Installing O-Ring Seals On Relief Valve Cover
Courtesy of FORD MOTOR CO.
Install the pressure relief valve and bolts.

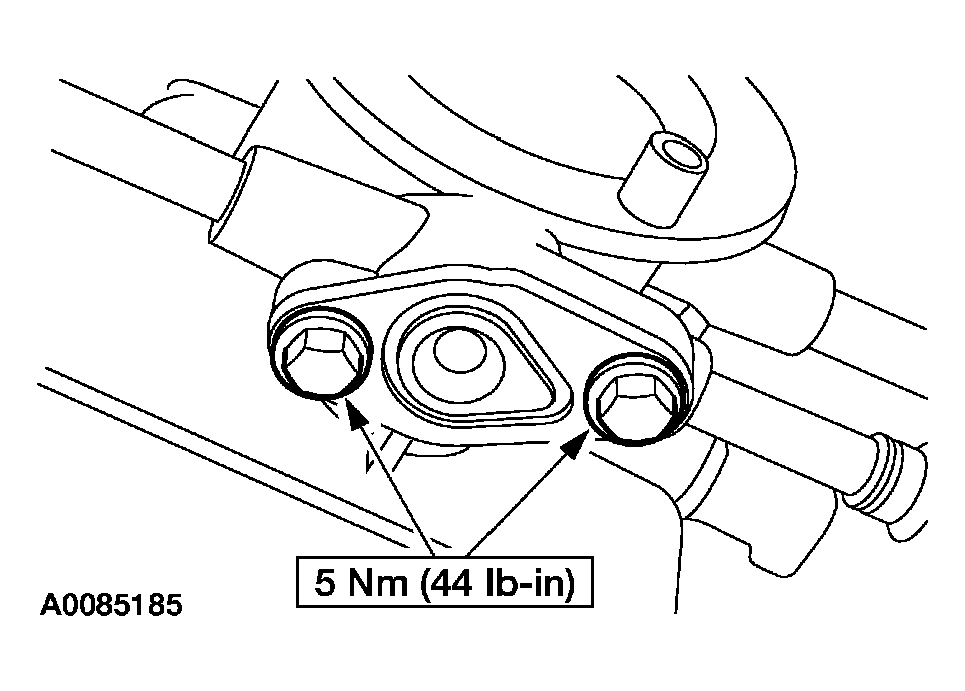

Fig 5: Installing Pressure Relief Valve Bolts
Courtesy of FORD MOTOR CO.
Install a new O-ring seal and fuel filter on the fuel filter cover. Lubricate the O-ring seal with clean engine oil.

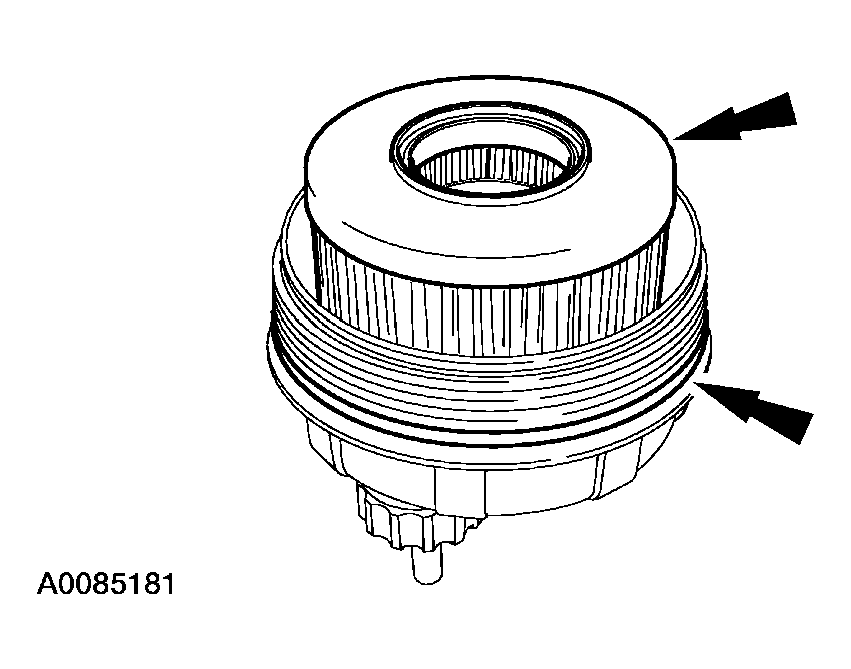

Fig 6: Installing Fuel Filter On Fuel Filter Cover
Courtesy of FORD MOTOR CO.
Install the fuel filter cover.
- Tighten the fuel filter cover to 13 Nm (10 lb-ft).
- Rotate the fuel filter cover until the electrical connectors line up.

  Fig 7: Installing Fuel Filter Cover
  Courtesy of FORD MOTOR CO.
